Raven AccuBoom Parallel Installation Manual

Hagie sprayers with 4600 console
Hide thumbs Also See for AccuBoom:

Advertisement

Quick Links

Download this manual
Hagie Sprayers with 4600 Console

Advertisement

loading
Need help?

Need help?

Do you have a question about the AccuBoom and is the answer not in the manual?

Questions and answers

Related Manuals for Raven AccuBoom

Summary of Contents for Raven AccuBoom

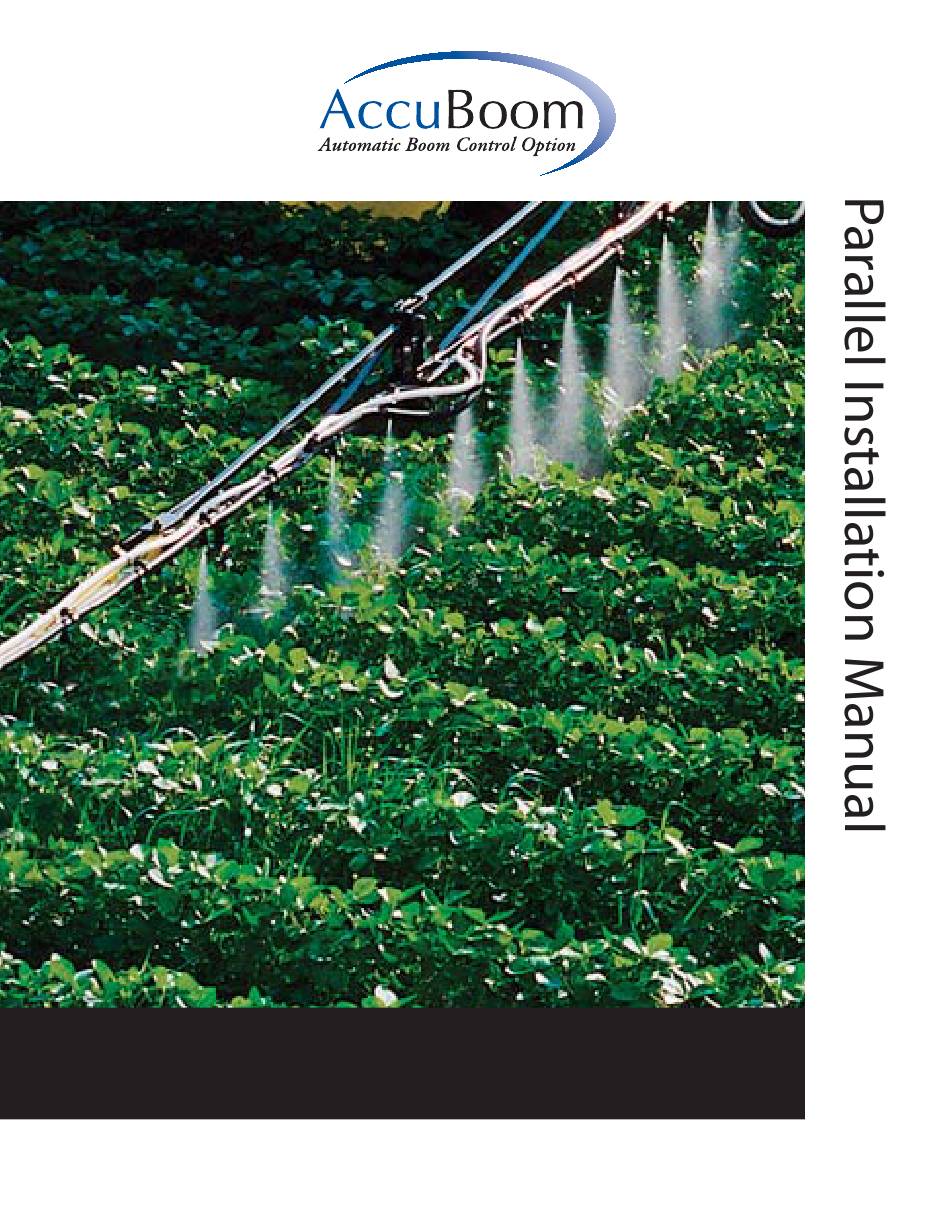

  • Page 1 Hagie Sprayers with 4600 Console...

  • Page 3: Components Needed

    AccuBoom system. See the Viper Installation and Operators Manual for instructions on setting up the software and using the AccuBoom system. You will also need a valid AccuBoom Control Activation Key for your Viper system in order to activate the AccuBoom system.
  • Page 4 Hagie Sprayers with 4600 Console Series Parallel AccuBoom Installation and Operators Manual Notes:...
  • Page 5 H A P T E R N S T A L L A T I O N Use the following procedure to properly install the AccuBoom system on a Hagie sprayer using a 4600 Raven console connected to a Raven Viper: 1.
  • Page 6 Hagie Sprayers with 4600 Console Series Parallel AccuBoom Installation and Operators Manual 2. Connect the Parallel AccuBoom Cable (P/N 115-0171-630) to the control switch harness: a. Remove the two knobs securing the Hagie control console in place and swing the control console open.
  • Page 7 Manual # 016-0171-030 Rev A 03/06 3. Connect the Parallel AccuBoom Cable (P/N 115-0171-630) to the Viper communication port. Comm Port Connection 4. Mount the Parallel AccuBoom node (P/N 063-0172-517) in the cab.
  • Page 8 Hagie Sprayers with 4600 Console Series Parallel AccuBoom Installation and Operators Manual 5. Connect the corresponding gray and black connectors from the Parallel AccuBoom cable (P/N 115-0171-630) to the Parallel AccuBoom node (P/N 063-0172-517). 6. The Parallel AccuBoom hardware installation is now complete. Install the Activation Key on the Viper system and the AccuBoom system is ready for operation.
  • Page 9 RAVEN INDUSTRIES LIMITED WARRANTY WHAT IS COVERED? This warranty covers all defects in workmanship or materials in your Raven Flow Control Product under normal use, maintenance, and service. HOW LONG IS THE COVERAGE PERIOD? This warranty coverage runs for 12 months from the purchase date of your Raven Flow Control Product.
  • Page 10 Raven Industries Toll Free 800-243-5435 Flow Controls Division Fax 605-331-0426 P.O. Box 5107 www.ravenprecision.com Sioux Falls, SD 57117-5107 fcdinfo@ravenind.com...
