1.3 OPERATING ELEMENTS AND CONNECTIONS

1 2

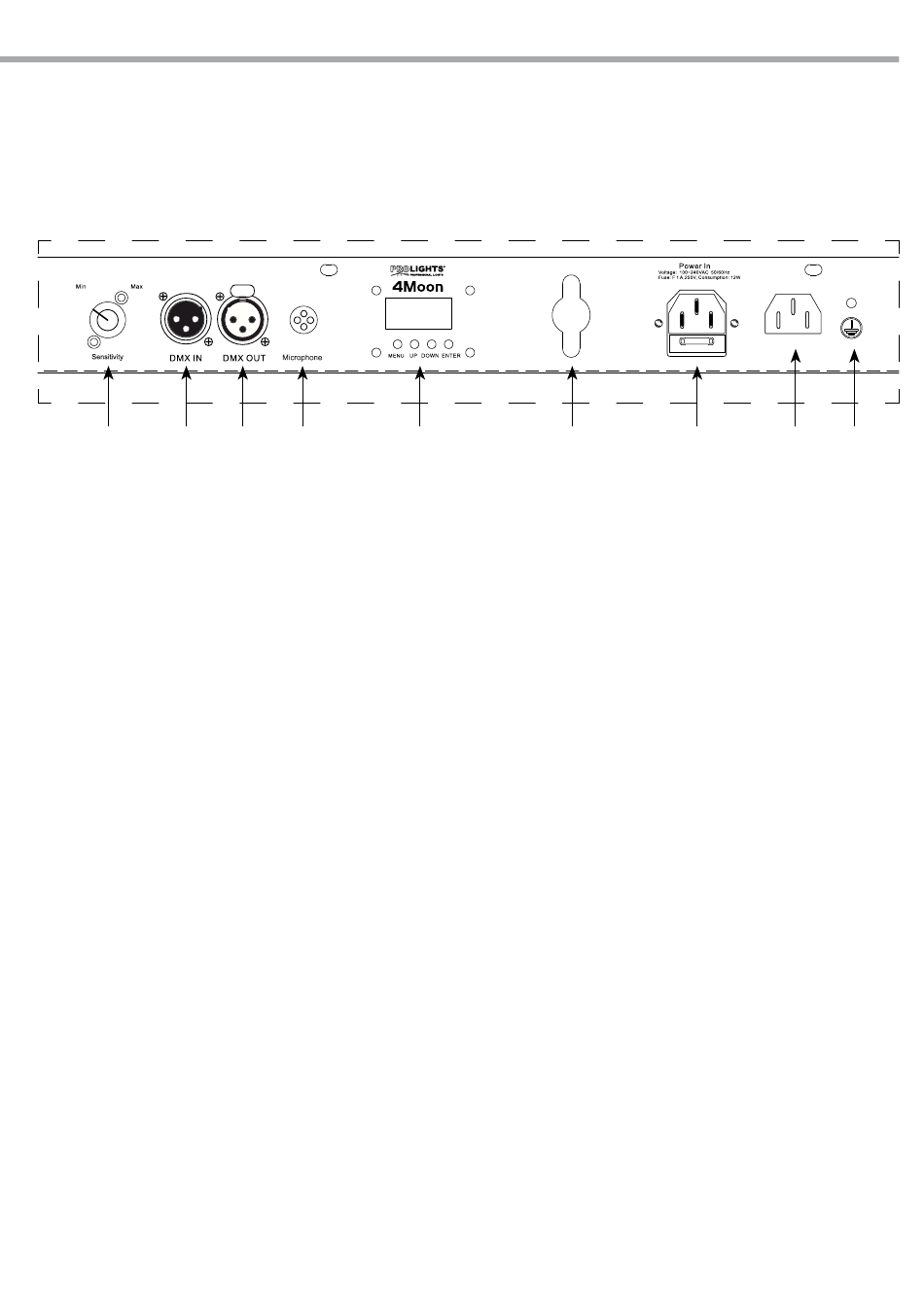

Rear panel - lighting bar
4MOON - 4MOONCL
3 4
1. CONTROL SENSITIVITY for the sensitivity of
response in case of music control via the
internal microphone
2. DMX IN (3-pole XLR):
1 = ground, 2 = DMX -, 3 = DMX +
3. DMX OUT (3-pole XLR):
1= ground, 2 = DMX -, 3 = DMX +
4. MICROPHONE to control the show by the
external audio signal.
5. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
6. TRIPOD ATTACHMENT KNOB
7. POWER IN mains plug for connection to a
socket (100-240V 50/60Hz) via the supplied
mains cable. The support for the mains fuse
is located near the mains plug. Only replace a
blown fuse by one of the same type.
8. POWER OUT
9. GND POINT grounding the fixture to the earth
5 6 7 8 9
Fig.1
