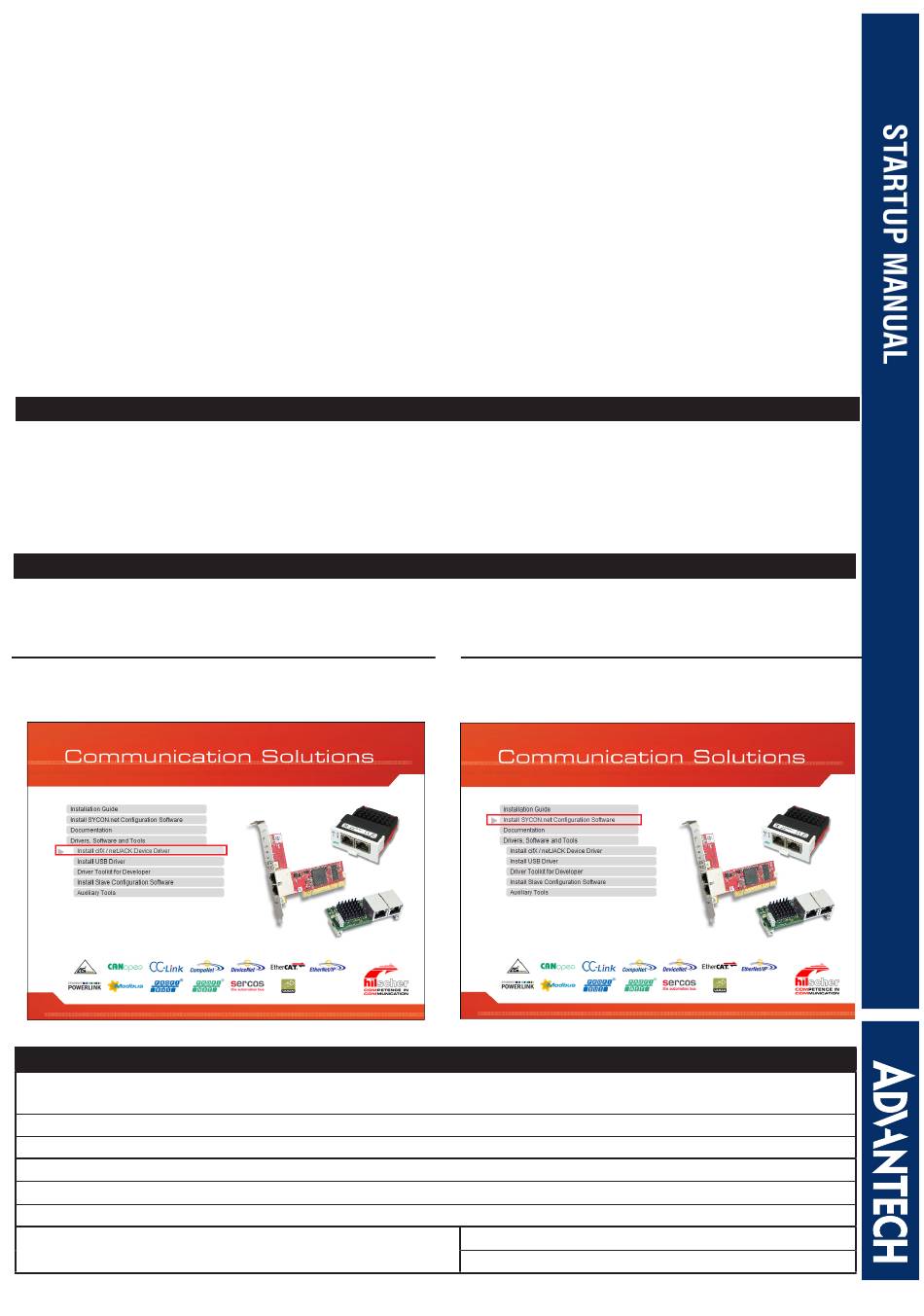

Advantech PCM-26D1DB Startup Manual

PCM-26D1DB
PCM-26R2EC
PCM-26R2EI
PCM-26R2S3
PCM-26R2PN
PCM-26R2PL
This manual provides the brief steps of firmware installation. For more support documentation refer to the DVD
which included in the package from Hilscher.

1. Hardware Installation

a. Before beginning installation take the necessary safety precautions.
b. Open the cabinet of the PC or the connecting device.
c. Plug in and mount the cifx card.
d. Close the cabinet
e. Connect power to the PC or connecting device and switch it on.

2. Driver and Software Installation

Enter the Communication Solutions DVD in the PC and follow to the instructions of the installation wizard, to
install the driver.

2.1 cifX Driver Installation

ƒ Click Install cifX / netJACK Device Driver
Notes
For more information on this and other Advantech
products, visit our websites at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com.tw/eservice
This manual is for PCM-26XXXX
Part No: 2003P20010
1 Startup Manual

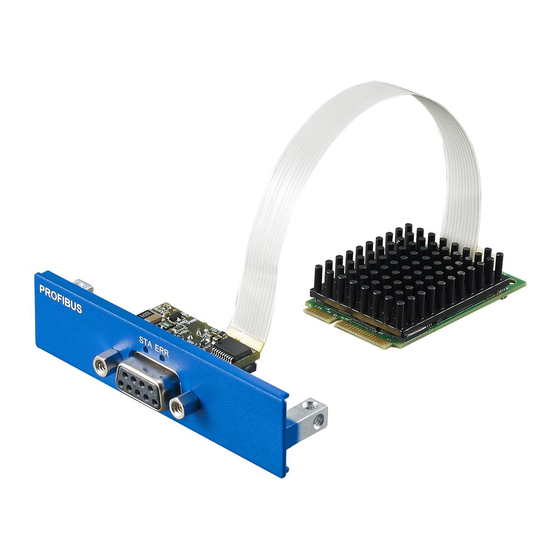

1-Port Hilscher netX100 FieldBus mPCIe, PROFIBUS, DB9
2-Port Hilscher netX100 FieldBus mPCIe, EtherCAT, RJ45
2-Port Hilscher netX100 FieldBus mPCIe, EtherNet/IP, RJ45
2-Port Hilscher netX100 FieldBus mPCIe, Sercos III, RJ45
2-Port Hilscher netX100 FieldBus mPCIe, PROFINET, RJ45
2-Port Hilscher netX100 FieldBus mPCIe, POWERLINK, RJ45

2.2 SYCON.net Installation

ƒ Run SYCON.net-Setup and follow the instructions
of the installation wizard.
1st Edition
April 2015
