Advantech PCM-26D2CA-CE Startup Manual

PCM-26D2CA-CE
2-Ports Isolated CANBus mPCIe, CANOpen, DB9
Startup Manual
Packing List
Before installation, please ensure that the following items
have been included in your shipment:
1. mPCIe(USB signal) card with CAN controller x 1
2. DB9 I/O plate x 2 with iDoor bracket x 1
3. Wafer-to-DB9 cable x 2
4. Startup manual x 1
5. Warranty card x 1
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support services, please visit our support
website at:
http://www.advantech.com.tw/eservice
This manual is for the PCM-26D2CA-CE.
Part No.

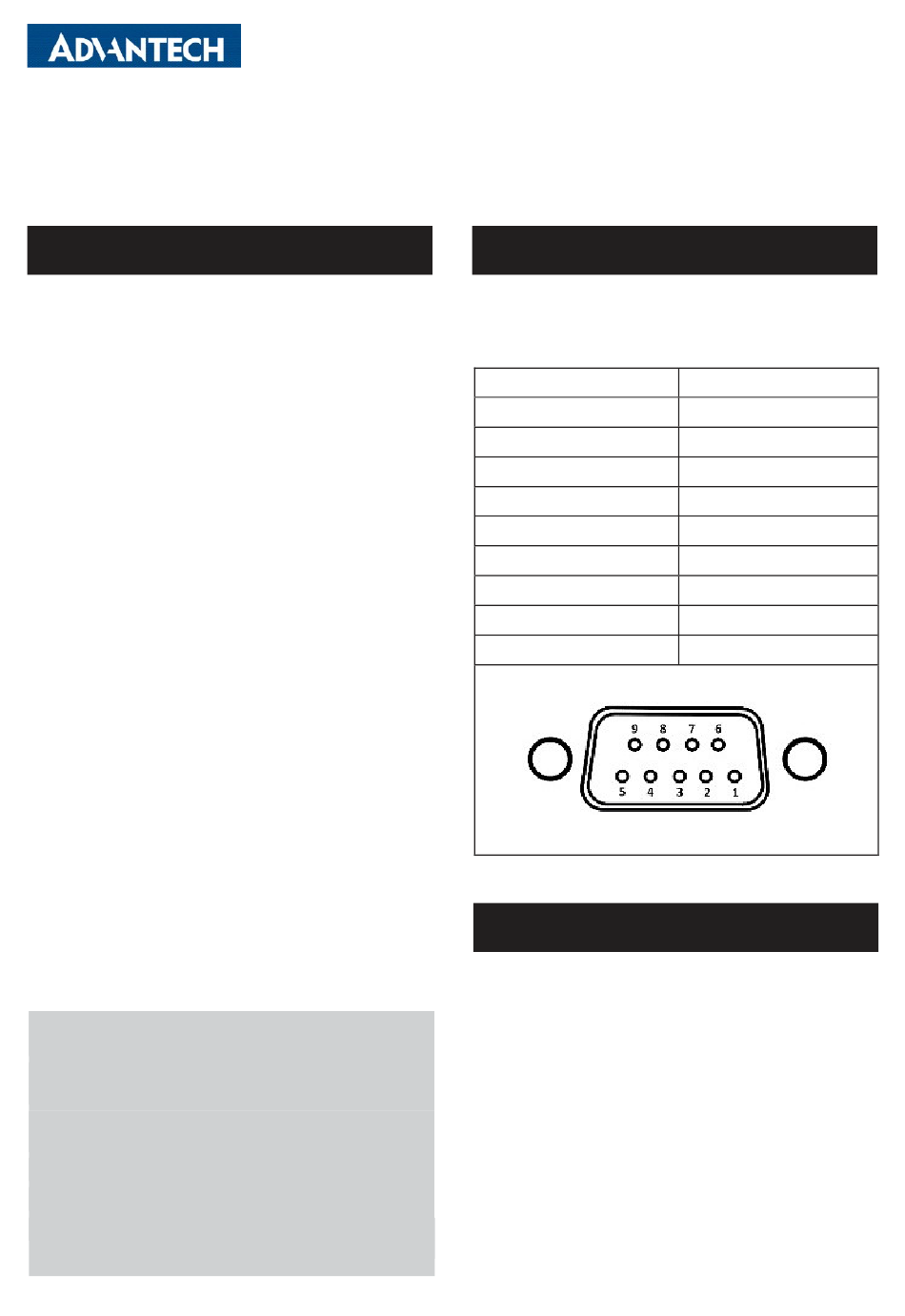

PIN Assignment
The following tables and figures show the pin assignments
of the connector on the bracket to the modular card. If you
see two ports or above, it will use the same pin-definition
as this one.
PIN
1
2
3
4
5
6
7
8
9
Installation
PCM module with iDoor technology supports the following
Advantech platforms:
§ Automation computers - UNO series
§ Panel PC - TPC series
§ Modular IPC - MIC series
See the following page for installation in TPC embedded panel
computers and UNO embedded computers.
Edition 1
June 2023
CAN Port
-
CAN_L
GND
-
-
-
CAN_H
-
-
PCM-26D2CA-CE Startup Manual 1
