Installation

Mount the DGP in any existing Alliance enclosure.
You must be free of static electricity before handling circuit boards. Wear a grounding strap or touch a
CAUTION
bare metal surface to discharge static electricity.
To install the unit, do the following:

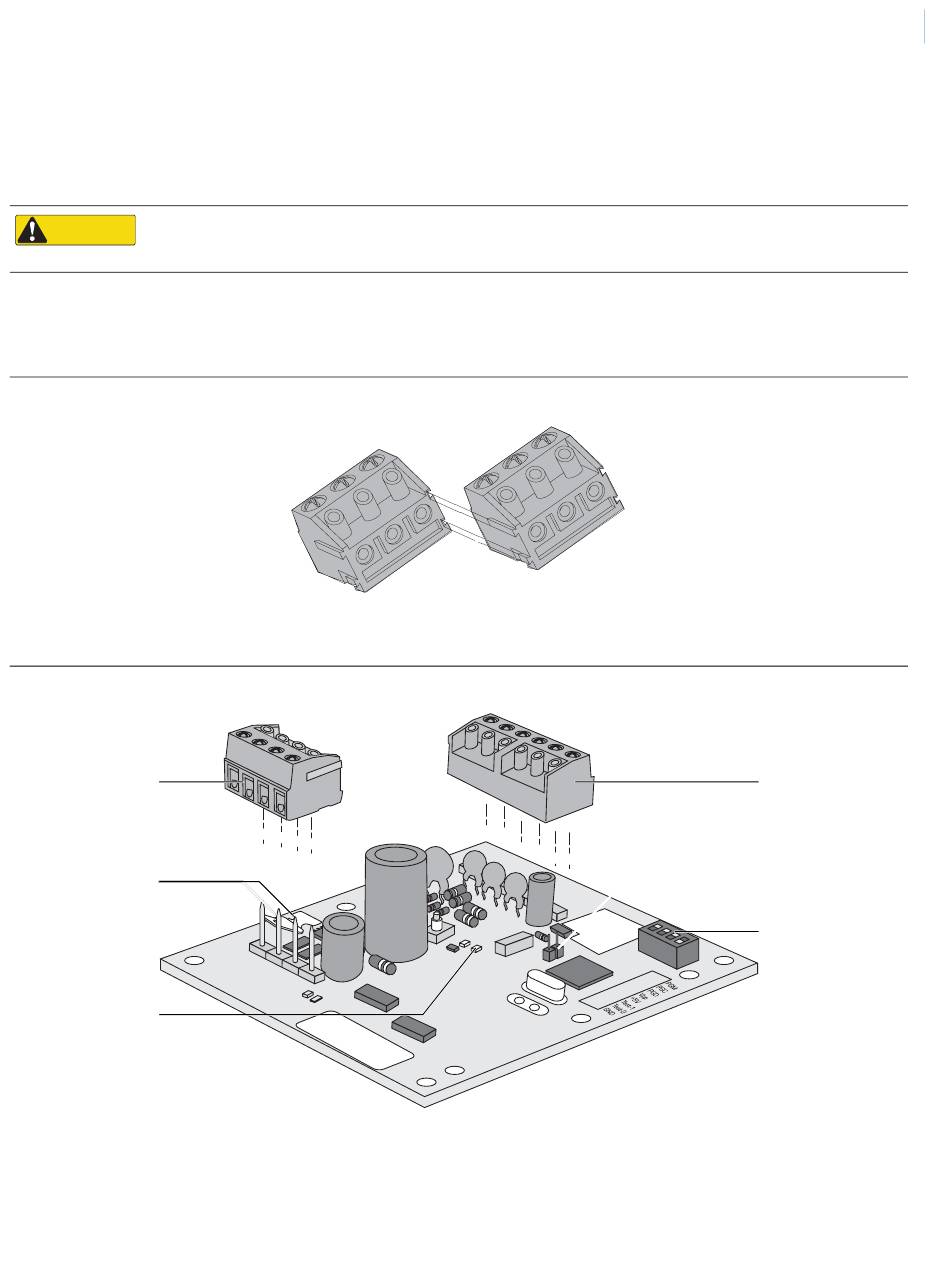

1. Slide the terminal blocks together (Figure 1).
Figure 1. Slide terminal blocks together
2. Slide the terminal blocks over the pins on the board (Figure 2).
Figure 2. Exploded view
CON 2,
point ID
terminal block
CON 10, EARTH
LEDs
5
CON 1,
COMMS/TAMP
terminal block
DIP switches
