22) FITTING CAPS AND END COVERS

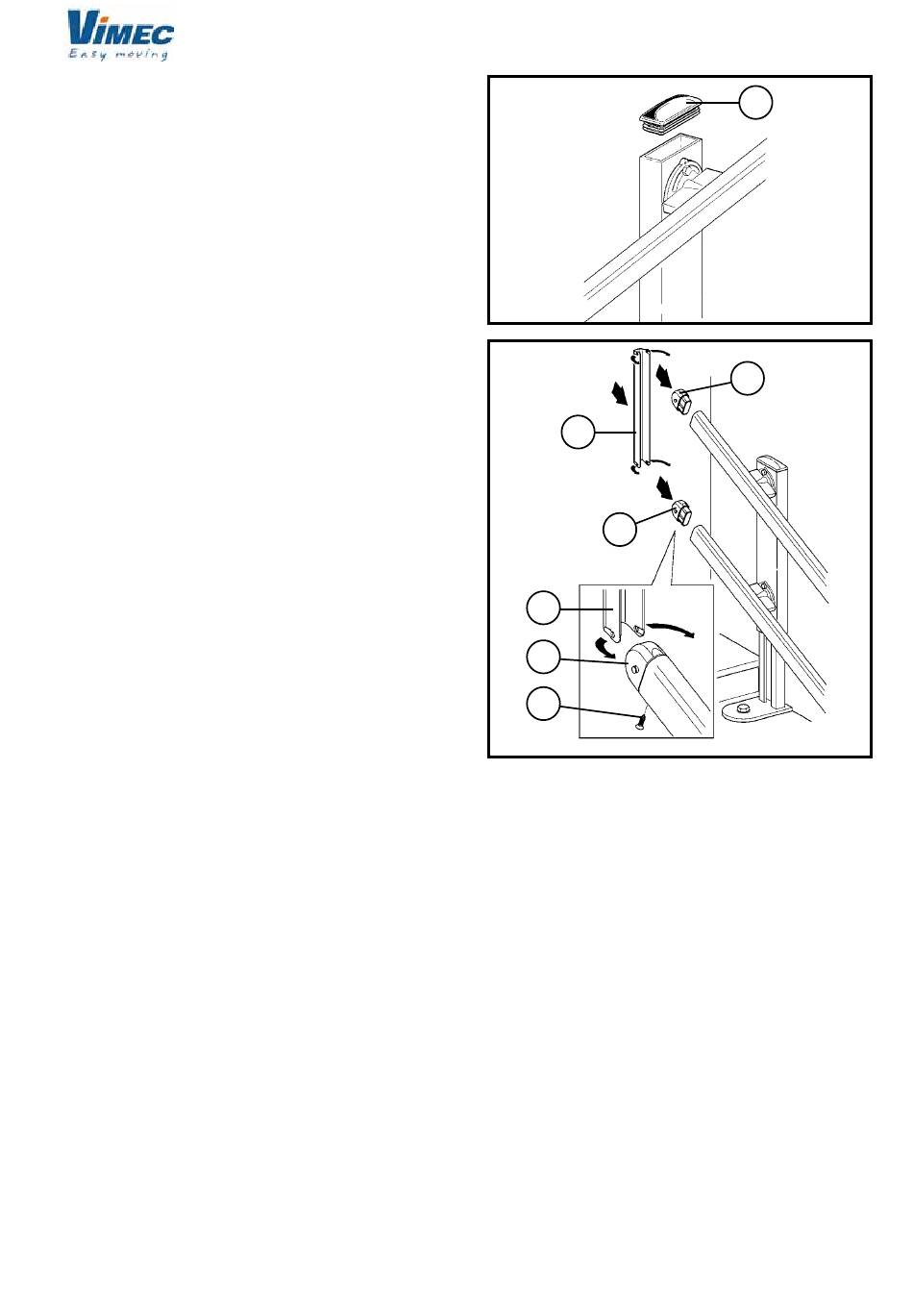

- Press the caps (Fig. 68/a) supplied onto each rail
connection.
- Fit the connecting strips (Fig. 69/a) onto the top and
bottom ends of the rails. To do this, simply fit the end
caps (Fig. 69/b) onto the rails and fix using the screws
(Fig. 69/c) supplied.
- To complete, snap on the connecting strip (Fig. 69/a)
as shown in Fig. 69.
