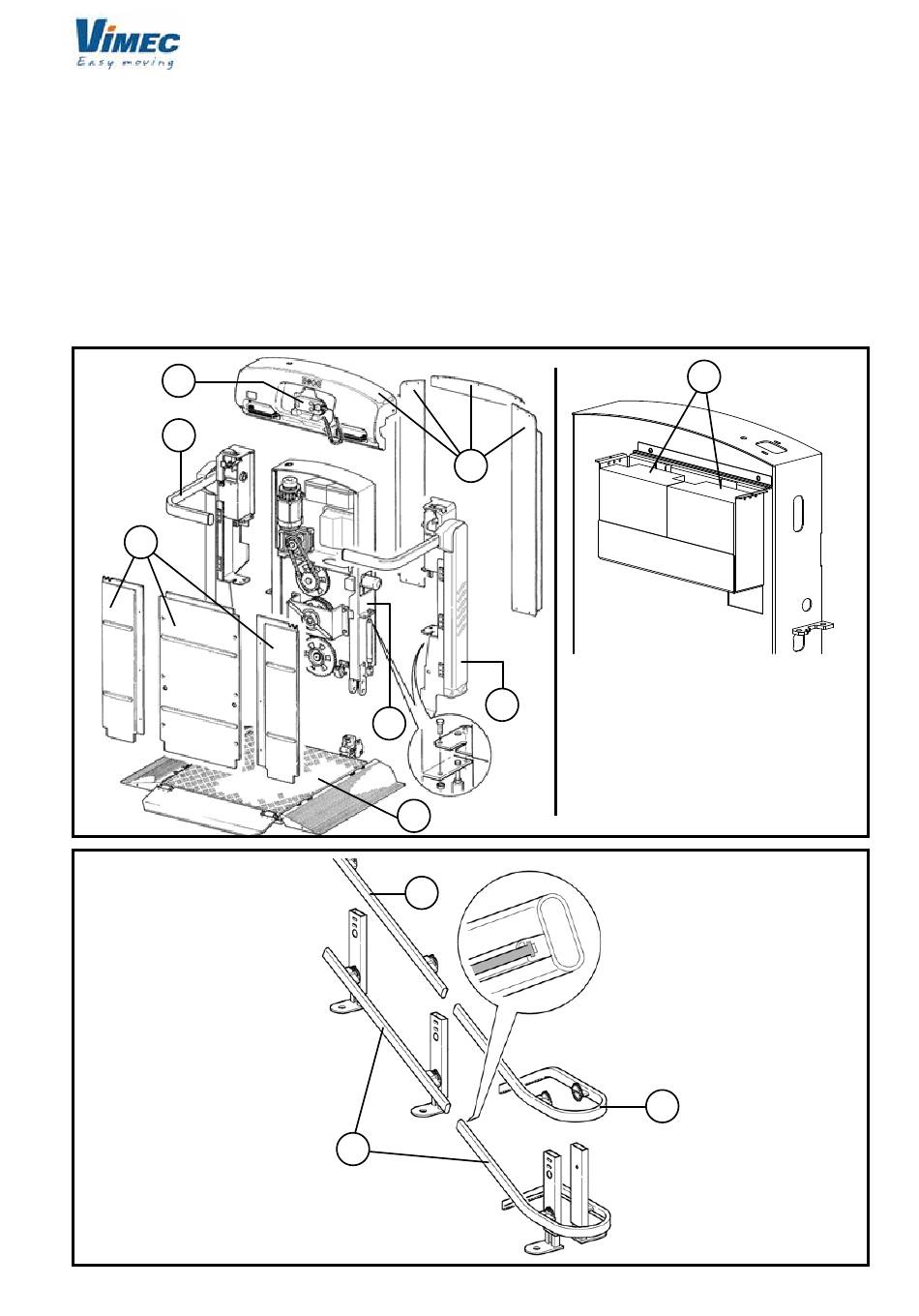

1) SYSTEM SUPPLY PACKAGE

The system supply package consists of the following:
Main structure (Fig. 1/a)
Complete with gear motor, drive components with safety
gear and electrical system.
Batteries (Fig.1/e).
Platform (Fig. 1/b)
Complete with flaps and underpan with safety micro-
switches.
Arm assembly (Fig. 1/c).
Fixed or retractable (optional) protective arms.
FIG.1
d
c
d
FIG.2
WARNING: Remove the arm assemblies (Fig. 1/c)
before fitting the carriages onto the rails.
Casings and on-board control panel (Fig. 1/d).
WARNING: Remove the upper and lower casings
(Fig. 1/d) before fitting the carriages onto the rails.
Rail assembly (Fig. 2)
Comprising:
- Lower rail complete with power bus bar for special
applications and supporting feet (Fig. 2/a).
- Upper rail (Fig. 2/b).
- Mounting accessories.
d
c
a
b
b
a
19
7602040
e
b
