vimec V65 B.I. Original Instructions Manual page 32

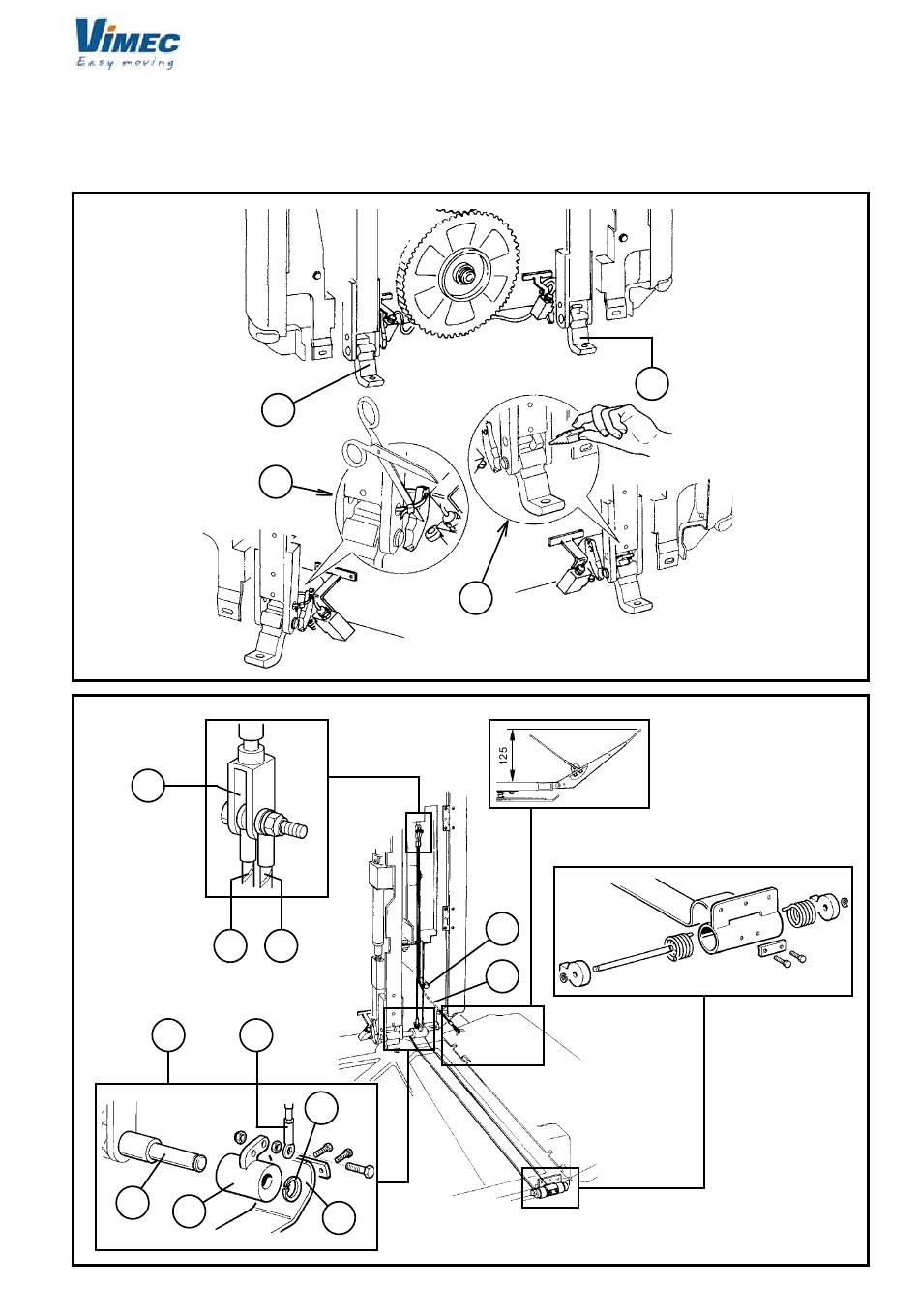

- Fit the cam (Fig. 41/f) with flap drive belt (Fig. 41/g)
onto the pin provided (Fig. 41/d) and fix it with a snap
ring (Fig. 41/a).
- Fix the eye-ring of the cable (Fig. 41/e) to the cam
(Fig. 41/f) using the screw, nut and lock-nut, leaving
FIG.40
FIG.41
b
e
c
d
f
b
c
h
e
a
g
enough play to allow the eye-ring to rotate.
- Connect the wire (Fig. 41/h) to the side flap with
the screws provided, passing it around the pin
(Fig. 41/ i ).
d
i
h
