11) FITTING THE PLATFORM

a) Remove the platform cover plate by unscrewing the
screws provided.

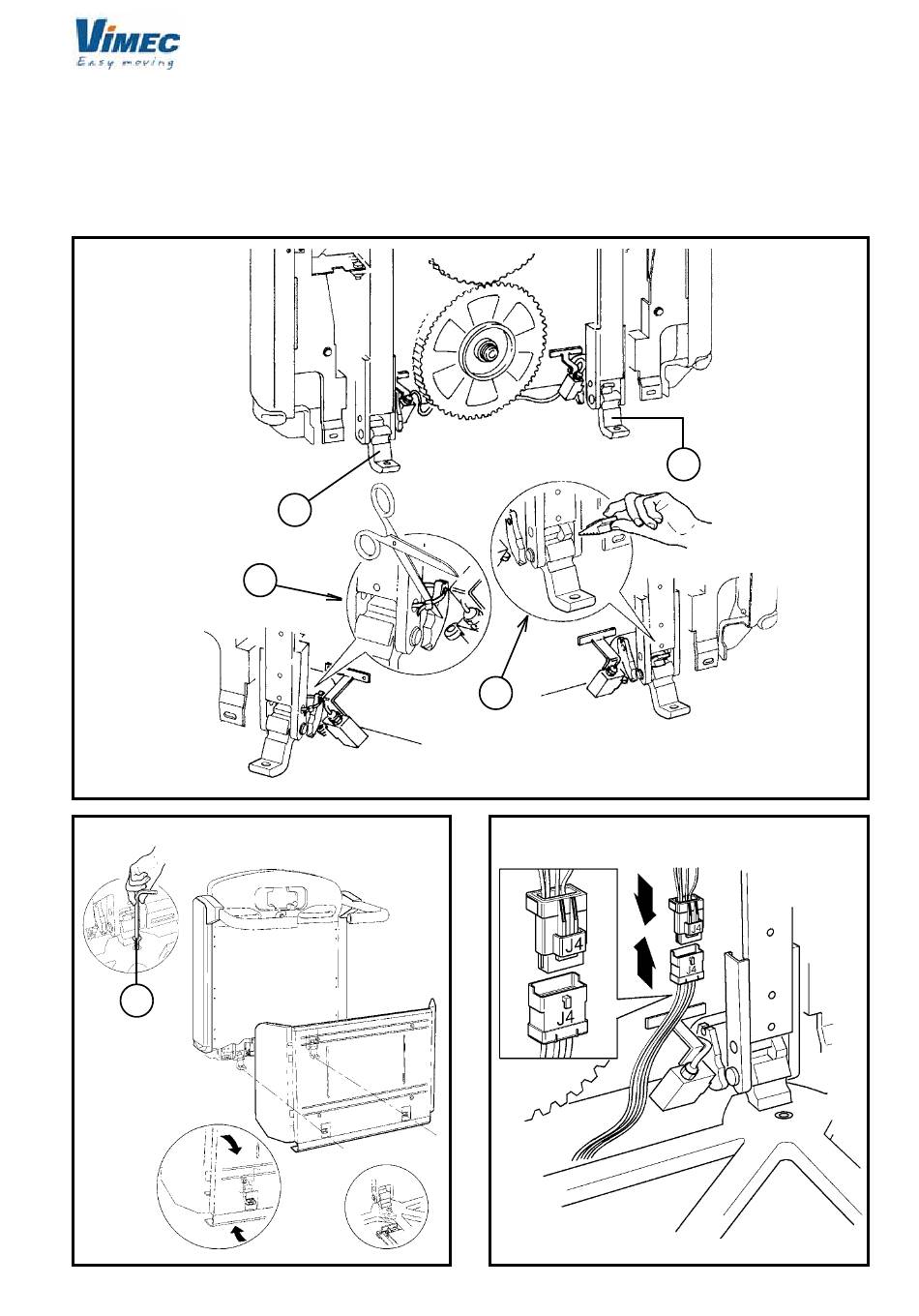

b) Make sure that the two platform supports, held in
place by a wedge and a plastic band, are in the as-
sembly position (Fig. 46/a,b).
FIG.46
FIG.47
a
b
c
c) Fit the platform, holding it vertical and turning it
through 90° as shown (Fig. 47).
d) Fix the platform to the frame with the M8 flat-head
screws provided (Fig. 47/a).
e) Connect the connector j4 (Fig. 48)
d
FIG.48
