Humidistat; Removing The Humidistat - HP POD 40c G2 Maintenance And Service Manual

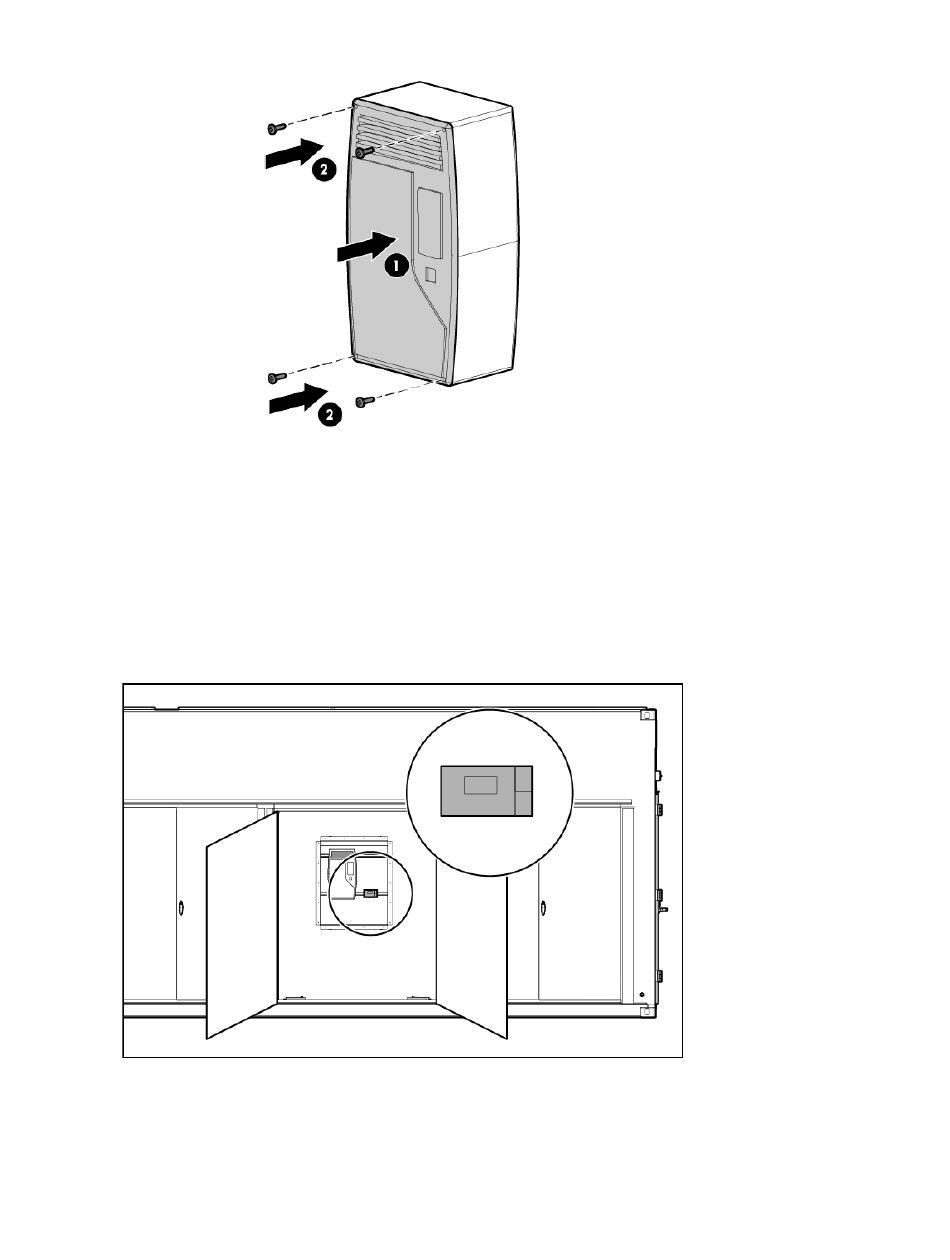

Replace the humidifier cover (1), and then secure the cover with four screws (2).
6.
Open the water supply isolation valve on the HP POD 40c G2 exterior.
7.
Connect the water supply line to the humidifier on the HP POD 40c G2 exterior.
8.
Close the associated circuit breaker in the ECS cabinet.
9.
Press the power button on the outside of the humidifier to power up the humidifier.
10.

Humidistat

The humidistat is located in the cold aisle humidifier bump out.
You need a Phillips-head screwdriver and a flathead screwdriver for installation.

Removing the humidistat

Press the power button on the outside of the humidifier to power down the humidifier.
1.
Removal and replacement procedures 47
