Electrical panels

WARNING:
requirements when opening or working inside areas of the HP POD 40c G2 that are marked as
hazardous voltage, per NFPA 70E in accordance with NEC (NA) and IEC (EMEA and APJ).
WARNING:
electrical warning labels when operating and maintaining the electrical panels and systems of the
HP POD 40c G2.

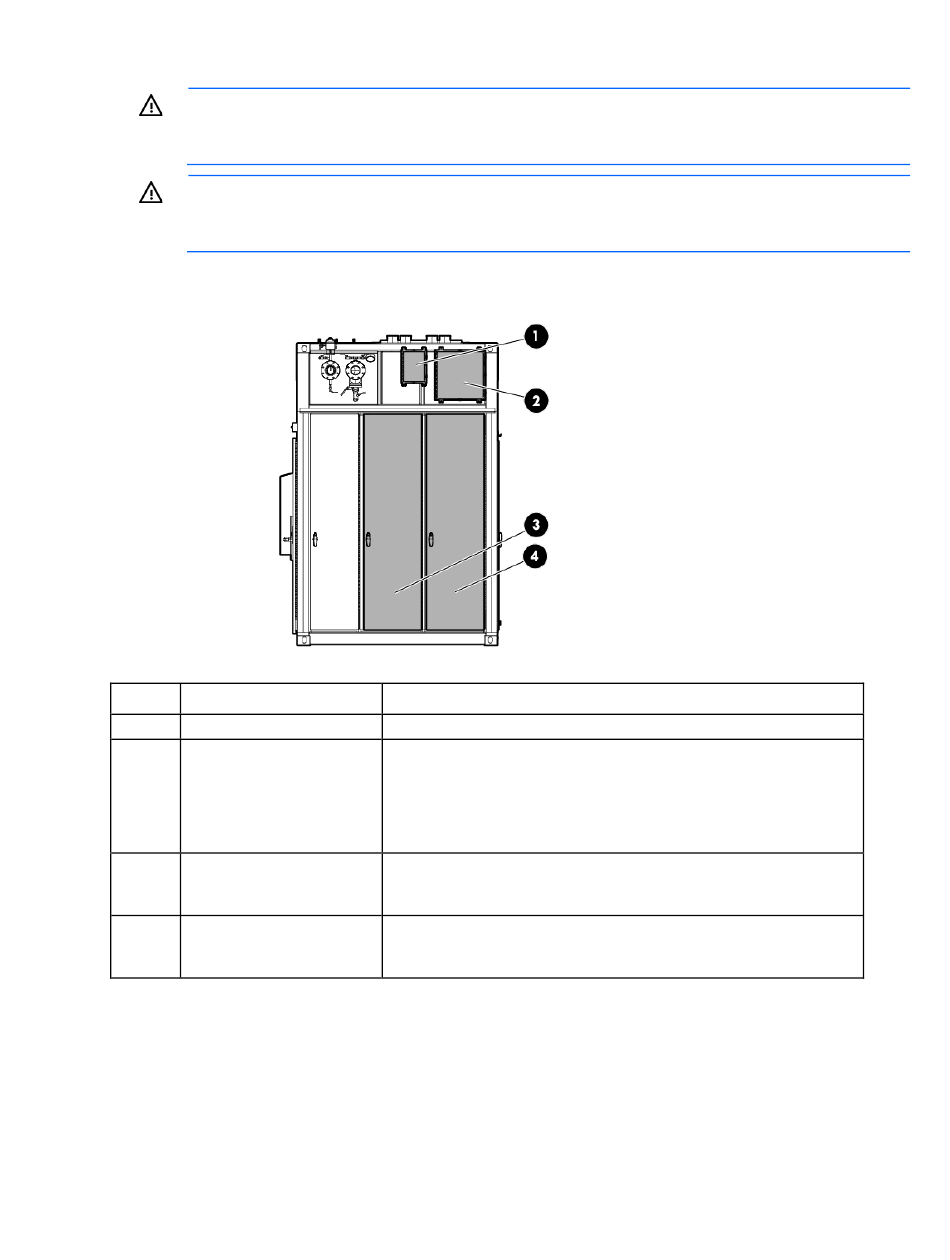

End view shown
Item Component
Fire box*
1
Demarcation box*
2
415 Y/240 V 3-phase,
3
4-wire, 800 A electrical
panel
415 Y/240 V 3-phase,
4
4-wire, 800 A electrical
panel
*The demarcation box and the fire box are communication data points that are provided on the POD by HP. Connecting
these data points is the responsibility of the customer, unless an approved Statement of Work is initiated.
Main breaker locations
To avoid the risk of personal injury or loss of life, all personnel must comply with PPE
To avoid the risk of personal injury or loss of life, all personnel must comply with
Description
Connection location for fire emergency and VESDAnet signals
Customer communication connection point for the following
components:
•
ECS
•
Security
•
Phone
Feed A power for critical IT loads (electrical busways) and house power
Feed B power for critical IT loads (electrical busways) and house power
