Door position contact

Door position contacts are located on all doors and cabinets.
You need a Phillips-head screwdriver and scissors for installation.

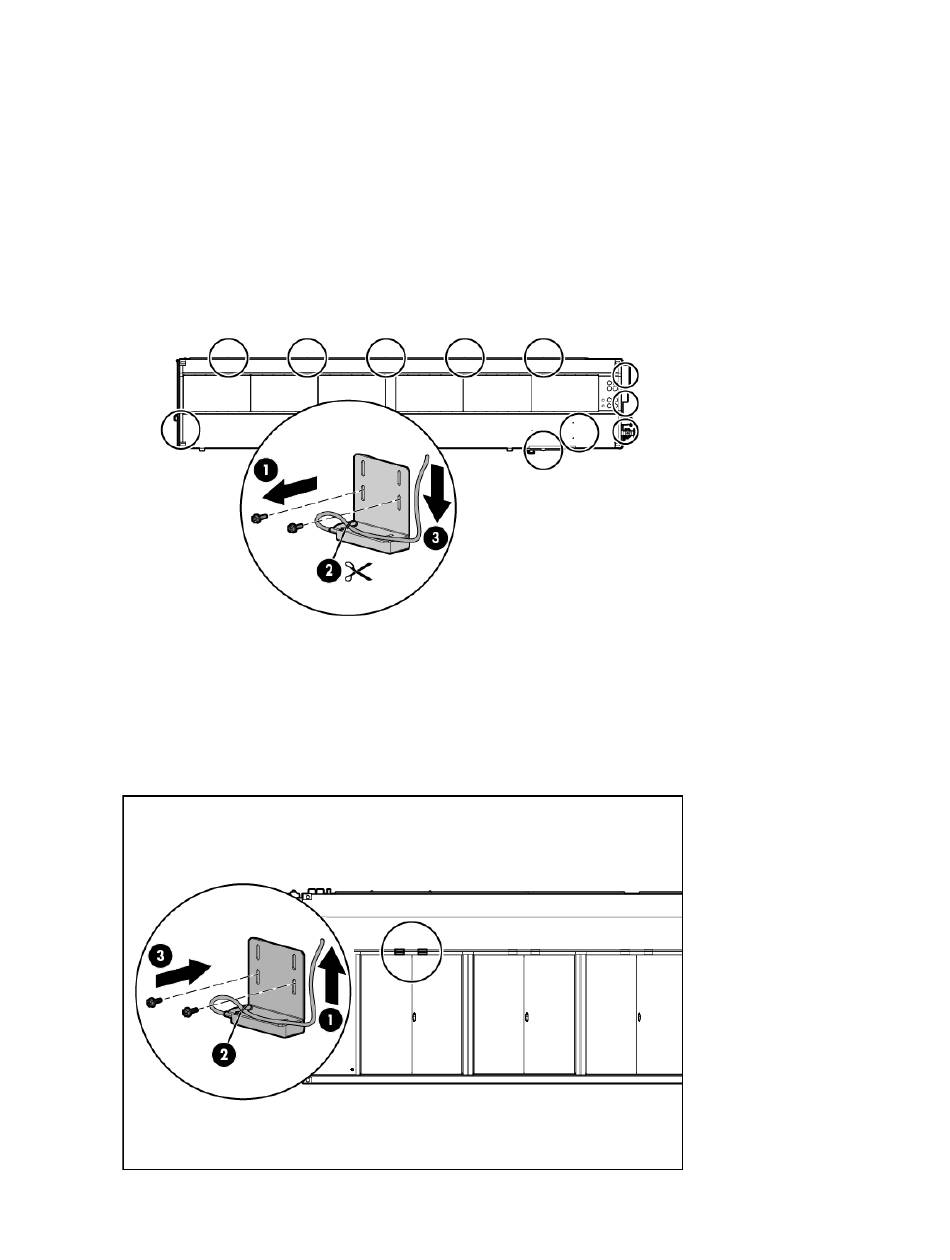

Removing the door position contact

Remove the two screws securing the upper magnet (1).
1.
Cut the tie wrap (2) and loosen the nut on the HP POD 40c G2 structure that secures the wire.
2.
Pull the wire all the way through to the point of entry or ECS panel (3).
3.

Replacing the door position contact

Feed the wire all the way through from the point of entry or ECS panel (1).
1.
Tighten the nut on the HP POD 40c G2 structure that secures the wire, and then replace the tie wrap (2).
2.
Secure the magnet to the bracket using two screws (3).
3.
