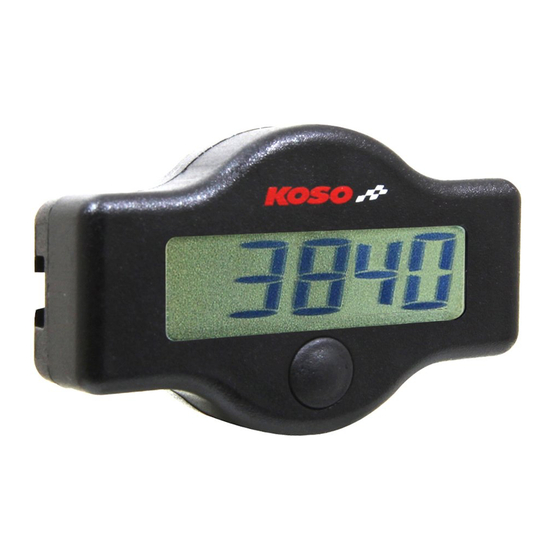

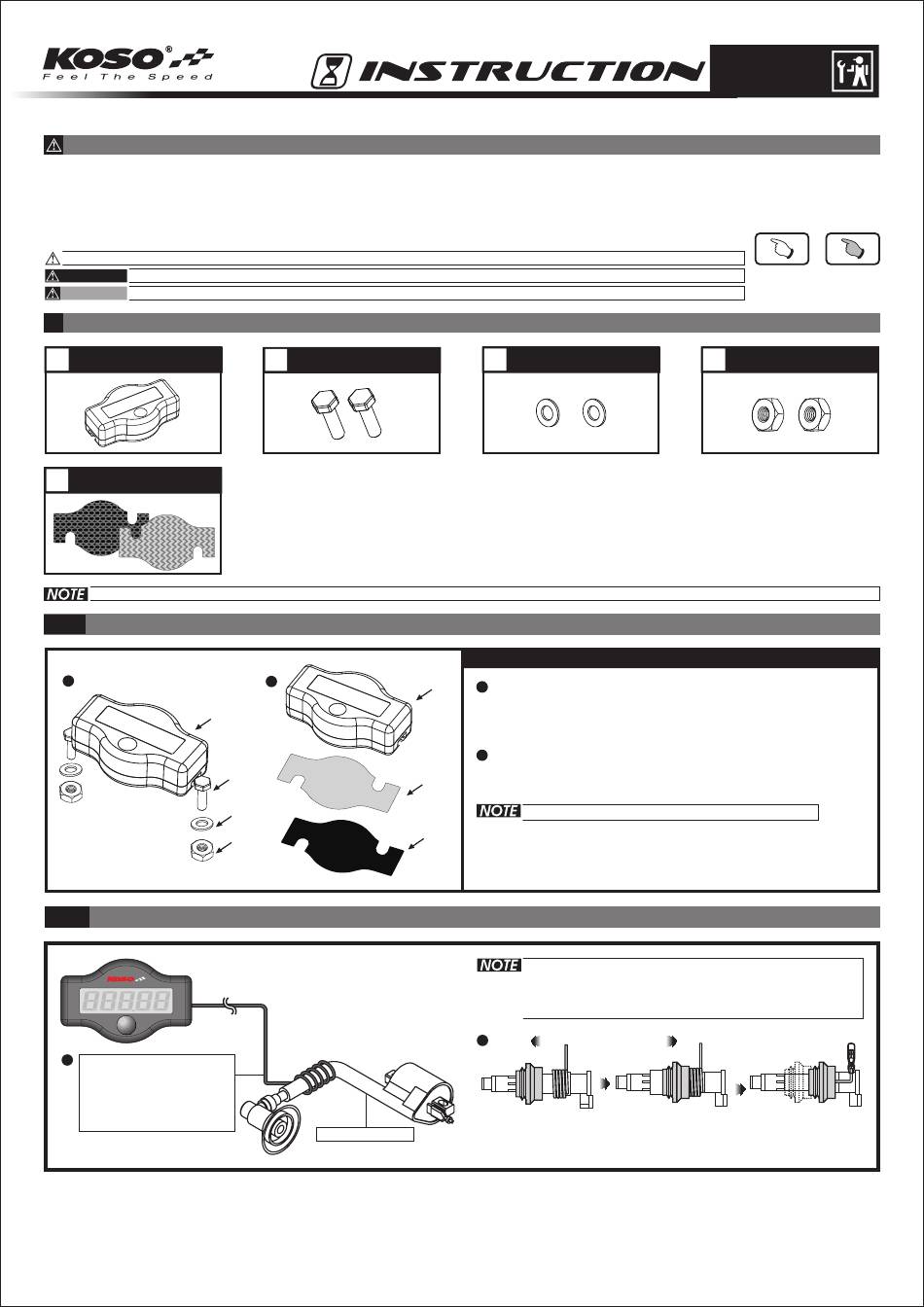

Koso EX-01 Instructions

Thank you for purchasing our Koso EX-01 engine hour meter. Please read carefully the instruction sheet and keep it for future

Notice

●
For proper installation, please follow the steps described below. Any damage caused by a wrong installation shall be imputed to the users.
●
Do not cut or modify the wire. To avoid short circuit, do not pull the wire off the connector when installing the meter.
●
Do not disassemble or change any parts
●
Opening the instrument will void any warranty. Maintenance or repair should be executed by our professionals only.
◎ MARK MEANING:
Some procedures must be followed to avoid damage caused by wrong installation.
警 告 !
WARNING!
Some procedures must be followed to avoid injuries.
CAUTION!
Some procedures must be followed to avoid any damage to the vehicle.
1

Kit content

1
Meter X1
5
Velcro X1 set
Please contact your local distributor if the items received are not the same as the ones listed above.
2-1

Installation instruction

A
1.
2-2

Wiring installation instruction

RPM / Hour Meter
A
Brown / RPM wire
Connect the RPM wire
according to one of the
three positions shown on
(B). the models.
2
M3X10XP0.5
screw
B
2.
3.
4.
Spark plug wire
3
X2 M3 washer X2

Installation steps

1.
1. Engine hour meter (Accessory 1)
A A
2. M3 screw (Accessory 2)
washer
3. M3 (Accessory 3)
4. M3 screw nut (Accessory 4)
1. Engine hour meter (Accessory 1)
B
2. Male (Accessory 5)
Velcro -
2.
3. Female (Accessory 5)
Velcro -
Choose either Method A or B according to your need.
3.
For motorcycle with ignition coil system, the RPM can be
installed following the methods here described. Wrap the
RPM wire at least 5 times around the spark plug cap as
shown below.
B
PRESS THE PRESS THE
BUTTON 3
BUTTON
ONCE SECONDS
4
M3XP0.5 X2
screw nut
wh049ba01a
