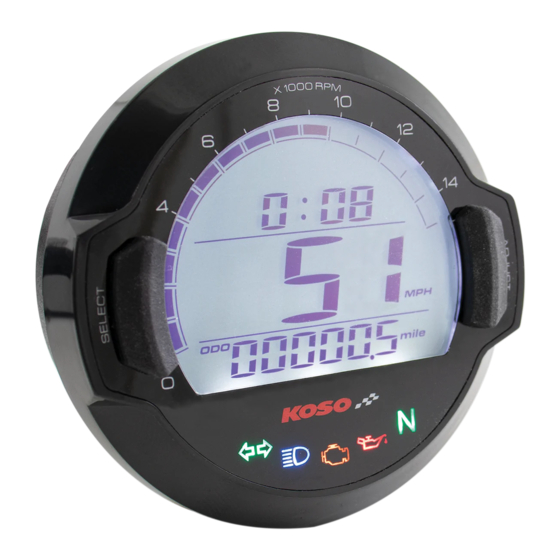

Koso GP Instructions Manual

●Thank you for purchasing KOSO style speedometer. Before operating the unit, please read the instruction thoroughly and retain it for the future
reference.
NOTICE
1.The lcd meter is apply for DC 12V .
2.For installation, please follow the steps described in manual. Any damage caused by wrong installation shall be imputed to the users.
3.To avoid the short circuit, please don't pull the wire when installing. Don't break or modify the wire terminal.
4.Do not disassemble or change any parts excluding the manual description.
5.The interior examination or maintenance should be executed by our professionals.
MARK MEANING:
NOTE
You could get the installation details from the information behind the mark.
Some processes must be followed to avoid the affection caused by wrong installation.
WARNING!
Some processes must be followed to avoid damages to yourself or the public.
CAUTION!
Some processes must be followed to avoid the damage to the vehicle.
ACCESSORY
Meter X1
RPM wire set (Type B) X1
M5 x 5L mm Hexagon
screw x 2
Rubber x 1
M5 washer x 2
NOTE
Please contact the local distributor if the items you open are not the same, with the above-listed one.
OPTION ACCESSORY
Bolt Magnet
NOTE The optional active speed sensor can read up to 20 pulsations and not require the installation of any magnets to pick up the speed.
Note that the passive speed sensor supplied with this instrument can read up to 6 pulsations.
NOTE
Some of the optional accessories listed might not be sold in your country. Contact your local distributor to get more details.
Passive speed sensor X1
Mid-way connect X 11
2.5 mm allen key x 1
M6 x 18L mm screw x 1
M6 washer x 1
Active speed sensor
D6 x 5L mm magnet x 6
M8/ S type speed
sensor bracket x 1
V type Meter bracket x 1
set
M5 x P0.8 mm nut x 2
Aluminum bushing x 1
L type speed sensor
bracket
Flash Press the Press down the
button button
one time for 3 seconds.
RPM wire set (Type A) X1
M10/ S type speed
sensor bracket x 1
Handle bar clamp x 1
M6 x P1.0 mm nut x 1
