Koso GP style Instruction

speedometer
INsTRUCTION
KOSO GP style

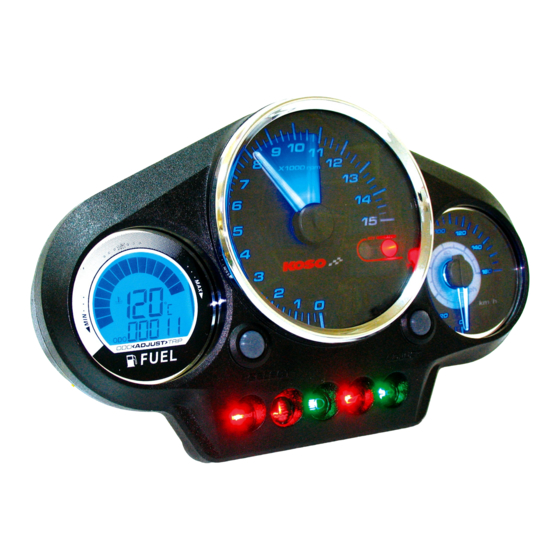

Thank you for purchasing KOSO GP style speedometer, led night-back-lighted, multi-function in one. easy-wiring. Clear-controlling and easy-using.
Notice
1.The lcd meter is apply for DC 12V.
2.for installation, please follow the steps described in manual. any damage caused by wrong installation shall be imputed to the users.
3.don't break or modify the wire terminal. to avoid the short circuit, please don't pull the wire when installing.
4.do not disassemble or change any parts excluding the manual description.
5.the interior examination or maintenance should be executed by our professionals.
6.if you find the needle is auto-reset by itself, please check your battery situation. if the battery can't provide enough voltage, it will
cause the meter auto-reset.
MARK MEANING:
You could get the installation details from the information behind the mark.
Some processes must be followed to avoid the affection caused by wrong installation.
WARNING! Some processes must be followed to avoid damages to yourself or the public.
CAUTION! Some processes must be followed to avoid the damage to the vehicle.
1 Accessory
1 2
Meter X 1 RPM wire set X 1
X1000 rpm
ODO<ADJUST>TRIP
5
Manual
Please contact the local distributor if the items you open are not the same, with the above-listed one.

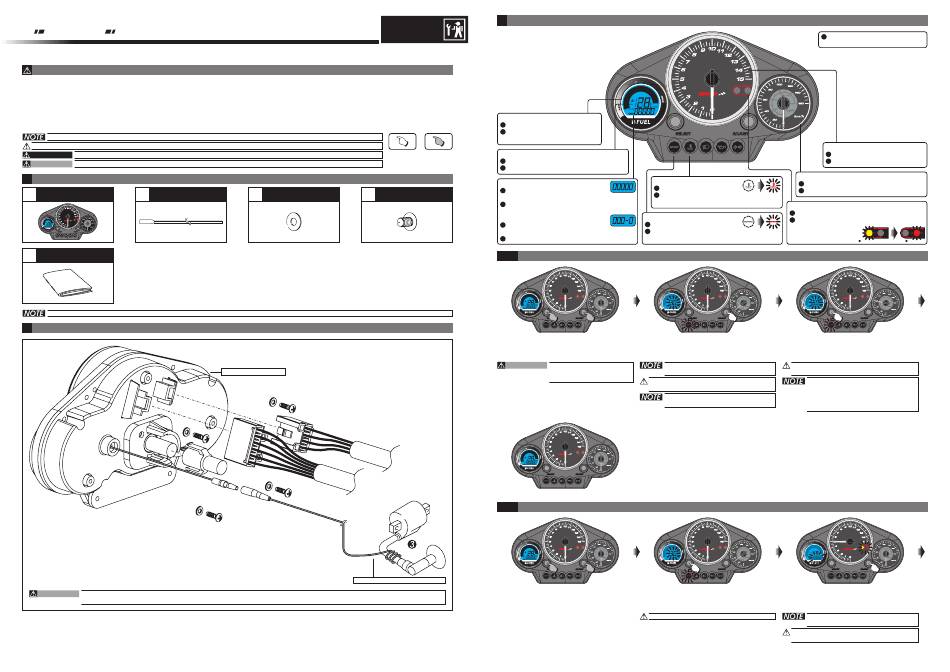

2 Wiring installation instructions
1.Please remove the original meter and install the KOSO radar series speedometer, then fix the cable
wire and meter.
2.Use the washer (Accessory 3) and screw (Accessory 4) to fix the meter on handle-bar cover.
3.Wind the rpm sensor onto the spark plug cap.
CAUTION!
Just wind the rpm wire onto the spark plug wire, do not connect them! Also we suggest you to replace the spark "R" in the
meantime.
PRESS THE
BUTTON ONE TIME
3 4
M3 washer X 4 M3 screw X 4
Meter (Accessory 1)
RPM sensor wire (Accessory 2)
3
Function instruction
Fuel symbol
Display range: 16levels.
T he fuel reserve symbol begins
to flash if only 3 grids left.
PRESS THE
Temperature
BUTTON 3
o
SECONDS Display range: 0~120 C.
o
Display unit: 1 C.
Odo meter
Display range: 0~99999 km ,
reset automatically after 99999 km.
Display unit: 1 km.
Trip meter
Display range: 0~999.9 km ,
reset automatically after 999.9 km.
Display unit: 0.1 km.
4-1 Speeding warning light setting instruction.
X1000 rpm
ODO<ADJUST>TRIP
In main screen, press down the SELECT
& ADJUST button for 3 seconds to enter the
speeding warning light setting screen.
CAUTION! Please start the setting
when the motorcycle is
stopped (0 km/h).
X1000 rpm
ODO<ADJUST>TRIP
Main screen.
4-2 Tachometer warning light setting instruction.
X1000 rpm
ODO<ADJUST>TRIP
In main screen, press down the SELECT
ADJUST button for 3 seconds to enter the
speeding warning light setting screen.
X1000 rpm
ODO<ADJUST>TRIP
Temperature warning light
o
Setting range: 6 0~120 C.
o
Adjusting unit: 1 C.
>Regarding the setting, please check 4-3.
Tachometer warning light
Speeding warning light
Setting range: 30~160 km/h.
>Regarding the setting,
Adjusting unit: 5 km/h.
please check 4-2.
>Regarding the setting, please check 4-1.
X1000 rpm
ODO<ADJUST>TRIP
Press the ADJUST button to select the number Press the
you want to set. (Now you are in the speeding main screen.
warning light setting screen) EX. The setting is changed from 30 km/h to 60
km/h.
Setting range: 30~160 km/h. Now 60 (The number you want to set) &
Adjusting unit: 5 km/h. speed is flashing.
Now 30 (The number you want to set) &
speed is flashing.
Hold down the ADJUST button to
increase the setting number fast.
X1000 rpm
ODO<ADJUST>TRIP
& Now in setting screen. Press the SELECT Press the
button 1 time to enter the tachometer you want to set.
warning light setting screen.
Now 30 & speed is flashing.
Now 5000 (The number you want to set)
& tachometer warning light is flashing.
The indicator light will differ
from different models.
Tachometer
Display range: 0~15000 RPM.
Display unit: 100 RPM.
Speedometer
display range: 0~160 km/h. 0~100 MPH.
display unit: km/h / MPH.
Setting range: 5000~15000 RPM.
Adjusting unit: 100 RPM.
500 RPM BEFORE THE SETTING OVER-RPM
X1000 rpm
ODO<ADJUST>TRIP
SELECT button 3 times to back the
The setting screen is a circle in order
as the following, the speeding
warning setting> the tachometer
warning setting> the temperature
warning setting> main screen.
X1000 rpm
ODO<ADJUST>TRIP
ADJUST button to select the number
Setting range: 5000~15000 RPM.
Adjusting unit: 100 RPM.
wh802ba001
