Koso HD-04 Instructions Manual

Thank you for purchasing KOSO's HD-04 meter. This product is a multifunction meter that has a digital liquid crystal display (LCD) with a back light
●
design, and is easy to install. Before using, please read the instructions carefully and retain them for future reference.
Notice
●To avoid a short circuit from occuring do not pull or modify the wires during installation.
●Any damages caused by faulty installation shall be imputed to the users.
●Opening and dissassembling this unit will void any warranty.
●Maintenance and repairs should be executed by our professionals only.
◎Symbol description:
NOTE
Some procedures must be followed in order to avoid faulty installation
Warning! Some procedures must be followed in order to avoid damages from occuring to yourself and others.
Caution! Some procedures must be followed in order to avoid damages from occuring to the vehicle.
1

Accessories

1
LCD Meter X1
NOTE Contact your local distributor if the items received are not the same as the items listed above.
2

Installation Diagram

1
2
13
4
11
10
5
6
12
14
1. Speedometer
2. Front gasket
3. Instrument housing / bracket
4. Back gasket
5. Back plate
6. Vent hole
7. Screw (2)
8. Trip odometer reset switch
NOTE Speedometer Components: XL Single Gauge Models Except XL 883C/XL 1200C
NOTE
For installation on "Dyna" or "Softail", follow the procedure according to your Harley-Davidson Service Manual.
9
8
10
4
8
3
9
2
7
12
1
15
9. Reset switch boot
10. Speedometer harness connector [39B]
11. Indicator lamp module
12. Instrument harness connector [20A]
13. Speedometer housing / handlebar clamp
14. XL 1200L / XL 1200N
15. All other single gauge XL models except XL 883C / XL 1200C
3-1

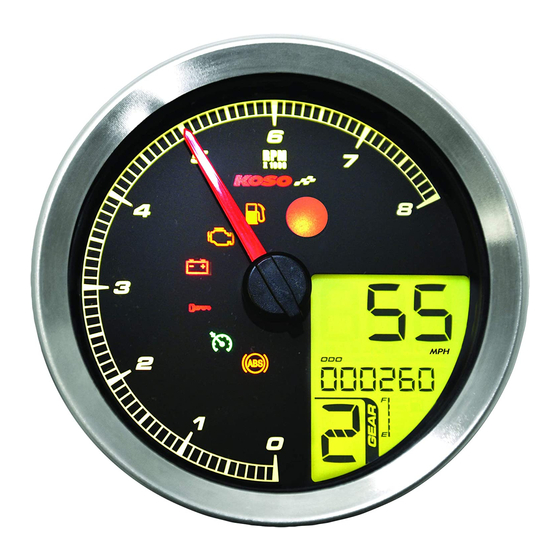

Overview
Tachometer
● Display Range : 0 ~ 8,000 RPM
Indicator
●RPM shift light
●low fuel warning light
●Engine warning light
●low voltage warning light
●security light
●Constant speed light
Gear meter
●Display range : off, highest gear, N and highest
FLASH LIGHT ON
gear, show all (N / 1 ~ 6)
Fuel meter
HOLD THE HOLD THE
BUTTON ONE BUTTON 3 ● Display Range : 6 Levels
TIME SECONDS
Odometer
●Display range : 0 ~ 999,999 km (mile)
return to zero upon exceed
●Display unit : 1 km (mile)
3-2

Features and settings description

●Speedometer
○Display interval
○Internal and external
odometer
○Trip meter A,B
○Tire circumference
●Gear meter
7 ●Tachometer
○ RPM shift light
5
6
○Max. RPM warning mode
●Engine temperature
●Fuel meter
○Fuel tank volume
NOTE Design and specification may change without further notice.
3-3

Application List

11
Vehicle type
Sportster
2004 ~ 2006
2007
2008 ~ 2013
Dyna
2004 ~ 2007
2008
2009 ~ 2011
Softail
2008 ~ 2010
Note:
1.New feature
4.[Fuel Type] Please set as CUSt (user define), and follow the procedure to learn the fuel position for 0% (E), 33%, 66%, and 100% (F).
5.Set the vehicle fuel tank volume in the [fuel volume settings].
3-4
Fuel feature notes
●To enable fuel level and fuel range functionality, Sportster models require separate purchase of Fuel Sensor kit (PN 6120008A). If fuel sensor kit is not
installed, 2007 Sportster models require separate purchase of Fuel Sender Resistor kit (PN 72545-08.)
●The Sportster Fuel Sensor kit (PN 61200008A) is not compatible wit Sportster Fuel Gauge kits (PN 75031-09 PN 75338-9). The motorcycle cannot
support mulitiple electrical fuel gauges. If Fuel Gauge kit (PN 75031-09 or PN 75338-09) is equipped, it must be disabled or the Fuel Sensor kit
(PN 61200008A) cannot be installed and the fuel function of this meter kit will not function.
●ABS light
Distance meter A,B
●Display range : 0 ~ 9,999.9 km (mile)
returns to zero upon exceed
●Display unit : 1km (mile)
Display range : 0 ~ 360 km (0 ~ 255 mile) switchable ○Average fuel consumption
Display unit : 1 km (mile)
<0.5 second ●Clock
Display range : 0 ~ 999,999 km (mile) ●Voltmeter
return to zero upon exceed ●Backlight brigntness
○Backlight color
Display unit : 1 km (mile)
Display range : 0 ~ 9,999.9 km (mile)
returns to zero upon exceed ●Millage maintenance
Display unit : 0.1 km (mile)
Setting range : 50 ~ 210 %
Setting unit : 1 % ●Operating voltage
●Temperature range
Display range : off, highest gear, N and highest
gear, show all (N / 1 ~ 6)
●Specifications
Display Range : 0 ~ 8,000 RPM
●Meter Size
Setting range : 2,000 ~ 8,000 RPM
●Meter Weight
Warning lights on when exceed setting value ●Indication light
(including).
Setting unit : 100 RPM
Setting range : F-OFF (Lit.), F-ON (blink)
Setting range : -40 ~ 215 °C (-40 ~ 419 °F)
Display range : off,original fuel kit
(PN 6120008A), Sportster fuel switch
Setting range : OFF/ 1.0 ~ 9.9 US gallons
Feature
Gear Low fuel level warning
- -
-
YES (2)
YES (1) YES
- YES
YES (1) YES
YES (1) YES
YES (1) YES
2.Fuel Sender Resistor kit needs to be new version(PN 72545-08)
Speedometer
● Display range : 0 ~ 360 km (0 ~ 255 mile)
● Display unit : 1 km (mile)
Millage maintenance user settings (closable)
●Display range : user adjustable (500 ~ 16,000km /
300 ~ 10,000 mile) ~ -999 mile, automatic decrease
according to the increase of total millage.
●Display unit : 1 km (mile)
Remaining millage
●Display range : 0 ~ 9,999 km (mile), when millage is
lower than 16 km (10 mile) will display LO RNG
Average fuel consumption
●Display range : L/100km, km/L, MPG (US-spec.),
MPG (UK-spec.)
Time
●Display range : 12 / 24 hour format
Engine temperature
●Setting range : -40 ~ 215°C (-40 ~ 419 °F)
Voltmeter
●Display range : 8~18V
Display range : OFF、L/100km、km/L、
MPG (US spec.)、MPG (UK spec)
Setting range : 12 / 24 hour format
Display range : 8 ~ 18 V
Setting range : 1 / 5 (darkest) ~ 5 / 5 (brightest)
Setting range : red, orange, yellow, green,
blue, light blue, purple, white
Setting range : Off. 500 ~ 16,000 km
(300 ~ 10,000 mile)
Setting unit : 100 km (mile)
DC 12 V
-10 ~ +60 °C
JIS D 0203 (S2)
D94.7 X 55.8 mm
165 grams
RPM shift light (Red light)
Low fuel warning light (Yellow light)
Engine warning light (Yellow light)
Low voltage warning light (Red light)
Security light (Red light)
Constant speed light (Orange / Green light)
ABS light (Yellow light)
Fuel Level Remaining millage
- -
YES (1) (3) YES (1) (3) (5)
YES (1) (3) YES (1) (3) (5)
YES (1) (4) -
YES (1) (4) -
YES (1) (4) YES (5)
YES (1) (4) YES (5)
3.Need to install fuel sensor kit(PN 61200008A)
