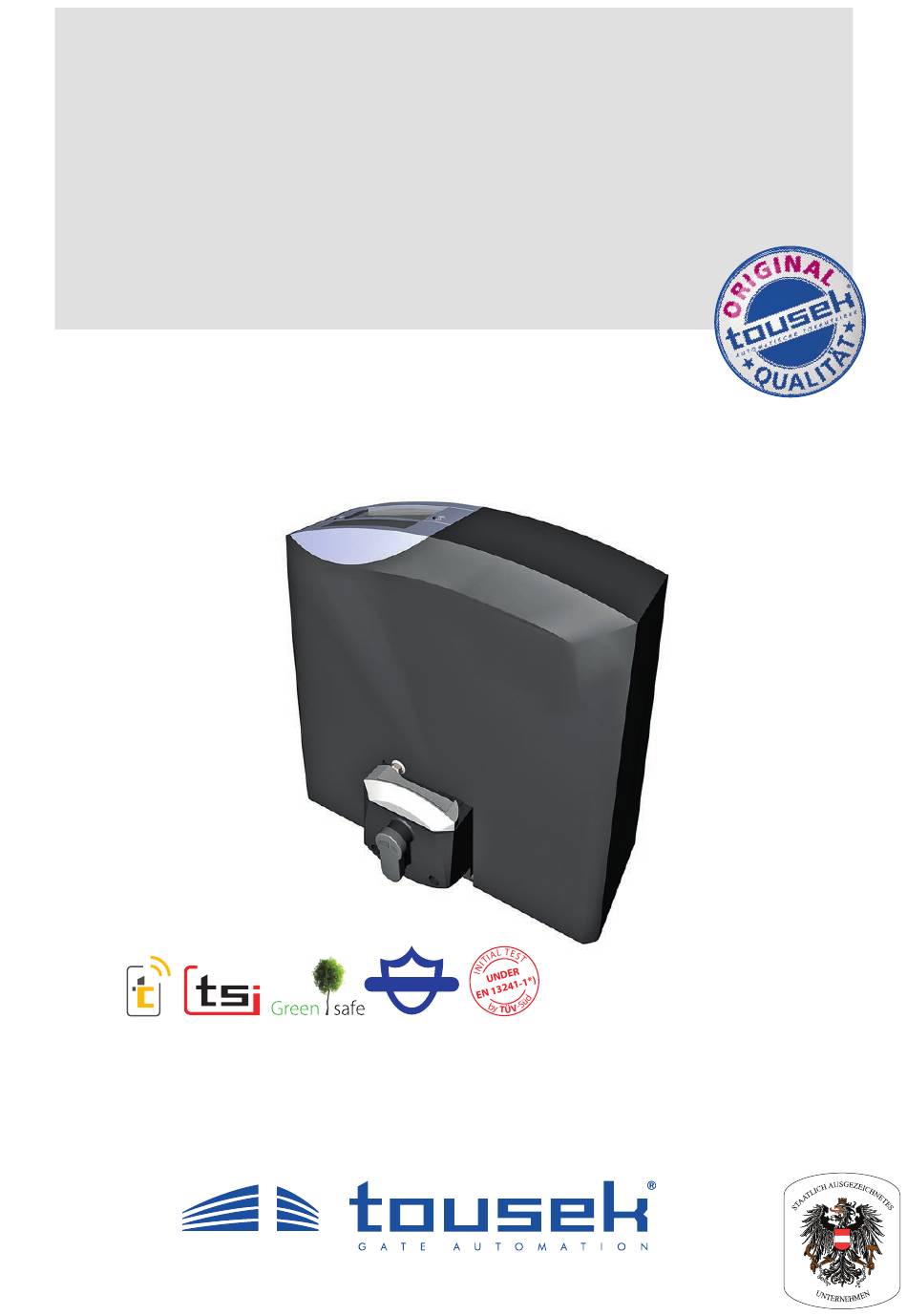

Mounting and istallation manual
PULL T8, -T10, -T15 Master / Slave
sliding gate openers for opposite sliding gates
Safety Sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PULL T8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for tousek PULL T8

Summary of Contents for tousek PULL T8

  • Page 1 Mounting and istallation manual PULL T8, -T10, -T15 Master / Slave sliding gate openers for opposite sliding gates Safety Sensor...

  • Page 2: Table Of Contents

    Declaration of incorporation .......................... 35 This manual is the sole property of the TOUSEK Ges.m.b.H. and may not be made available to competitors. All rights reserved. No part of it may be reproduced without our prior written permission. We will not accept liability for any claims resulting from misprints or errors. This edition of the manual replaces all earlier publications of the same.

  • Page 3: General Warning And Safety Details

    EU and in the individual countries have to be strictly followed. • The TOUSEK Ges.m.b.H. cannot be held liable for any claims resulting from disregards of the laws and standards in force during the installation and operation.

  • Page 4: Notes, General Characteristics, Function, Technical Data

    General During the development of the new operator generation Tousek PULL T8, -T10, -T15 special attention has been paid to a quick and simple in- stallation and a troublefree operation, together with the proven quality and reliability. Accordingly, many clever details have been built into the operator - from the automatic learning of gate end positions, to the control board with removable clamps an integrated safety sensing edge analysis, to an easy programmable text display - which make it particularly user-friendly.
  • Page 5 General installation notes Before installing the Tousek PULL T8, -T10, -T15 sliding gate operator we recommend checking the following points: • Checking the gate structure: On a gate which travels on floor rails please check the bottom rollers and the upper guide rollers and make sure that there is no undue friction or jamming.
  • Page 6 (4a) slotted holes (4x) for connection on the ground steel gear rack Ground plate PULL T8, -T10 Installation of the motor • Dimensions in mm • depth of ground plate: 8mm 18,5 18,5 13,5 - 6 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 7: Mounting

    2.3 Dismantling The dismantling of motor is made the other way around of mounting. Before dismantling please plug off power supply of motor ! - 7 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 8: Control Unit, Overview

    Control board Sliding gate operator PULL T8, -T10, -T15 / Master-Slave Overview of the control board Important The optional „tousek-connect“ or the „tousek service interface“ must be connected with socket (D)! Attention During connection, adjustment and maintenance works please take care, that the electronic circuit board won´t...

  • Page 9: Connection Master- Slave Control Unit

    3.1 Terminal assignment Sliding gate operator PULL T8, -T10, -T15 / Master-Slave Master control unit Terminal assignment Connection Master /Slave control unit • For the connection of the master and slave control unit connect the terminals 88 and 89 in the system connector to each other.
  • Page 10 8 • During connection, adjustment and maintenance works please take care, that the electronic circuit board won´t be damaged by moisture (rain). - 10 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...
  • Page 11 • IMPORTANT: The control lines (buttons, radio, photocells, etc.) have to be laid separately from the 230V lines (supply line, motors, signal lamp). - 11 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 12: Programming, Stucture Of The Menu

    3.2 Adjustments - overview Sliding gate operator PULL T8, -T10, -T15 / Master-Slave Programming buttons • Before starting the programming, please choose the language. Use the buttons to choose menu language and confirm with • The language must be set in the master and in the Slave control board.
  • Page 13 The menu points courtyard lamp and control lamp will only appear on display if in menu „Additional module“ courtyard lamp/control lamp is selected.  ENTER control board PULL T8, -T10, -T15 / Master-Slave - 13 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 14: 3.3 Connections And Adjustments

    3.3 Connections and adjustments PULL T8, -T10, -T15 / Master-Slave Warning notes • Before taking off the control cover, the • The product is not suitable for installation in explosion- mains switch must be turned off! hazardous areas. • If the control is power supplied, its inner part is under •...
  • Page 15 The stop input has no emergency stop function! - In order to ensure the emergency stop function, provide the supply line with an all-pole disconnecting emergency stop switch, that locks after actuation! - 15 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 16: Safety

    Trasmitter Receiver Photocell Tousek LS 26 as safety device 12/24V 12/24V NC C NO Important • Jumper J of transmitter and receiver has to be adjusted in the same way. - 16 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...
  • Page 17 Photocell Tousek LS 41 2 Photocells Tousek LS 41 as safety- as safety device device with active SYNC-function Transmitter Receiver Transmitter Receiver Activation of SYNC-function • To activate the SYNC-function when SYNC you connect two photocells (see notes on photocells) (see right figure...
  • Page 18  TX 400: to be selected if safety sensing edge (8,2kΩ) of side entrance edge should be evaluated with the system TX 400i. • Connection and detailed information of radio transmission system TX 310 see according manual. • Connection and detailed information of inductive system TX 400i see according manual. - 18 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...
  • Page 19 • The photocell self-test can only be deactivated by selecting „not active“. • The deactivation of the self-test function is only permitted if the safety installations correspond to the category 3 ! - 19 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 20: Motor

    For a diminished drive distance the value can be extended to up to -30. This adjustment is ONLY adopted in CLOSED-position. Attention With force adjustment the valid safety regulations and standards have to be strictly followed ! - 20 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 21: Operating Mode

    Motor partial opening Operation logic  Master: partial opening by Master operator.  Slave: partial opening by Slave operator.  Master and Slave: partial opening by both operators. - 21 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 22: Lamps / Lights

    If the gate is closed, the pilot lamp expires  Illuminated when gate is open: Pilot lamp is illuminated as soon as the gate has reached end position open. - 22 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...
  • Page 23 • On the terminals 70/71 a control lamp (K) can be connected: 24Vd.c., max. 2W • Contact load: 24Va.c./d.c., max. 10W – 12 13 70 71 90 91 92 93 - 23 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 24: Diagnosis

    DAYS HOURS: MINUTES : SECONDS $$$$$$$$$$$$$$$$ T -00 00:00:00.0 $$$$$$$$$$$$$$$$ Event Type of event Status Sensor Diagnosis  Degree and signal strenght of rotation speed sensor is shown on display. - 24 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 25: Emergency Release In Case Of Power Failure (Note For The User)

    Emergency release in case of power failure (note for the user) M/S PULL T8, -T10, -T15 / Master-Slave In case of a power failure or other defect the drive pinion can be disengaged from the gearmotor as follows: • Switch off power supply •...

  • Page 26: Connection Of Radio Receiver

    Connecting the receiver Sliding gate operator PULL T8, -T10, -T15 / Master-Slave Important • Disconnect the power supply. • Remove radio cover (6a) after loosening the bolt (s). • With the use of the 2-channel-receiver the second • Plug-in the receiver printed circuit board (E) RS433/868-...

  • Page 27: Optional Din Rail For Mounting Of Additional Equipmen

    Optional DIN rail Sliding gate operator PULL T8, -T10, -T15 / Master-Slave Angle with DIN rail: Mounting of additional equipment e.g. with GSM 400 • Depending on the accessory either the DIN rail (H) or the angle with DIN rail (W) can be be used, the fixation in the drive takes place with three screws at the positions (P).

  • Page 28: Initial Operation

    Putting into operation PULL T8, -T10, -T15 / Master-Slave Important: preparation works • Connect command devices of the master operator, safety equipment and motors following the safety regulations. Attention: if no stop button connected at the master/slave control unit, terminals 31/37 of the corresponding control (master and / or slave) must be bridged •...
  • Page 29 Main safety edge $$$$$$$$$$$$$$$$ Main safety edge $$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$ active Confirm $$$$$$$$$$$$$$$$ Main safety edge $$$$$$$$$$$$$$$$ not active Confirm additional options (with „-“ button): radio edge TX  TX 400  - 29 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...
  • Page 30 $$$$$$$$$$$$$$$$ Ready for use $$$$$$$$$$$$$$$$ Side safety edge triggered. This would $$$$$$$$$$$$$$$$ lead to an interruption of the programming process. $$$$$$$$$$$$$$$$ System test $$$$$$$$$$$$$$$$ PULL T Slave - 30 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...
  • Page 31 • The product may only be used in accordance with its original purpose, for which it has been exclusively designed, and which is described in these installation and operating instructions (especially children have to be instructed). The TOUSEK Ges.m.b.H. rejects any liability if the product is used in any way not fully conforming to its original purpose as stated herein.

  • Page 32: Error Diagnosis

    Troubleshooting guide Sliding gate operator PULL T8, -T10, -T15 / Master-Slave Error Possible reason Solution stop-button not connected or not stop-button (Kl. ) connect or bridge > display: „Stop-button released“ bridged use status display for help check correct connection hence display: „Photocell released“...

  • Page 33: Cable Plan

    - 33 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020...

  • Page 34: 11. Dimensioned Drawing

    11. Dimensioned drawing Sliding gate operator PULL T8, -T10, -T15 / Master-Slave • Dimensions in mm 206,5 (1) lockable emergency release (euro standard cylinder) (2) gear wheel (3) cable entrance (4) ground plate (4a) slotted holes (4x) for mounting on foundation...

  • Page 35: Declaration Of Incorporation

    Date/ Signature TOUSEK Ges.m.b.H., A1230 Wien, Zetschegasse 1, Österreich is authorized to compile the technical documentation. The incomplete machine cannot be put into service, until it...
  • Page 36 Buitenheide 2A/ 1 Tel. +32/ 11/ 91 61 60 your service partner: Fax +32/ 11/ 96 87 05 info@tousek.be Tousek Sp. z o.o. Poland PL 43-190 Mikołów (k/Katowic) Gliwicka 67 Tel. +48/ 32/ 738 53 65 Fax +48/ 32/ 738 53 66 info@tousek.pl...
