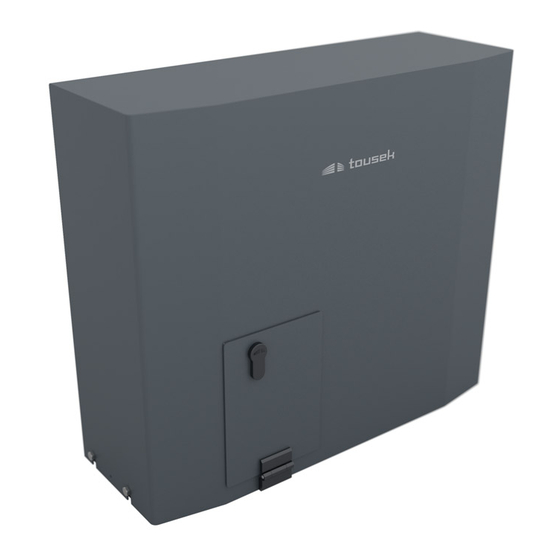

- Page 1 Mounting and installation manual Sliding gate operators TPS 6speed, TPS 10speed V 2.6.006 30m/min TPS 6speed: 20m/min TPS 10speed: Safety Sensor...
-
Page 2: Table Of Contents
Declaration of incorporation ........................... 35 This manual is the sole property of the TOUSEK Ges.m.b.H. and may not be made available to competitors. All rights reserved. No part of it may be reproduced without our prior written permission. We will not accept liability for any claims resulting from misprints or errors. This edition of the manual replaces all earlier publications of the same. -
Page 3: General Warning And Safety Notes
EU and in the individual countries have to be strictly followed. • The TOUSEK Ges.m.b.H. cannot be held liable for any claims resulting from disregards of the laws and standards in force during the installation and operation. -
Page 4: General Product Features, Function, Technical Data
• Up to 20m/min the protection of closing edges takes placewith safety sensing edges TXK105. For speeds above the danger zones can be protected with the installation of separating guards. (s. EN 12453:2000 5.1.1) or in dead man operation. - 4 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... -
Page 5: Installation
• The motor is height adjustable: To adjust the gear wheel height, the head screws (8 + 9) must be solved. After adjustment of the height by adjusting of screw (7), the screws (8 + 9) must be tightened again. - 5 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... - Page 6 Gear wheel Z20M4 Emergency release (30) Profile half cylinder of the housing flap for emergency release (10) Cable inlet (11) Slotted holes (4x) for connection on the ground Z20M4 126,5 - 6 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
-
Page 7: Emergency Release In Case Of Power Failure (Note For The User)
Important: To return to normal motor operation please turn the lever back to its locked position and slowly move the gate manually in its travel direction until you can hear that the gearing has re-engaged! locked unlocked - 7 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... -
Page 8: Control Box
- Should the DC-Bus-condensers not fully discharge please contact manufacturer. Do not try to repair yourself. • Mount all covers and before switching on the supply or before starting and stopping the converter. - 8 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... - Page 9 • The 230Va.c. supply must be connected to the Control circuit board with display and four terminal block 16 on the DIN rail. programming buttons +, -, ENTER und ESC - 9 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
- Page 10 Connection slot for optional module page 22) The optional „tousek-connect“ or the (23) Fuse T 1A „tousek service interface“ must be (24) Transformer connected with socket (18)! (25) Jumper (must be set !) - 10 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
- Page 11 Terminal block 16 (on the DIN rail) Important: power supply / Grounding The 230V a.c. The power supply and the grounding must be connected to the terminal block 16, on the DIN rail as shown! - 11 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
-
Page 12: Programming, Menu Structure
The different menu points are indicated as follows: = selectable settings = factory settings = status display shows the menu points which are in the “ BASIC SETTINGS” - 12 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... - Page 13 Serial number show serial number protocol show protocol notes status sensor show sensor ENTER integrated control board for sliding gate operator TPS 6(10)speed - 13 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
-
Page 14: 3.5 Connections And Adjustments
Partial opening: The contact at terminals: 30/34 will be used as pedestrian button. Impulse OPEN: The contact at terminals: 30/34 works as a second impulse button with the fixed adjustment „OPEN“. - 14 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... - Page 15 Illumination 10s (terminals: 10/11) Buttons / switches not active active: Output Illumination (terminals:10/11) active: e.g. for illuminating the door for the duration of the movement plus 10 seconds. - 15 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
-
Page 16: Safety
during closing stop, then close: an interruption of the photocell during closing makes the motor stop as long as the photocell stays interrupted. After release of the photocell, the gate closes. - 16 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... - Page 17 • The photocell self-test can only be deactivated by selecting „not active“. • The deactivation of the self-test function is only permitted if the safety installations correspond to the category 3 ! Photocell Tousek LS 45/2 - connection examples Back area photocell 2 Photocells...
-
Page 18: Safety Edges
• Up to 20m/min the protection of closing edges takes place with safety sensing edges TXK105. • TPS 6speed: For speeds > 20m/min the danger zones can be protected with the installation of separating guards. (s. EN 12453:2000 5.1.1) or in dead man operation. - Page 19 • Connection and detailed information of radio transmission system TX 310 see according manual. Inductive system TX 400i • Connection and detailed information of inductive system TX 400i see according manual. - 19 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
-
Page 20: Motor
Deleting the end positions by selecting „diagnosis / delete positions“ effects the reset of this setting. Attention With force adjustment the valid safety regulations and standards have to be strictly followed ! - 20 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... -
Page 21: Operating Mode
0 = signal contact open, 1= signal contact closed Only if an additional module ( page 22) is installed you can carry out one of these adjustments (courtyard-/control lamp hence gate status 1 or 2). - 21 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... - Page 22 ( 2 8 ) can be connected: • Contact load: 12 13 70 71 90 91 92 93 24Vd.c., max. 2W 24Va.c./d.c., max. 10W - 22 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
-
Page 23: Lights/Lamps
If the gate is closed, the pilot lamp expires Illuminates in open position: Pilot lamp is illuminated as soon as the gate has reached end position open. - 23 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... -
Page 24: Diagnosis
DAYS HOURS : MINUTES : SECONDS $$$$$$$$$$$$$$$$ T -00 00:00:00.0 $$$$$$$$$$$$$$$$ Event Type of event Status Sensor Diagnosis Degree and sign al strenght of rotation speed sensor is shown on display. - 24 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... -
Page 25: Connection Of Radio Receiver
(21) as shown in the picture. entry mode switch. • To increase the range an external antenna FK433 or FK868 • For programming of receiver please manual for radio can be connected. receiver. - 25 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... -
Page 26: Putting Into Operation
• The next programming adjustments are made in the main settings menu ( page 12, 13). Factory settings change ? YES $$$$$$$$$$$$$$$$ Photocell $$$$$$$$$$$$$$$$ Photocell $$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$ active confirm $$$$$$$$$$$$$$$$ Photocell $$$$$$$$$$$$$$$$ not active - 26 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... - Page 27 10s „Opening direction“ is only selectable with automatic positioning change ? YES $$$$$$$$$$$$$$$$ Opening direct. $$$$$$$$$$$$$$$$ Opening direct. $$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$ <<<--- left confirm $$$$$$$$$$$$$$$$ Opening direct. $$$$$$$$$$$$$$$$ --->>> right - 27 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
- Page 28 • After giving the impulse to automatically detect the end posi- tions, no other impulse must be given. Also the safety devices mustn´t be triggered. This would lead to an interruption of the programming process. - 28 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
- Page 29 • The product may only be used in accordance with its original purpose, for which it has been exclusively designed, and which is described in these installation and operating instructions (especially children have to be instructed). The TOUSEK Ges.m.b.H. rejects any liability if the product is used in any way not fully conforming to its original purpose as stated herein.
-
Page 30: Troubleshooting Guide
Check the commander: Duration command is present Entry to control menu not possible terminals 30/32: Impulse button (Impulse-, pedestrian button) terminals 30/34: pedestrian button - 30 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... -
Page 31: Cable Plan
- 31 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... -
Page 32: Dimensioned Drawings
8.1 Dimensioned drawing TPS 6(10)speed • Dimensions in mm Z20M4 126,5 Schnitt A-A We reserve the right to change dimensions and technical specifications without prior notice. - 32 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019... - Page 33 8.2 Dimensioned drawing Distance console for TPS 6(10)speed • Dimensions in mm We reserve the right to change dimensions and technical specifications without prior notice. - 33 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
- Page 34 - 34 - tousek / E_TPS-6-10speed_00 / 13. 05. 2019...
-
Page 35: Declaration Of Incorporation
Directives mentioned above. The validity TPS-10, -20, -20N, -20 PRO, -20 Master/Slave, of this declaration will cease in case of any unauthorized TPS 35 PRO, TPS 40 PRO, TPS 60 PRO, TPS 6speed, modifications to the products. TPS 10speed... - Page 36 Buitenheide 2A/ 1 Tel. +32/ 11/ 91 61 60 your service partner: Fax +32/ 11/ 96 87 05 info@tousek.nl Tousek Sp. z o.o. Poland PL 43-190 Mikołów (k/Katowic) Gliwicka 67 Tel. +48/ 32/ 738 53 65 Fax +48/ 32/ 738 53 66 info@tousek.pl...
