Introduction

The F600 is a simple and flexible range of drives from 1.1 kW to 280 kW in 9 frame sizes and four
input voltage ranges (200 V, 400 V, 575 V and 690 V).
This Step-by Step guide provides simple instructions on how to mount the drive, fuse and cable
selection, wiring the drive-up, programming the drive and running the motor keypad mode on
frames 3 to 11.
The following information is available for download at 'www.controltechniques.com/support':
• F600 User Guide
There is also a guided set-up contained in the software tool Connect available from:
https://acim.nidec.com/drives/control-techniques/downloads
• F600 Parameter Reference Guide
Features of the drive

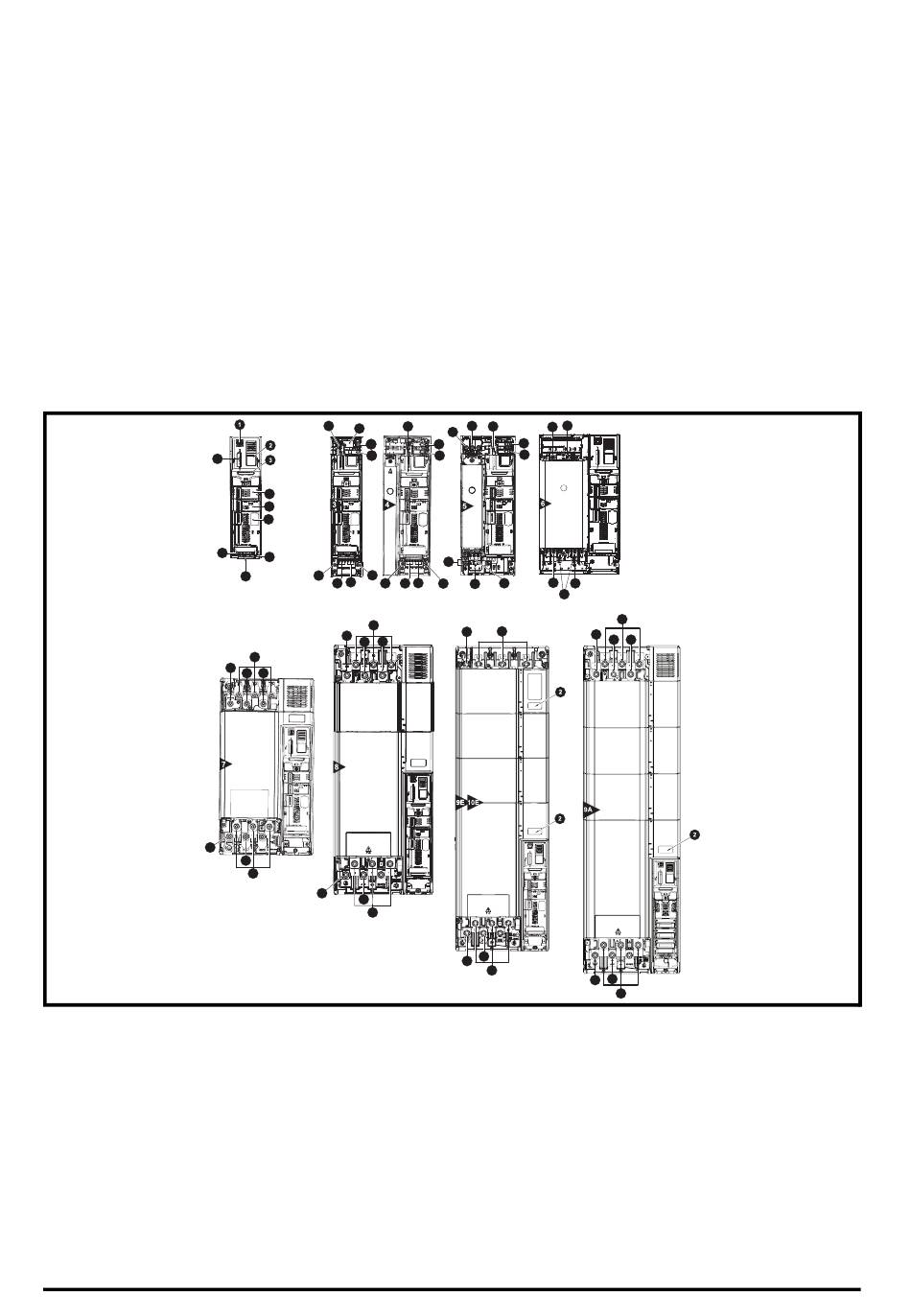

Figure 1-1 Feature diagram for frame sizes 3 to 10
Common
control pod
10
16
Key
1. Keypad connection
2. Rating label
3. Identification label
4. Option module slot 1
5. Option module slot 2
6. Option module slot 3
7. Relay connections
8. Control connections
F600 Step By Step Guide
10
11
12
13
4
5
6
8
7
16 16
9
13
15 16
15
16
12 13
15
16
12 13
12
14
16
12
14
13 13
10 10 12
12
12
12
13
13
16
14 16 15 14
15 14 15
16
16 15
12
16
14
9. Communications port
10. NV media card slot
11. Internal EMC filter
12. DC bus +
13. DC bus -
14. Motor connections
15. AC supply connections
16. Ground connections
Power stages
15
16
12 13
12
16
14
