RightAngle NewHeights Series Assembly Instructions Manual

K&A MANUFACTURING
6703 ZINSER ST., SCHOFIELD, WI 54476
PHONE: 800.298.4351 FAX: 866.882.9475
www.raproducts.com
VERSION DATED: 1/23/14
READ ALL THE INSTRUCTIONS BEFORE BEGINNING
INSTRUCTIONS FOR INSTALLING A TRACK ON
THIS WORKSTATION ARE SHOWN ON PAGE 6 OF 6.
ITEM # PART #
1 VARIES NewHeights SERIES 4 LT WORKSURFACE(S)
2 35UP 3x5 WORKSURFACE JOINER PLATE
3 51708 M5 x 18mm SQ/PH/WSHR HEAD WOOD SCREW VARIES
4 VARIES NewHeights SERIES 4 LT LEG ASSEMBLY
5 801064 LT MOTOR & BRACKET ASSEMBLY
6 53013 SPLIT LOCK WASHER 1/4"
7 53055 SOCKET HEAD CAP SCREW 1/4-20x7/16
8 801071 NewHeights SERIES 4 HEX ROD ASSEMBLY
9 VARIES NewHeights SERIES 4 CROSS SUPPORT
10 53194 5/16-18 WELD NUT 1.375" CL'S
11 53025 5/16 LOCK WASHER
12 53024 5/16-18 x 1/2 BUTTON HEAD SOCKET SCREW
13 800934 CROSS SUPPORT END CAP
14 801234 3rd LEG HEX ROD
15 801218 SERIES 4 3-LEG CROSS SUPPORT L BRACKET
16 VARIES LT U-Channel
17 53247 LT 3-LEG CONTROL BOX
18 52989 NewHeights SERIES 4 LT HAND SWITCH
19 52900 6 x 3/4 PHILLIPS PAN HEAD SHEET METAL SCREW
20 52604 3/16" CABLE CLAMP
21 52855 10 x 5/8 PHILLIPS TRUSS HEAD SCREW
INSTRUCTION # 53233
TOOLS REQUIRED FOR ASSEMBLY:
CORDLESS DRILL
#2 PHILLIPS HEAD DRIVER BIT
#2 SQUARE HEAD DRIVER BIT
7/32" HEX HEAD DRIVER BIT OR
ALLEN WRENCH
ADJUSTABLE WRENCH
TAPE MEASURE
LEVEL
DESCRIPTION
HARDWARE PACK # 53023
NewHeights SERIES 4 LT WORKSTATION ASSEMBLY INSTRUCTIONS:

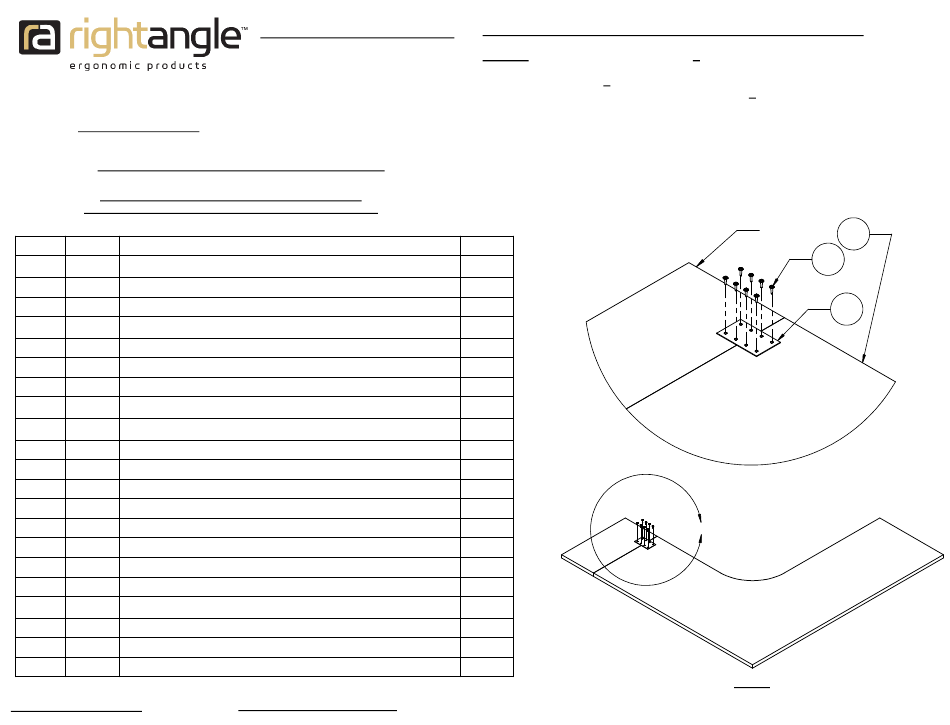

STEP 1: LAY THE WORKSURFACE(S) 1 ON A PROTECTED SURFACE WITH THE
PILOT HOLES FACING UP. IF YOUR WORKSURFACE HAS A SEAM, LAY THE
35UP JOINER PLATE 2 CENTERED ON THE SEAM AND ABOUT 3" FROM THE
FRONT. ATTACH IT WITH (8) WOOD SCREWS 3 . NO PILOT HOLES ARE
PROVIDED FOR THE JOINER PLATE. DO NOT OVER-TIGHTEN THE SCREWS.
USE A LOW TORQUE SETTING ON THE DRILL.
QTY.
VARIES
VARIES
3
2
4
4
1
2
2
10
10
4
1
1
VARIES
1
1
2
1
1
FRONT
1
3
2
DETAIL A
A
STEP 1
PAGE 1 OF 6
