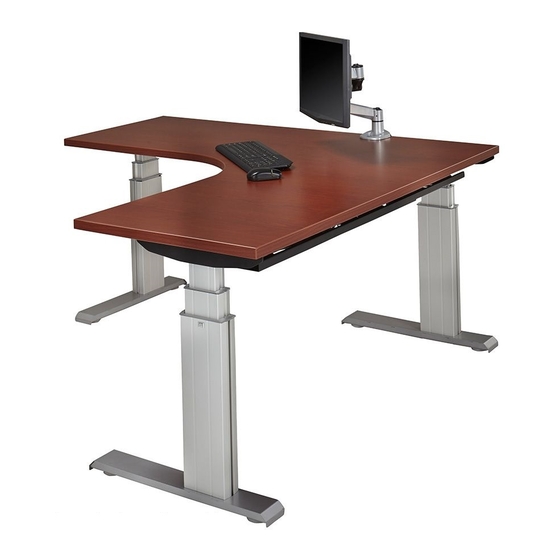

RightAngle NewHeights ELECTRIC HEIGHT ADJUSTABLE WORKSTATION Instructions

K&A MANUFACTURING
6703 ZINSER ST., SCHOFIELD, WI 54476
PHONE: 800.298.4351 FAX: 866.882.9475
www.raproducts.com
VERSION DATED: 10/30/14
WIRING DIAGRAM
HS
M1 M2
HAND RH
COLUMN
SWITCH COLUMN
HAND SWITCH WIRE
DISCONNECT
INSTRUCTION # 53088
INSTRUCTIONS TO REPLACE CORDS ON NewHeights WORKSTATIONS:
STEP 1: UNPLUG THE POWER CORD FOR THE CONTROL BOX.
STEP 2: DISCONNECT THE LEFT AND RIGHT HAND COLUMN CORDS FROM THE CONTROL BOX.
STEP 3:DISCONNECT THE CORDS FROM THE SHORT CORD TAILS COMING OUT OF THE RIGHT AND LEFT HAND
COLUMNS.
STEP 4: DISCONNECT THE CORD FRON THE CENTER LEG IF YOU HAVE A 3-LEG WORKSTATION.
STEP 5: REMOVE THE OLD CORDS FROM THE WIRE MANAGEMENT J-CHANNELS OR U-CHANNEL.
STEP 6: RUN THE NEW CORDS THROUGH THE WIRE MANAGEMENT COMPONENTS. PLACE THE EXCESS CORD IN
M3
THE WIRE MANAGEMENT,
STEP 7: RE-CONNECT THE CORDS TO THE CONTROL BOX AND THE CORD TAILS COMING OUT OF THE COLUMNS.
THE HOOKS MUST LOCK ONTO THE TABS AT THE CORD CONNECTION. FOLLOW THE RESET PROCEDURES ON PAGE 2.
CENTER
LH
COLUMN
(3-LEG)
DISCONNECT
NOTE: CROSS SUPPORT NOT SHOWN
ON THIS VIEW SO OTHER COMPONENTS
ARE VISIBLE.
HAND SWITCH
BOTTOM VIEW OF WIRE RUNS
RIGHT COLUMN WIRE
LEFT COLUMN WIRE
THIS SMALL TAB MUST GO UNDER
THE LOCK ON THE MOTOR CORD
THIS END GOES
TO COLUMNS
THIS END GOES
TO CONTROL BOX
PAGE 1 OF 2
