K&A MANUFACTURING
6703 ZINSER ST., SCHOFIELD, WI 54476
PHONE: 800.298.4351 FAX: 866.882.9475
www.raproducts.com
VERSION DATED: 12/4/12
READ ALL THE INSTRUCTIONS BEFORE BEGINNING
METAL INSERTS
DO NOT USE ON NewFixed
INSTRUCTION # 51310
TOOLS REQUIRED FOR ASSEMBLY:
CORDLESS DRILL WITH
#2 PHILLIPS HEAD DRIVER BIT OR
#2 SQUARE HEAD DRIVER BIT
7/32" HEX HEAD BIT OR ALLEN
WRENCH PROVIDED
TAPE MEASURE
LEVEL
NewFixed RIGHT COLUMN
NewFixed RIGHT COLUMN
(3-5) PILOT HOLES; DO NOT USE.
METAL INSERTS (8) DO NOT USE
PILOT HOLES

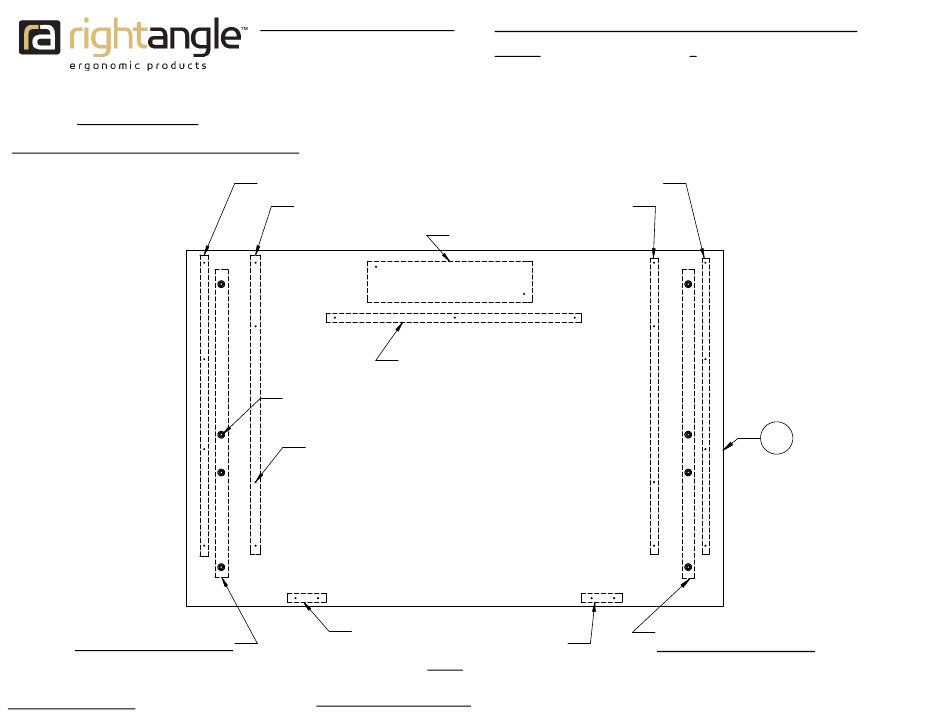

DIAGRAM 1
BOTTOM VIEW OF WORKSURFACE. SIZES VARY
PILOT HOLES (2)
DO NOT USE
STEP 1
HARDWARE PACK # 52226
NewFixed™ HEIGHT WORKSTATION ASSEMBLY INSTRUCTIONS:
STEP 1: LAY THE WORKSURFACE 1 ON A PROTECTED SURFACE WITH THE
PILOT HOLES AND INSERTS FACING UP. DETERMINE FROM DIAGRAM 1
BELOW WHICH PILOT HOLES YOU WILL USE TO ASSEMBLE YOUR WORK-
STATION. THE WORKSURFACE IS A UNIVERSAL DESIGN WITH HOLES PRE-
DRILLED FOR MULTIPLE WORKSTATION MODELS. FOR NewFixed WORK-
STATIONS, USE ONLY THE PRE-DRILLED PILOT HOLES AS INDICATED.
DISREGARD HOLES INDICATED "DO NOT USE." THESE ARE NOT APPLICABLE
TO THIS MODEL.
NewFixed LEFT COLUMN
NewFixed LEFT COLUMN
PILOT HOLES (2) DO NOT USE
PILOT HOLES (2)
DO NOT USE
1
METAL INSERTS
DO NOT USE ON NewFixed
PAGE 1 OF 3
