RightAngle NewHeights 4 Series Instructions Manual

Vuelta crank height adjustable workstation
Hide thumbs Also See for NewHeights 4 Series:

Advertisement

Instruction # 53520
K&A Manufacturing
6703 Zinser Street
Schofield, WI 54476
Phone: 800.298.4351
Fax: 866.882.9475
www.raproducts.com
Version Dated: 8/8/16

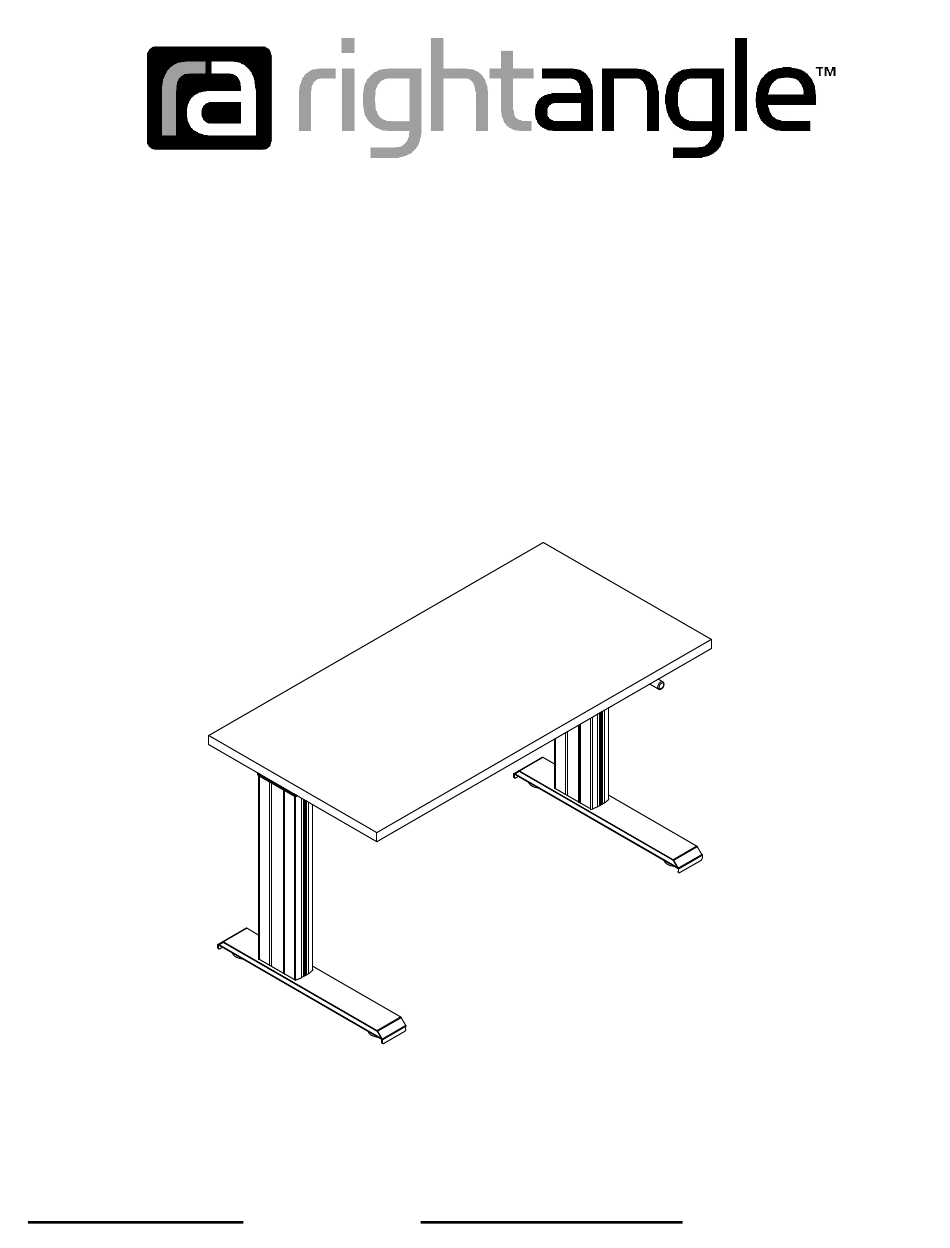

NewHeights Series 4
Vuelta Crank Height
Adjustable Workstation
Read all the instructions before beginning.
Hardware Pack # 53507
Page1 OF 8
