K&A MANUFACTURING
6703 ZINSER ST., SCHOFIELD, WI 54476
PHONE: 800.298.4351 FAX: 866.882.9475
www.raproducts.com
VERSION DATED: 8/21/12
3
STEPS 1-5
INSTRUCTION # 52445
TOOLS REQUIRED FOR ASSEMBLY:
CORDLESS DRILL
#2 PHILLIPS HEAD DRIVER BIT OR
#2 SQUARE HEAD DRIVER BIT
LEVEL
READ ALL THE INSTRUCTIONS
BEFORE BEGINNING
7
6
5
1
3
8
2
STEP 6
R-STYLE PLAN 110 (24" DEEP) AND PLAN 120 (30" DEEP) WORKSTATION
ASSEMBLY INSTRUCTIONS:

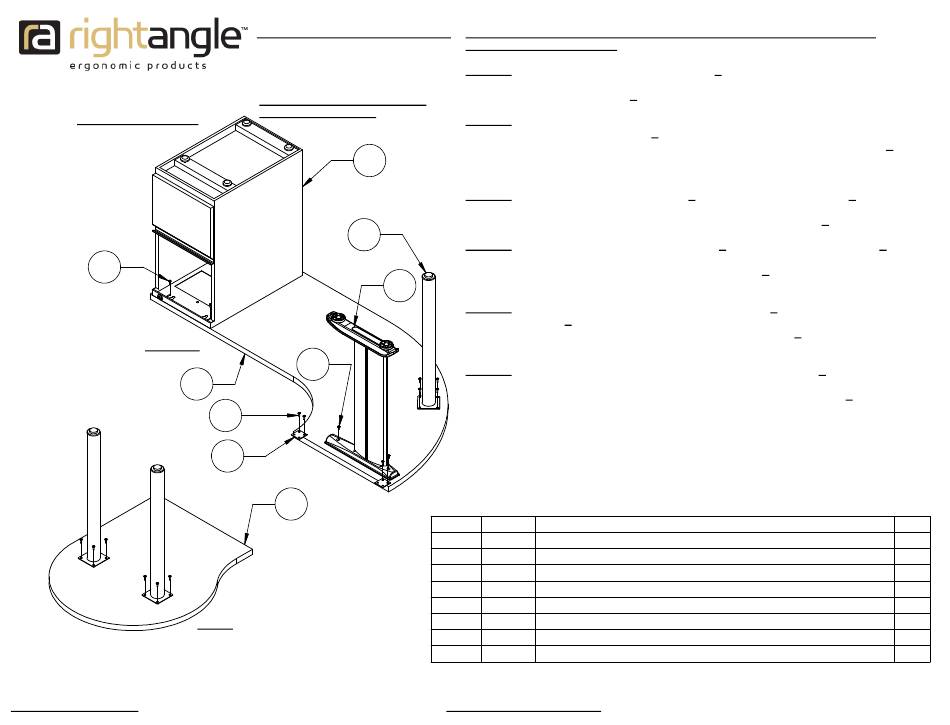

STEP 1: LAY THE CURVED WORKSURFACE 1 ON A PROTECTED SURFACE WITH
THE INSERTS AND PILOT HOLES FACING UP. REMOVE THE TOP DRAWERS FROM
THE STATIONARY PEDESTAL 7 FOR ACCESS TO THE SCREW HOLES.
STEP 2: PLACE THE PEDESTAL ON THE WORKSURFACE BACK 1/8" FROM THE
FRONT OF THE WORKSURFACE 1 AND 1/2" IN FROM THE END OF THE WORK-
SURFACE. ATTACH IT TO THE WORKSURFACE WITH (6) WOOD SCREWS 3 .
DO NOT OVER-TIGHTEN THE SCREWS. USE A LOW TORQUE SETTING ON THE
DRILL.
STEP 3: PLACE (1) OF THE POST LEGS 6 ON THE WORKSURFACE 1 ALIGNING
THE HOLES IN THE SQUARE PLATE WITH THE PILOT HOLES IN THE WORKSURFACE.
ATTACH IT TO THE WORKSURFACE WITH (4) WOOD SCREWS 3 .
STEP 4: PLACE THE R-STYLE LEG ASSEMBLY 4
ALIGNING THE HOLES IN THE LEG WITH THE THREADED INSERTS IN THE WORK-
SURFACE. ATTACH IT WITH (2) MACHINE SCREWS
INSERTS.
4
STEP 5:
CENTER (2) WORKSURFACE JOINER PLATES
WORKSURFACE
1
THEM TO THE WORKSURFACE WITH (4) WOOD SCREWS
ARE PROVIDED FOR THESE.
STEP 6: PLACE (2) POST LEGS ON THE BULB WORKSURFACE
HOLES IN THE SQUARE PLATES WITH THE PILOT HOLES IN THE WORKSURFACE.
ATTACH THEM TO THE WORKSURFACE WITH (8) WOOD SCREWS
NOTE: THE WORKSTATION CONFIGURATION MAY BE RIGHT OR
LEFT HAND. THE PEDESTAL MAY BE A BOX/BOX/FILE OR IT MAY
BE A FILE/FILE CONFIGURATION. THE WORKSTATION MAY BE 24"
OR 30" DEEP.
ITEM # PART #
1
VARIES CURVED WORKSURFACE
2
VARIES BULB WORKSURFACE
3
51708 M5 x 18mm SQ/PH/WSHR HEAD WOOD SCREW
4
VARIES R-STYLE LEG ASSEMBLY
5
50133 10-32 x 1/2 PHILLIPS TRUSS HEAD MACHINE SCREW 2
6
29SL 29SL POST LEG
7
VARIES STATIONARY PEDESTAL
8
800512 2 X 2 WORKSURFACE JOINER PLATE
HARDWARE PACK # 52444
ON THE WORKSURFACE
AND 1/2" IN FROM THE FRONT AND BACK EDGES. ATTACH
DESCRIPTION
1
5
THREADED INTO THE
8
ON THE EDGE OF THE
3
. NO PILOT HOLES
2 ALIGNING THE
3
.
QTY.
1
1
26
1
3
1
2
PAGE 1 OF 2
