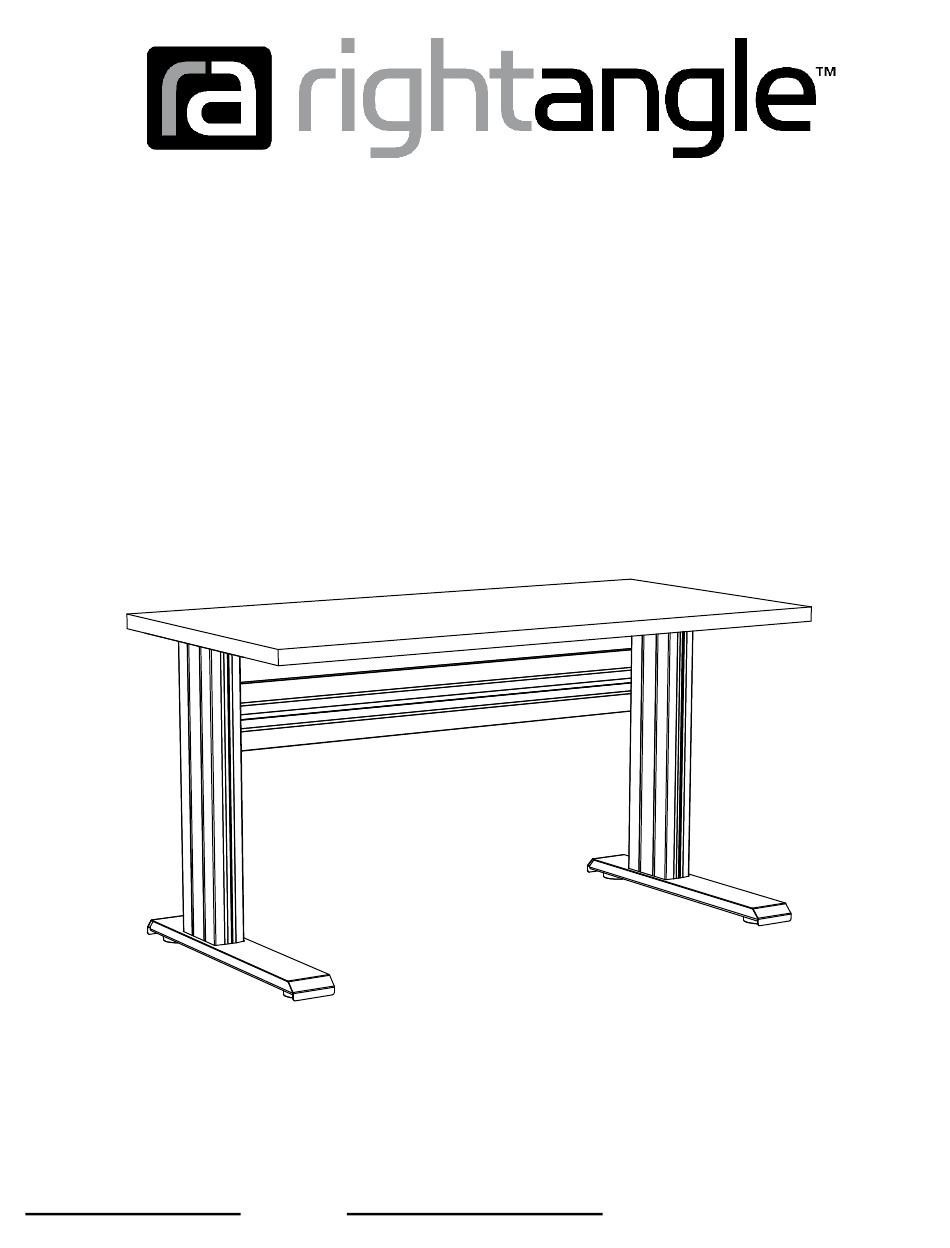

NewHeights™ Series 4 FD Fixed Height
Workstation Assembly Instructions
Instruction # 53205
K&A Manufacturing
6703 Zinser Street
Schofield, WI 54476
Phone: 800.298.4351
Fax: 866.882.9475
www.raproducts.com
Version Dated: 7/11/16
Read all the instructions before beginning.
Hardware Pack # 53023
Page1 OF 6
Advertisement
Table of Contents
Related Manuals for RightAngle NewHeights 4 FD Series
Summary of Contents for RightAngle NewHeights 4 FD Series
- Page 1 K&A Manufacturing 6703 Zinser Street Schofield, WI 54476 Phone: 800.298.4351 Fax: 866.882.9475 www.raproducts.com Version Dated: 7/11/16 NewHeights™ Series 4 FD Fixed Height Workstation Assembly Instructions Read all the instructions before beginning. Instruction # 53205 Hardware Pack # 53023 Page1 OF 6...
- Page 2 Tools Required for Assembly: Power Driver W/Adjustable Torque #2 Phillips Head Driver Bit K&A Manufacturing #2 Square Head Driver Bit 6703 Zinser Street Schofield, WI 54476 Phone: 800.298.4351 3/16" Hex Head Driver Bit or Fax: 866.882.9475 Allen Wrench www.raproducts.com Tape Measure Level 51708 53638...
- Page 3 Step 1: Lay the worksurface 1 on a protected surface with the pilot holes facing up. Align the holes in the worksurface supports on the leg assemblies 2 with K&A Manufacturing 6703 Zinser Street Schofield, WI 54476 the pilot holes in the worksurface. The leg assemblies Phone: 800.298.4351 Fax: 866.882.9475 are interchangeable.
- Page 4 Step 3: With the help of an assistant align the cross support 4 with the stickers on both leg assemblies. See below. Insert (4) socket screws 7 through the holes in the ends of the cross support and thread them into the weld nuts that are held in place by the stickers.
- Page 5 Step 5: Fully tighten the (8) wood screws 3 at the corners of the worksurface supports. Do not over- tighten the screws. Use a low torque setting on the K&A Manufacturing 6703 Zinser Street Schofield, WI 54476 power driver. Add (8) more wood screws in the Phone: 800.298.4351 Fax: 866.882.9475 remaining holes in the worksurface supports.
- Page 6 Instructions To Install a Track on a Series 4 FD Workstation: K&A Manufacturing Step 1: Place the front of the track A against the 6703 Zinser Street Schofield, WI 54476 bottom of the worksurface and the back of the track Phone: 800.298.4351 Fax: 866.882.9475 on the angled part of the u-channel.
