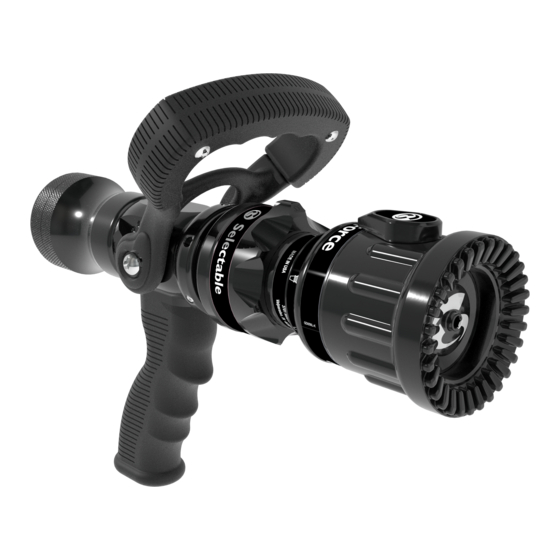

Task Force Tips G-Force GDPC3F2F Instructions For Safe Operation And Maintenance

Selectable nozzle

Advertisement

Quick Links

G-Force
INSTRUCTION FOR SAFE OPERATION AND MAINTENANCE
WARNING
©Copyright Task Force Tips LLC 2011-2021
G-Force Selectable Nozzle
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/serial-
number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
Model GDPC3F2F
G-Force GDPC3F2F
Selectable EN 100/235/400 l/min @ 6 bar
with Lever Type Valve Handle,
Tactile Indicator with Pattern Detent,
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
1
and Pistol Grip
800-348-2686 · 219-462-6161 · Fax 219-464-7155
LIG-014 March 19, 2021 Rev00

Advertisement

loading
Need help?

Need help?

Do you have a question about the G-Force GDPC3F2F and is the answer not in the manual?

Questions and answers

Summary of Contents for Task Force Tips G-Force GDPC3F2F

  • Page 1 Selectable EN 100/235/400 l/min @ 6 bar with Lever Type Valve Handle, Tactile Indicator with Pattern Detent, and Pistol Grip 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 ©Copyright Task Force Tips LLC 2011-2021 LIG-014 March 19, 2021 Rev00...
  • Page 2 SUPPORTING MATERIALS The following documents contain supporting safety and operating information pertaining to the equipment described in this manual. LTT-108 LIA-025 Instruction: Pistol Grip Manual: Foam Aspirators Replacement Kit ©Copyright Task Force Tips LLC 2011-2021 LIG-014 March 19, 2021 Rev00...
  • Page 3: Table Of Contents

    9.0 MAINTENANCE 9.1 FIELD LUBRICATION 9.2 FIELD LUBRICATION (SLIDE VALVE AND PATTERN CONTROLS) 9.3 SERVICE TESTING 9.4 REPAIR 10.0 EXPLODED VIEWS AND PARTS LISTS 11.0 OPERATION AND INSPECTION CHECKLIST ©Copyright Task Force Tips LLC 2011-2021 LIG-014 March 19, 2021 Rev00...
  • Page 4: Meaning Of Safety Signal Words

    Do not direct water stream to cause injury or damage to persons or property. To prevent mechanical damage, do not drop or throw equipment. ©Copyright Task Force Tips LLC 2011-2021 LIG-014 March 19, 2021 Rev00...
  • Page 5: General Information

    GENERAL INFORMATION The Task Force Tips G-Force GDPC3F2F nozzle is designed to provide excellent performance under most fire fighting conditions. The rugged construction is compatible with the use of fresh water as well as fire fighting foam solutions. The compact 1.0” size has selectable flow rates of 100/235/400 L/min @ 6 bar.
  • Page 6: Flow Characteristics

    A selectable G-Force nozzle has several fixed discharge orifices and a flush setting. A particular orifice is selected by rotating the selector ring. GDPC3F2F 400 l/min 235 l/min 100 l/min Pressure (bar) (l/min) Reach (meters) Flow Straight Narrow Wide Figure 4.1 ©Copyright Task Force Tips LLC 2011-2021 LIG-014 March 19, 2021 Rev00...
  • Page 7: Nozzle Controls

    Care must be taken to avoid dents or nicks in the nozzle tip. Turning the shaper further forward will cause stream crossover and reduce the reach of the nozzle. FLOW FLOW COUNTER- CLOCKWISE CLOCKWISE Figure 5.2 ©Copyright Task Force Tips LLC 2011-2021 LIG-014 March 19, 2021 Rev00...
  • Page 8: Shaper Tactile Indicator

    Large amounts or pieces of debris may be unflushable and can reduce the flow of the nozzle WARNING resulting in an ineffective flow. In the event of a blockage, it may be necessary to retreat to a safe area, uncouple the nozzle and remove debris. ©Copyright Task Force Tips LLC 2011-2021 LIG-014 March 19, 2021 Rev00...
  • Page 9: Use With Foam

    - Gray Preconnect #3 Yellow - Pink Preconnect #4 White - Purple Preconnect #5 Blue - Tan Preconnect #6 Black Preconnect #7 Green Foam Lines Red w/ White Border (Red/White) ©Copyright Task Force Tips LLC 2011-2021 LIG-014 March 19, 2021 Rev00...
  • Page 10: Warranty

    WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase.
  • Page 11: Maintenance

    FIELD LUBRICATION All Task Force Tips nozzles are factory lubricated with high quality silicone grease. This lubricant has excellent wash out resistance, providing long term performance in firefighting nozzles. If your agency has unusually hard or sandy water, the moving parts of the nozzle may be affected.
  • Page 12: Service Testing

    Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides.
