Comeup 150583 380V50Hz Manual

Introduction

 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 29 m
10-15 m/min at 50Hz ; 12-18m/min at 60Hz
Lifting speed:
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 6 mm x 30 m
．Weight hook CHW-0031
．Pendant switch PB-331 w/cord 2.0 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part

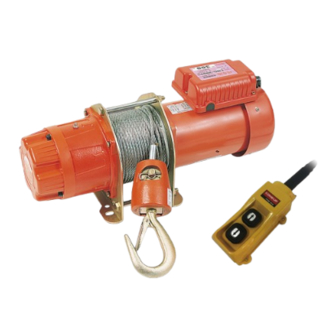

Electric Winch
CWG-30075
Model:
PN : 150583 380V50Hz 153400 400V50Hz
154155 415V50Hz
931075 380V60Hz
2
x 5C x 3 m

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor
Recommend
Wire Rope
Rated Load
(kg)
st
1
Speed
Layer
(m/min)
Rope-Winding Cumulating
Sum (m)
Rated Load
(kg)
th
4
Speed
Layer
(m/min)
Rope-Winding Cumulating
Sum (m)

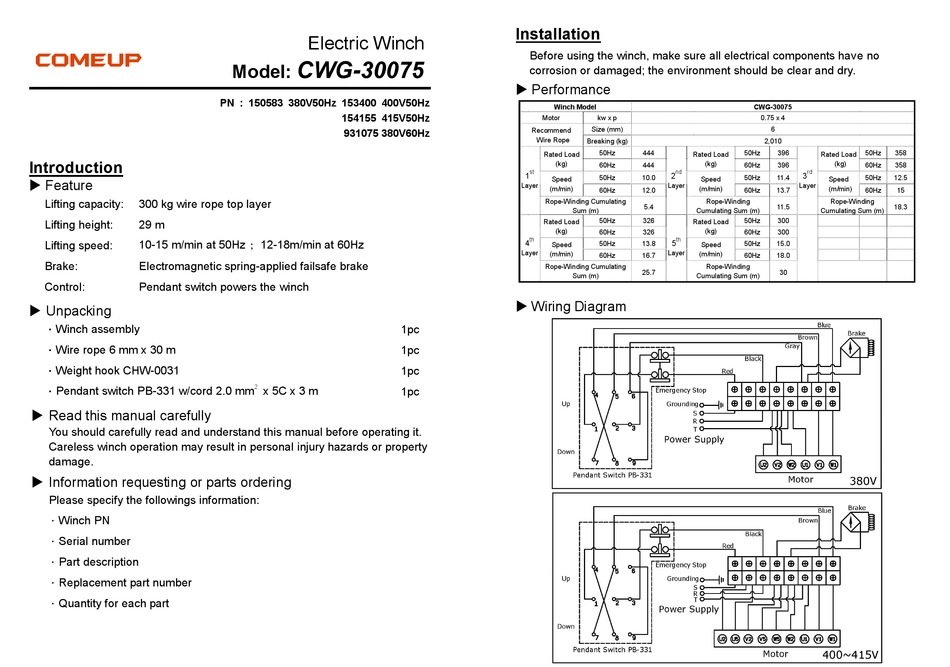

 Wiring Diagram
1pc
1pc
1pc
1pc
CWG-30075
kw x p 0.75 x 4
Size (mm)
Breaking (kg) 2,010
50Hz 444 50Hz
Rated Load
(kg)
60Hz 444 60Hz
nd
2
50Hz 10.0 50Hz
Speed
Layer
(m/min)
60Hz 12.0 60Hz
Rope-Winding
5.4
Cumulating Sum (m)
50Hz 326 50Hz
Rated Load
(kg)
60Hz 326 60Hz
th
5
50Hz 13.8 50Hz
Speed
Layer
(m/min)
60Hz 16.7 60Hz
Rope-Winding
25.7
Cumulating Sum (m)
6
396 50Hz 358
Rated Load
(kg)
396 60Hz 358
rd
3
11.4 50Hz 12.5
Speed
Layer
(m/min)
13.7 60Hz 15
Rope-Winding
11.5 18.3
Cumulating Sum (m)
300
300
15.0
18.0
30
