Comeup CWG-30750 Manual

Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Control:
Unpacking
．Winch assembly
．Wire rope 16 mm x 100 m w/safety hook
．Low voltage control ass'y LV-320
．Pendant switch PB-306 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
2,200 kg at 50Hz wire rope top layer
97 m
4P: 6.9-12.6 m/min at 50Hz
Electromagnetic spring-applied failsafe brake
Pendant switch powers the winch

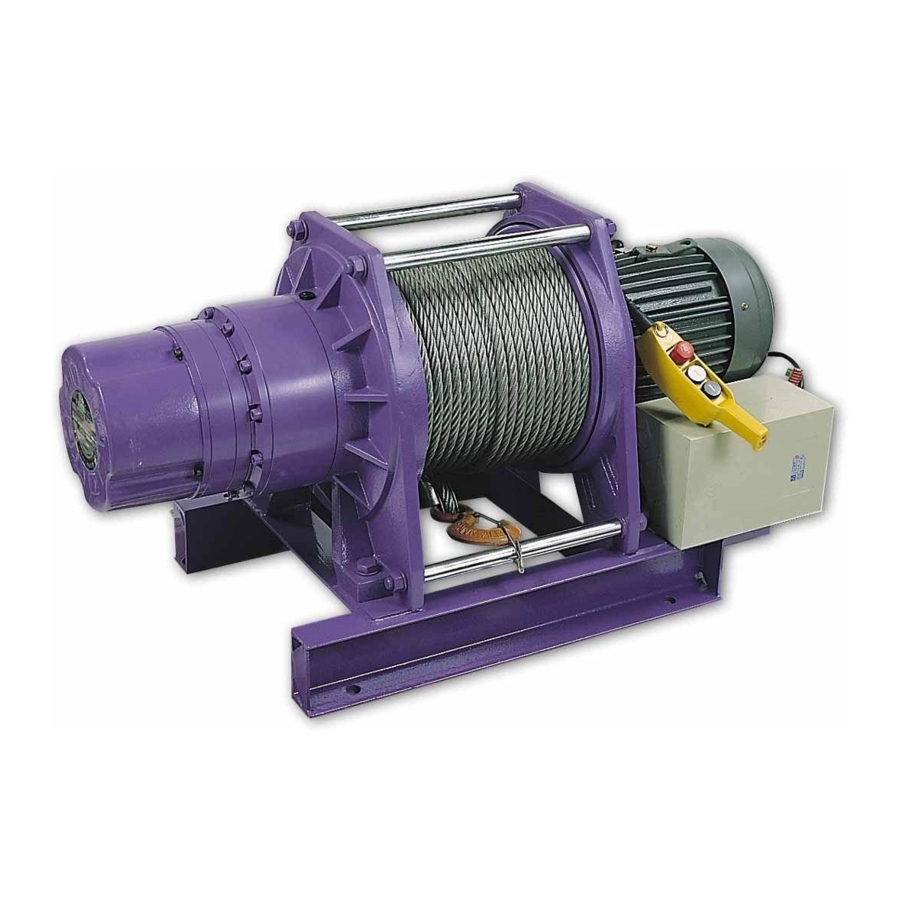

Electric Winch
CWG-30750
Model:
154452 380V50Hz 154985 400V50Hz
152840 415V50Hz 152850 440V50Hz
2
x 3C x 3 m
PN: w/5.5kw x 4P motor
152855 415V50Hz
1pc
1pc
1pc
1pc
