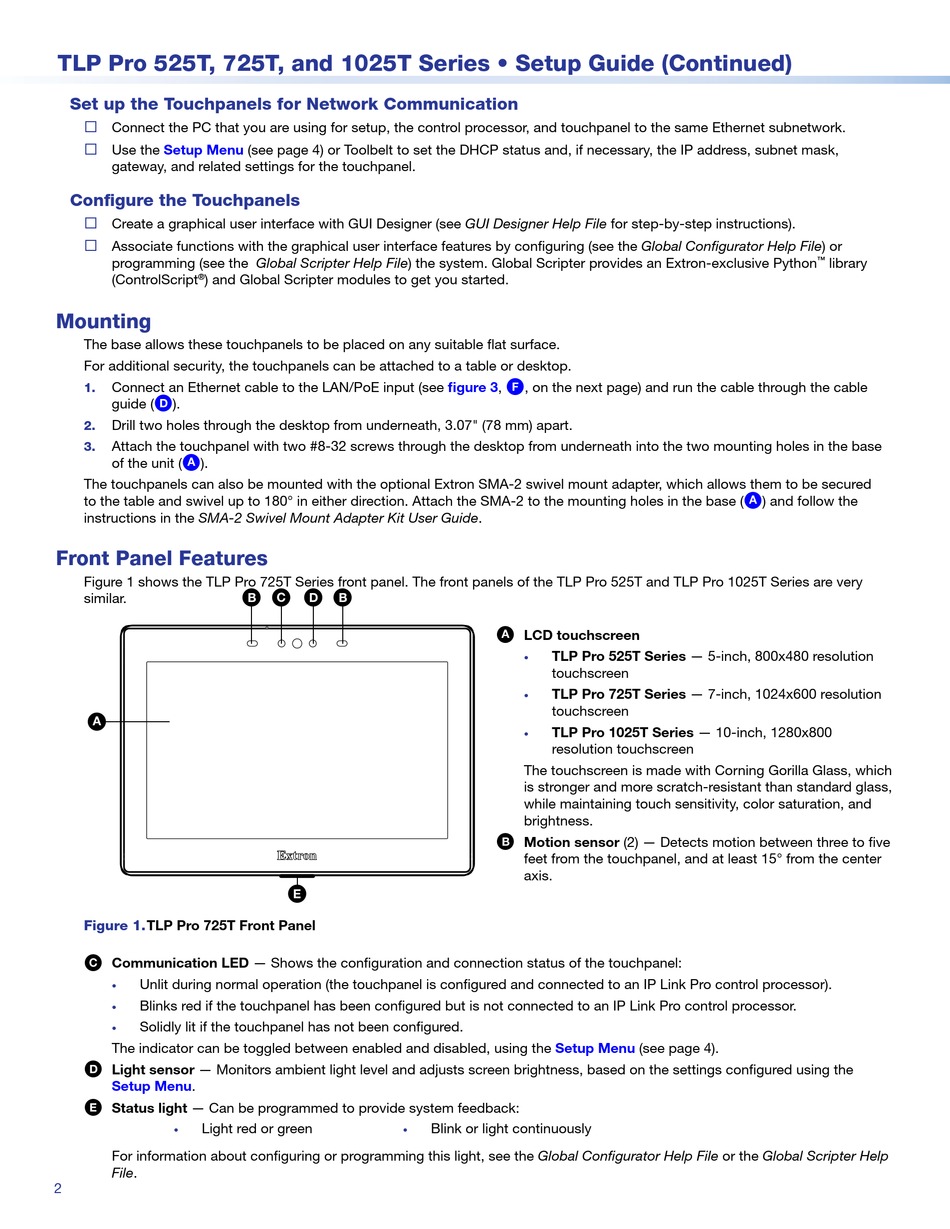

TLP Pro 525T, 725T, and 1025T Series • Setup Guide (Continued)
Set up the Touchpanels for Network Communication
… Connect the PC that you are using for setup, the control processor, and touchpanel to the same Ethernet subnetwork.
… Use the Setup Menu
gateway, and related settings for the touchpanel.
Configure the Touchpanels
… Create a graphical user interface with GUI Designer (see GUI Designer Help File for step-by-step instructions).
Associate functions with the graphical user interface features by configuring (see the Global Configurator Help File) or
…
programming (see the Global Scripter Help File) the system. Global Scripter provides an Extron-exclusive Python
(ControlScript ) and Global Scripter modules to get you started.
®
Mounting
The base allows these touchpanels to be placed on any suitable flat surface.
For additional security, the touchpanels can be attached to a table or desktop.
Connect an Ethernet cable to the LAN/PoE input (see
1.
guide ( D ).
Drill two holes through the desktop from underneath, 3.07" (78 mm) apart.
2.
Attach the touchpanel with two #8-32 screws through the desktop from underneath into the two mounting holes in the base
3.
of the unit ( A ).
The touchpanels can also be mounted with the optional Extron SMA-2 swivel mount adapter, which allows them to be secured
to the table and swivel up to 180° in either direction. Attach the SMA-2 to the mounting holes in the base (
instructions in the SMA-2 Swivel Mount Adapter Kit User Guide.
Front Panel Features
Figure 1 shows the TLP Pro 725T Series front panel. The front panels of the TLP Pro 525T and TLP Pro 1025T Series are very
similar.
A A A
Figure 1. TLP Pro 725T Front Panel
C Communication LED — Shows the configuration and connection status of the touchpanel:
Unlit during normal operation (the touchpanel is configured and connected to an IP Link Pro control processor).
•
Blinks red if the touchpanel has been configured but is not connected to an IP Link Pro control processor.
•
Solidly lit if the touchpanel has not been configured.
•
The indicator can be toggled between enabled and disabled, using the
D Light sensor — Monitors ambient light level and adjusts screen brightness, based on the settings configured using the
Setup Menu.
E Status light — Can be programmed to provide system feedback:
Light red or green
•
For information about configuring or programming this light, see the Global Configurator Help File or the Global Scripter Help
File.
2
(see page 4) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask,
B B B C C C D D D B B B
E E E
•
figure 3, F , on the next page) and run the cable through the cable
A LCD touchscreen
TLP Pro 525T Series — 5-inch, 800x480 resolution
•
touchscreen
TLP Pro 725T Series — 7-inch, 1024x600 resolution
•
touchscreen
TLP Pro 1025T Series — 10-inch, 1280x800
•
resolution touchscreen
The touchscreen is made with Corning Gorilla Glass, which
is stronger and more scratch-resistant than standard glass,
while maintaining touch sensitivity, color saturation, and
brightness.
B Motion sensor (2) — Detects motion between three to five
feet from the touchpanel, and at least 15° from the center
axis.
Setup Menu
Blink or light continuously
™
A ) and follow the
(see page 4).
library
