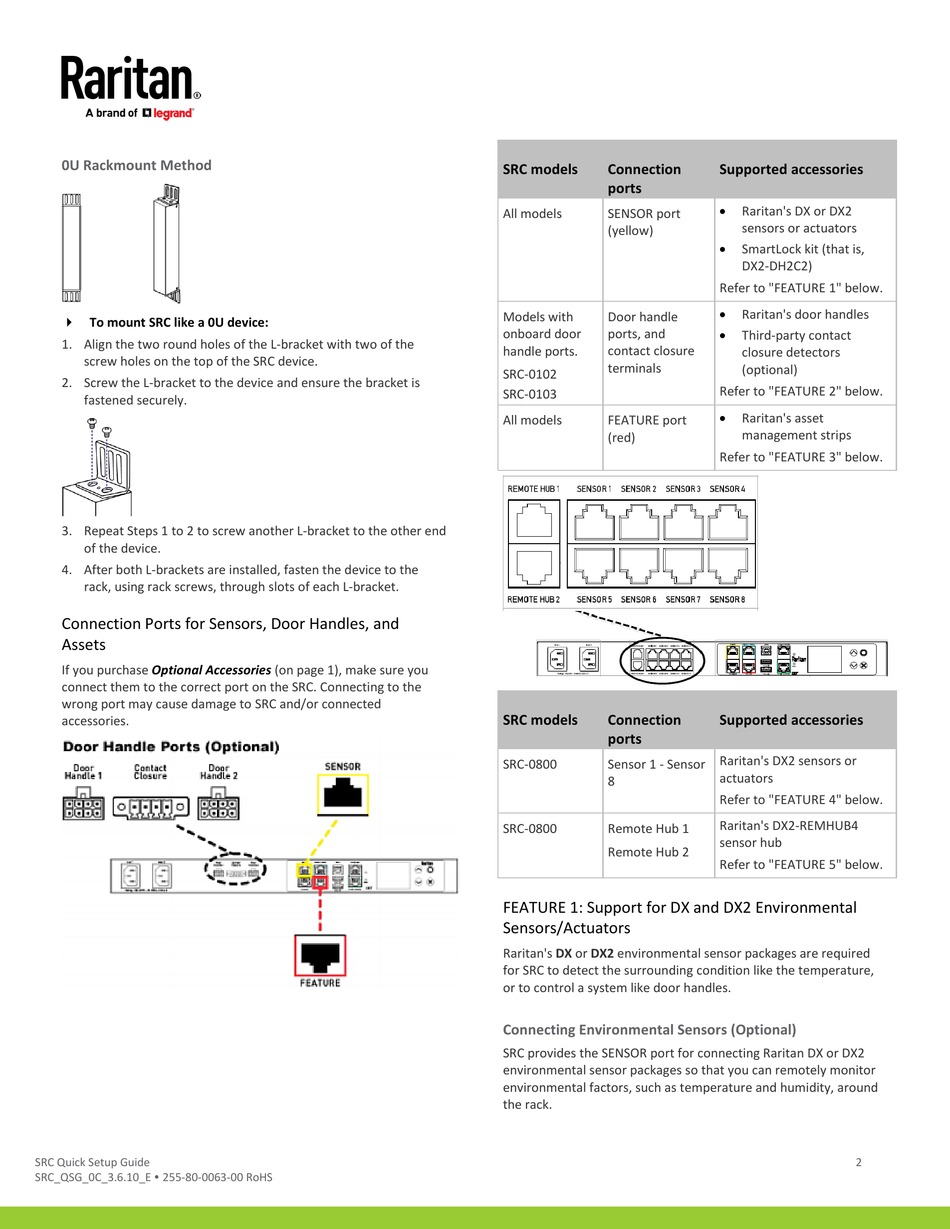

Connection Ports For Sensors, Door Handles, And Assets - LEGRAND Raritan Smart Rack Controller SRC-0100 Quick Setup Manual

0U Rackmount Method
 To mount SRC like a 0U device:
1. Align the two round holes of the L-bracket with two of the
screw holes on the top of the SRC device.
2. Screw the L-bracket to the device and ensure the bracket is
fastened securely.
3. Repeat Steps 1 to 2 to screw another L-bracket to the other end
of the device.
4. After both L-brackets are installed, fasten the device to the
rack, using rack screws, through slots of each L-bracket.
QS Rule
Connection Ports for Sensors, Door Handles, and
Assets
If you purchase Optional Accessories
connect them to the correct port on the SRC. Connecting to the
wrong port may cause damage to SRC and/or connected
accessories.
SRC Quick Setup Guide
SRC_QSG_0C_3.6.10_E  255-80-0063-00 RoHS
(on page 1), make sure you
SRC models Connection
ports
All models SENSOR port
(yellow)
Models with Door handle
onboard door ports, and
handle ports. contact closure
terminals
SRC-0102
SRC-0103
All models FEATURE port
(red)
SRC models Connection
ports
SRC-0800 Sensor 1 - Sensor
8
SRC-0800 Remote Hub 1
Remote Hub 2
QS Rule
FEATURE 1: Support for DX and DX2 Environmental
Sensors/Actuators
Raritan's DX or DX2 environmental sensor packages are required
for SRC to detect the surrounding condition like the temperature,
or to control a system like door handles.
Connecting Environmental Sensors (Optional)
SRC provides the SENSOR port for connecting Raritan DX or DX2
environmental sensor packages so that you can remotely monitor
environmental factors, such as temperature and humidity, around
the rack.
Supported accessories
• Raritan's DX or DX2
sensors or actuators
• SmartLock kit (that is,
DX2-DH2C2)
Refer to "FEATURE 1" below.
Raritan's door handles
•
Third-party contact
•
closure detectors
(optional)
Refer to "FEATURE 2" below.
• Raritan's asset
management strips
Refer to "FEATURE 3" below.
Supported accessories
Raritan's DX2 sensors or
actuators
Refer to "FEATURE 4" below.
Raritan's DX2-REMHUB4
sensor hub
Refer to "FEATURE 5" below.
