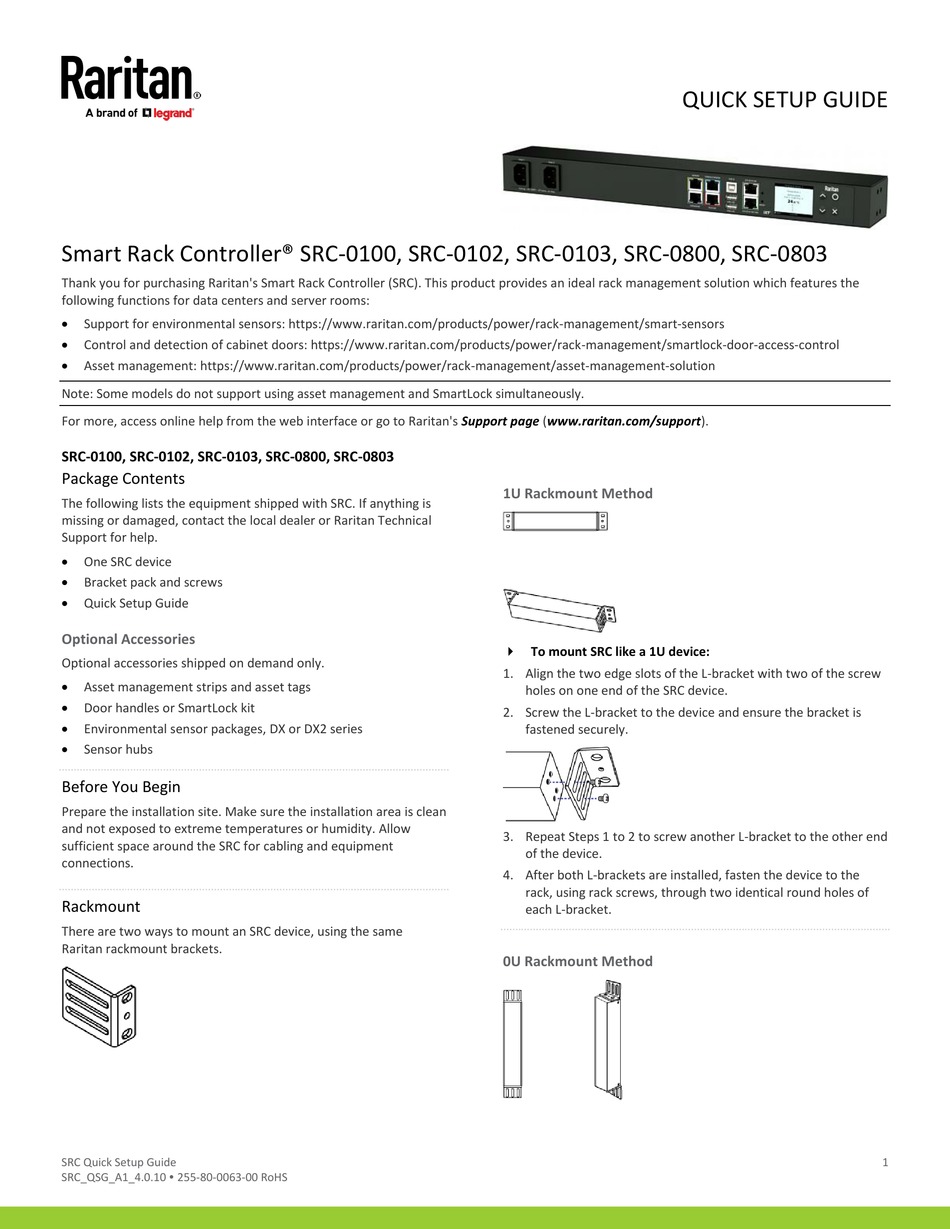

Smart Rack Controller® SRC-0100, SRC-0102, SRC-0103, SRC-0800, SRC-0803

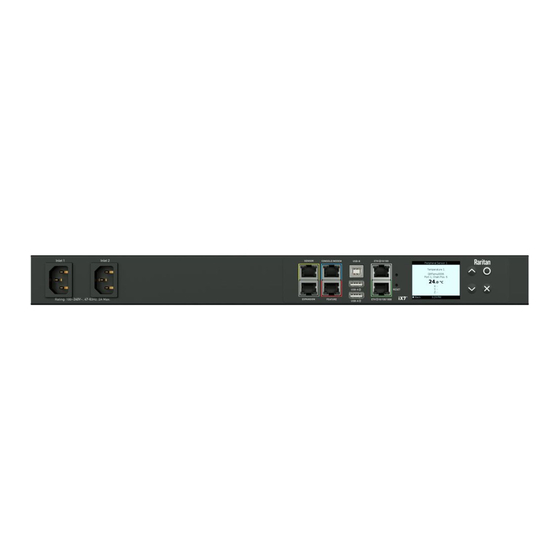

Thank you for purchasing Raritan's Smart Rack Controller (SRC). This product provides an ideal rack management solution which features the
following functions for data centers and server rooms:
•
Support for environmental sensors: https://www.raritan.com/products/power/rack-management/smart-sensors
•
Control and detection of cabinet doors: https://www.raritan.com/products/power/rack-management/smartlock-door-access-control
•
Asset management: https://www.raritan.com/products/power/rack-management/asset-management-solution
Note: Some models do not support using asset management and SmartLock simultaneously.
For more, access online help from the web interface or go to Raritan's
SRC-0100, SRC-0102, SRC-0103, SRC-0800, SRC-0803
Package Contents
The following lists the equipment shipped with SRC. If anything is
missing or damaged, contact the local dealer or Raritan Technical
Support for help.
•
One SRC device
•
Bracket pack and screws
•
Quick Setup Guide
Optional Accessories
Optional accessories shipped on demand only.
•
Asset management strips and asset tags
•
Door handles or SmartLock kit
•
Environmental sensor packages, DX or DX2 series
•
Sensor hubs
QS Rule
Before You Begin
Prepare the installation site. Make sure the installation area is clean
and not exposed to extreme temperatures or humidity. Allow
sufficient space around the SRC for cabling and equipment
connections.
QS Rule
Rackmount
There are two ways to mount an SRC device, using the same
Raritan rackmount brackets.
SRC Quick Setup Guide
SRC_QSG_A1_4.0.10  255-80-0063-00 RoHS
Support page
(www.raritan.com/support).
1U Rackmount Method
 To mount SRC like a 1U device:
1. Align the two edge slots of the L-bracket with two of the screw
holes on one end of the SRC device.
2. Screw the L-bracket to the device and ensure the bracket is
fastened securely.
3. Repeat Steps 1 to 2 to screw another L-bracket to the other end
of the device.
4. After both L-brackets are installed, fasten the device to the
rack, using rack screws, through two identical round holes of
each L-bracket.
QS Rule
0U Rackmount Method
QUICK SETUP GUIDE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raritan Smart Rack Controller SRC-0100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND Raritan Smart Rack Controller SRC-0100

Summary of Contents for LEGRAND Raritan Smart Rack Controller SRC-0100

  • Page 1 QUICK SETUP GUIDE Smart Rack Controller® SRC-0100, SRC-0102, SRC-0103, SRC-0800, SRC-0803 Thank you for purchasing Raritan's Smart Rack Controller (SRC). This product provides an ideal rack management solution which features the following functions for data centers and server rooms: • Support for environmental sensors: https://www.raritan.com/products/power/rack-management/smart-sensors •...

  • Page 2: Connection Ports For Sensors, Door Handles, And Assets

    Supported accessories environmental sensor packages so that you can remotely monitor ports environmental factors, such as temperature and humidity, around • the rack. Legrand's DX or DX2 All models SENSOR port sensors or actuators • (yellow) For detailed information on each sensor package, refer to the •...

  • Page 3: Component Function

     DX2-DH2C2 ports and terminals: Important: It is not guaranteed that all third-party detectors/switches are compatible with the SRC. Test for compatibility after installing them. Limitations Read the restrictions below before connecting door handles or a SmartLock kit with DX2-DH2C2. •...

  • Page 4: Introduction To Asset Tags

    The difference between the primary and expansion asset strips is  SRC door handle ports and terminals: that the primary asset strip has an RJ-45 connector while the expansion does not. The following diagram illustrates some asset strips. Not all available types are pictured.

  • Page 5: Connecting Src To Power

    Assembling Regular Asset Strips Before connecting asset strips, you must assemble them.  To assemble regular asset strips: 1. Connect all asset strips up to 64U. a. The PRIMARY asset strip is installed as the first one in the QS Rule asset strip assembly.

  • Page 6: Using A Web Browser

    You can connect only one or both inlets to proper power sources. 2. Make sure the wireless LAN configuration is supported by your SRC. See Wireless LAN Information. 1. Connect each SRC to an appropriately rated branch circuit. Refer to the label or nameplate affixed to your SRC for QS Rule Using a Web Browser appropriate input ratings or range of ratings.

  • Page 7: Appendix B: Wireless Configuration

    Step 3: Launch PDView Step 1: Download the "PDView" App Raritan's free app "PDView" is required for the mobile device to  To access the SRC web interface: function as a local display. 1. Launch PDView on your mobile device. ...

  • Page 8: Appendix C: More Information

    Appendix C: More Information RJ-45 Cap in the EXPANSION Port SRC has a cap plugged into its EXPANSION port when shipping out of the factory. This port is reserved for future use and does NOT function. It is suggested to keep the cap plugged continuously. Additional Information For more information about SRC and the entire Raritan product line, see Raritan's website (www.raritan.com).
