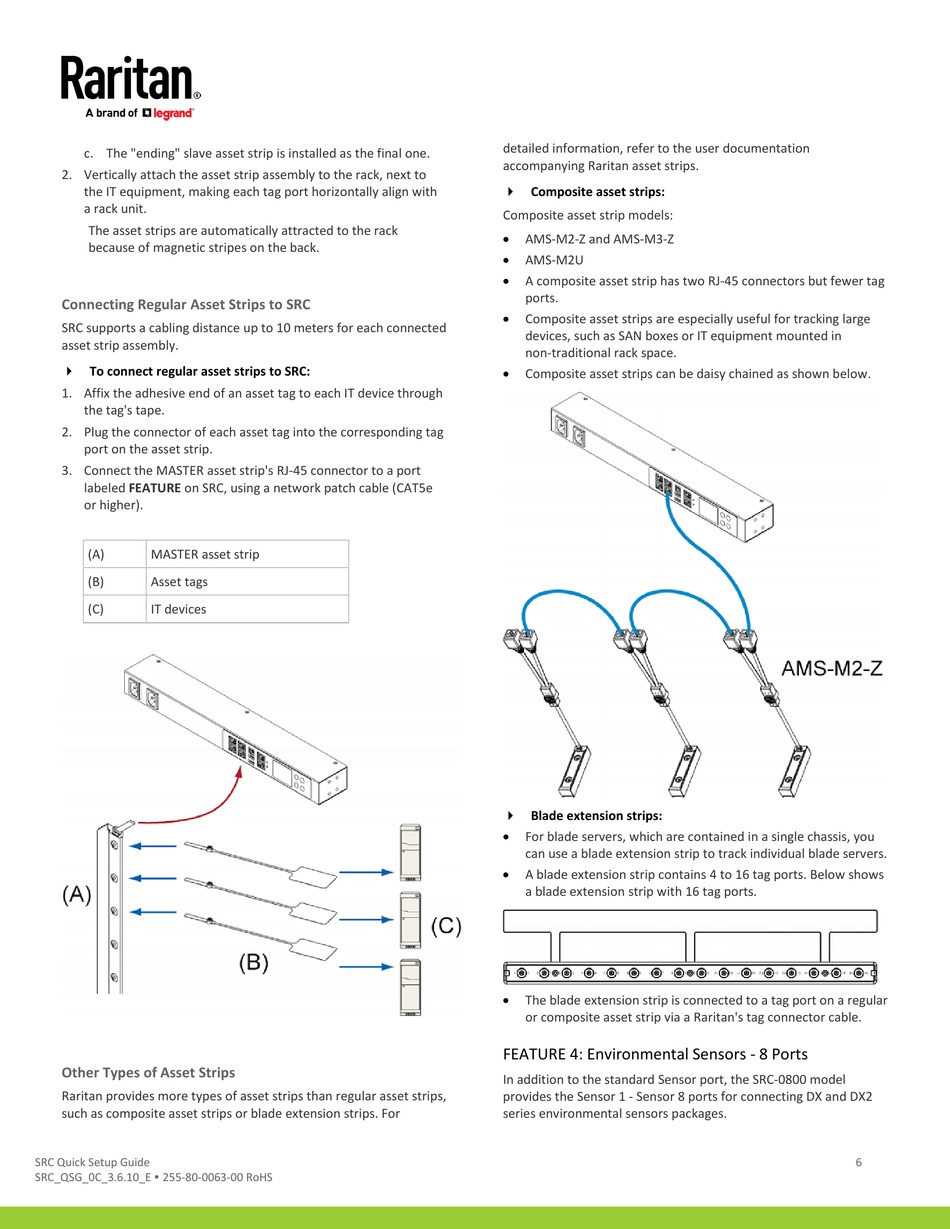

c. The "ending" slave asset strip is installed as the final one.
2. Vertically attach the asset strip assembly to the rack, next to
the IT equipment, making each tag port horizontally align with
a rack unit.
The asset strips are automatically attracted to the rack
because of magnetic stripes on the back.
QS Rule
Connecting Regular Asset Strips to SRC
SRC supports a cabling distance up to 10 meters for each connected
asset strip assembly.
 To connect regular asset strips to SRC:
1. Affix the adhesive end of an asset tag to each IT device through
the tag's tape.
2. Plug the connector of each asset tag into the corresponding tag
port on the asset strip.
3. Connect the MASTER asset strip's RJ-45 connector to a port
labeled FEATURE on SRC, using a network patch cable (CAT5e
or higher).
(A)
MASTER asset strip
(B)
Asset tags
(C)
IT devices
QS Rule
Other Types of Asset Strips
Raritan provides more types of asset strips than regular asset strips,
such as composite asset strips or blade extension strips. For
SRC Quick Setup Guide
SRC_QSG_0C_3.6.10_E  255-80-0063-00 RoHS
detailed information, refer to the user documentation
accompanying Raritan asset strips.
 Composite asset strips:
Composite asset strip models:
AMS-M2-Z and AMS-M3-Z
AMS-M2U
A composite asset strip has two RJ-45 connectors but fewer tag
ports.
Composite asset strips are especially useful for tracking large
devices, such as SAN boxes or IT equipment mounted in
non-traditional rack space.
Composite asset strips can be daisy chained as shown below.
 Blade extension strips:
For blade servers, which are contained in a single chassis, you
can use a blade extension strip to track individual blade servers.
A blade extension strip contains 4 to 16 tag ports. Below shows
a blade extension strip with 16 tag ports.
The blade extension strip is connected to a tag port on a regular
or composite asset strip via a Raritan's tag connector cable.
QS Rule
FEATURE 4: Environmental Sensors - 8 Ports
In addition to the standard Sensor port, the SRC-0800 model
provides the Sensor 1 - Sensor 8 ports for connecting DX and DX2
series environmental sensors packages.
6
