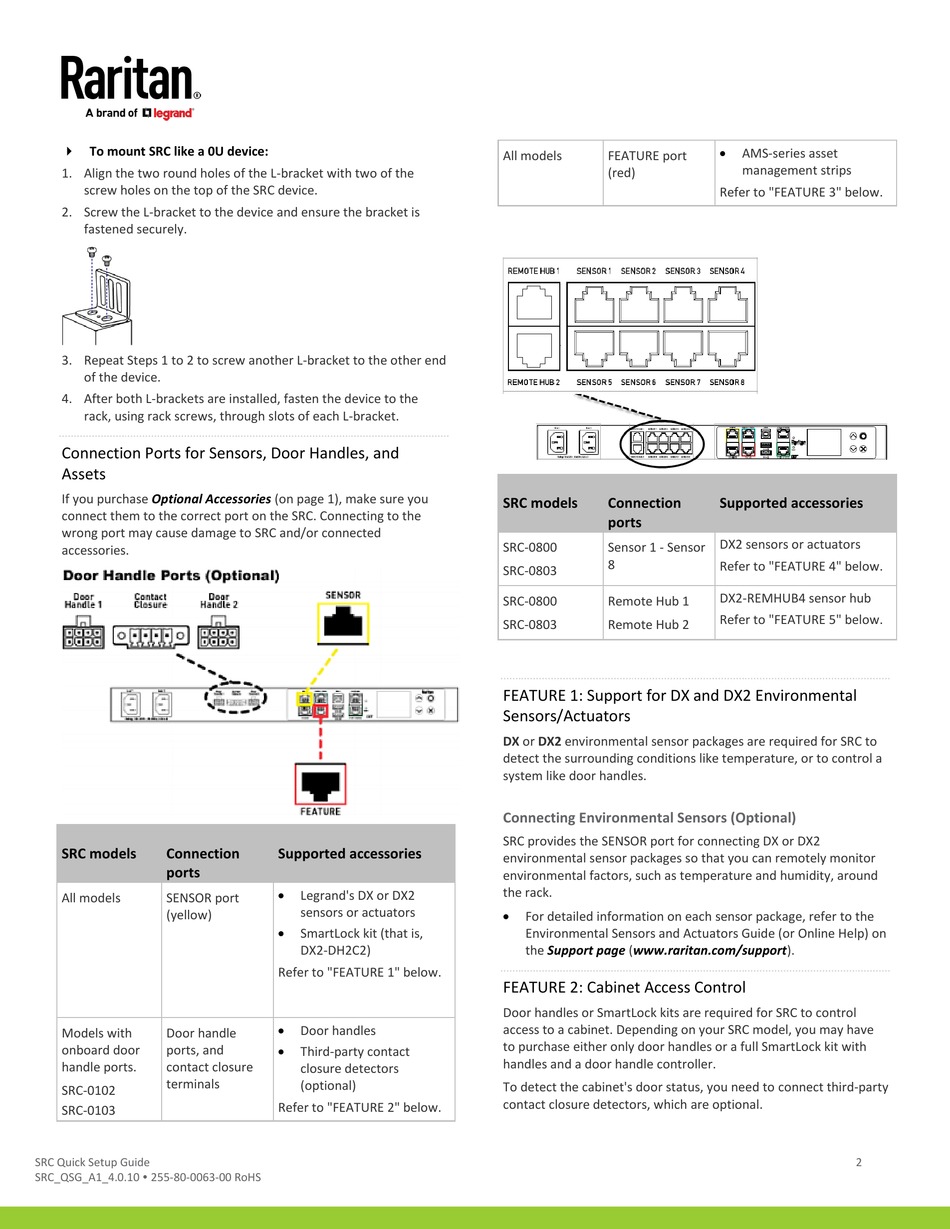

 To mount SRC like a 0U device:
1. Align the two round holes of the L-bracket with two of the
screw holes on the top of the SRC device.
2. Screw the L-bracket to the device and ensure the bracket is
fastened securely.
3. Repeat Steps 1 to 2 to screw another L-bracket to the other end
of the device.
4. After both L-brackets are installed, fasten the device to the
rack, using rack screws, through slots of each L-bracket.
QS Rule
Connection Ports for Sensors, Door Handles, and
Assets
If you purchase Optional Accessories
connect them to the correct port on the SRC. Connecting to the
wrong port may cause damage to SRC and/or connected
accessories.
SRC models Connection
ports
All models SENSOR port
(yellow)
Models with Door handle
onboard door ports, and
handle ports. contact closure
terminals
SRC-0102
SRC-0103
SRC Quick Setup Guide
SRC_QSG_A1_4.0.10  255-80-0063-00 RoHS
(on page 1), make sure you
Supported accessories
•
Legrand's DX or DX2
sensors or actuators
•
SmartLock kit (that is,
DX2-DH2C2)
Refer to "FEATURE 1" below.
•
Door handles
•
Third-party contact
closure detectors
(optional)
Refer to "FEATURE 2" below.
All models FEATURE port
(red)
SRC models Connection
ports
SRC-0800 Sensor 1 - Sensor
8
SRC-0803
SRC-0800 Remote Hub 1
SRC-0803 Remote Hub 2
QS Rule
FEATURE 1: Support for DX and DX2 Environmental
Sensors/Actuators
DX or DX2 environmental sensor packages are required for SRC to
detect the surrounding conditions like temperature, or to control a
system like door handles.
Connecting Environmental Sensors (Optional)
SRC provides the SENSOR port for connecting DX or DX2
environmental sensor packages so that you can remotely monitor
environmental factors, such as temperature and humidity, around
the rack.
•
For detailed information on each sensor package, refer to the
Environmental Sensors and Actuators Guide (or Online Help) on
the Support page (www.raritan.com/support).
QS Rule
FEATURE 2: Cabinet Access Control
Door handles or SmartLock kits are required for SRC to control
access to a cabinet. Depending on your SRC model, you may have
to purchase either only door handles or a full SmartLock kit with
handles and a door handle controller.
To detect the cabinet's door status, you need to connect third-party
contact closure detectors, which are optional.
•
AMS-series asset
management strips
Refer to "FEATURE 3" below.
Supported accessories
DX2 sensors or actuators
Refer to "FEATURE 4" below.
DX2-REMHUB4 sensor hub
Refer to "FEATURE 5" below.
