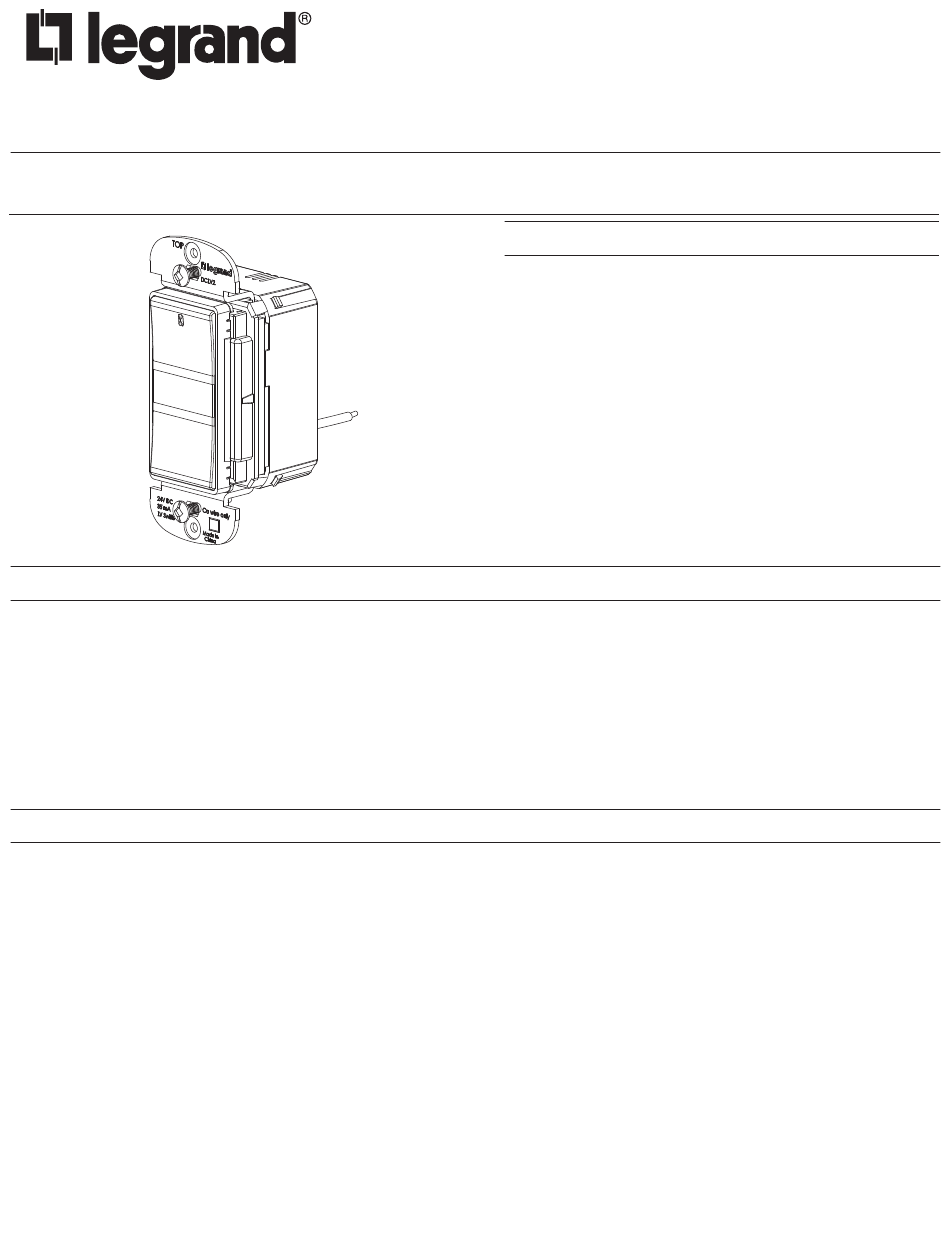

LEGRAND Wattstopper DCLV2 Installation Instructions Manual

No: 27465 – 06/18 rev. 2
Catalog Number • Numéro de Catalogue • Número de Catálogo: DCLV2
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China

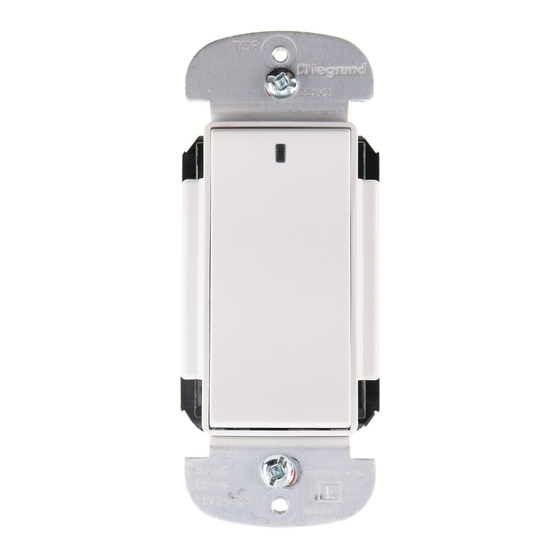

The DCLV2 0–10V dimming wallbox controller includes a Manual On feature or partial Auto On.
The DCLV2 must be used with BZ Series power packs and can be combined with occupancy sensors.
Features
• Control electronic ballasts and drivers for LED systems.
• Sink up to 50mA, allowing the product to control up to 100 ballasts wired in parallel (each ballast sourcing 0.5mA).
• 0–10V output ranges at a minimum between 0.75VDC and 9.5VDC.
• Able to receive a sensor input.
• Operating supply voltage 24VDC: Class-2 device powered directly from an external source.
• Wattstopper BZ series for 0-10V ballast control.
NOTE: INSTALL IN COMPLIANCE WITH ALL APPLICABLE CODES & STANDARDS.
Failure to follow these instructions may cause personal injury or equipment damage.
The DCLV2 is a Class 2 product. A low voltage cable with the appropriate number of conductors must be installed. For ease of
installation, manufacturer recommends use of a deep wall box.
1. Disconnect power to circuit by turning circuit breaker OFF before installation.
2. Remove the existing wall plate and switch, if one is present. If there is an existing line voltage switch the wiring must be converted
to low voltage in order to use the original wall box location for the DCLV2. Alternatively, the existing line voltage switch may
remain, however a new wall box must be installed for the DCLV2 according to NEC requirements.
3. Install power pack to control the desired lighting circuit.
4. Strip existing wires 1/4". If two wires will be connected to the same terminal, both wires must be the same gauge. Connect wires
as appropriate for your application. See the wiring diagrams on the following page.
5. Attach the wall plate.
6. Switch the circuit breaker back ON.
Wattstopper
Decorator Style 0-10V Controller
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Power Supply .......................................Wattstopper Power Pack
Rating .............................................................. 24VDC, 16mA
Control outputs
For 0–10V Dimming Ballasts:
Sink ................................................................up to 50mA
Maximum voltage .................................................9.5VDC
Minimum voltage ................................................0.75VDC
Operating Temperature ....................... 32° to 104°F (0° to 40°C)
DESCRIPTION
INSTALLATION
®
SPECIFICATIONS
