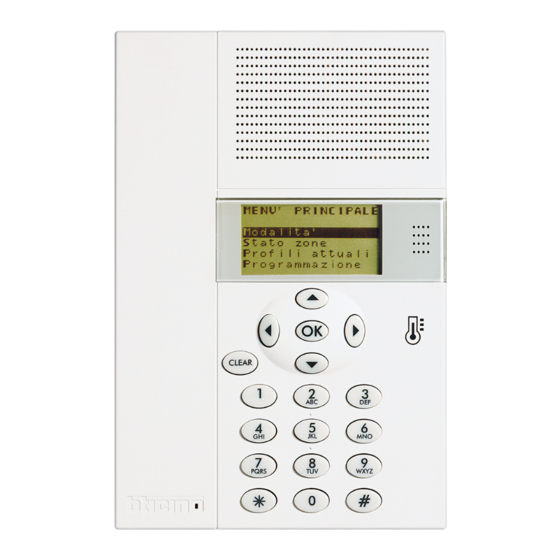

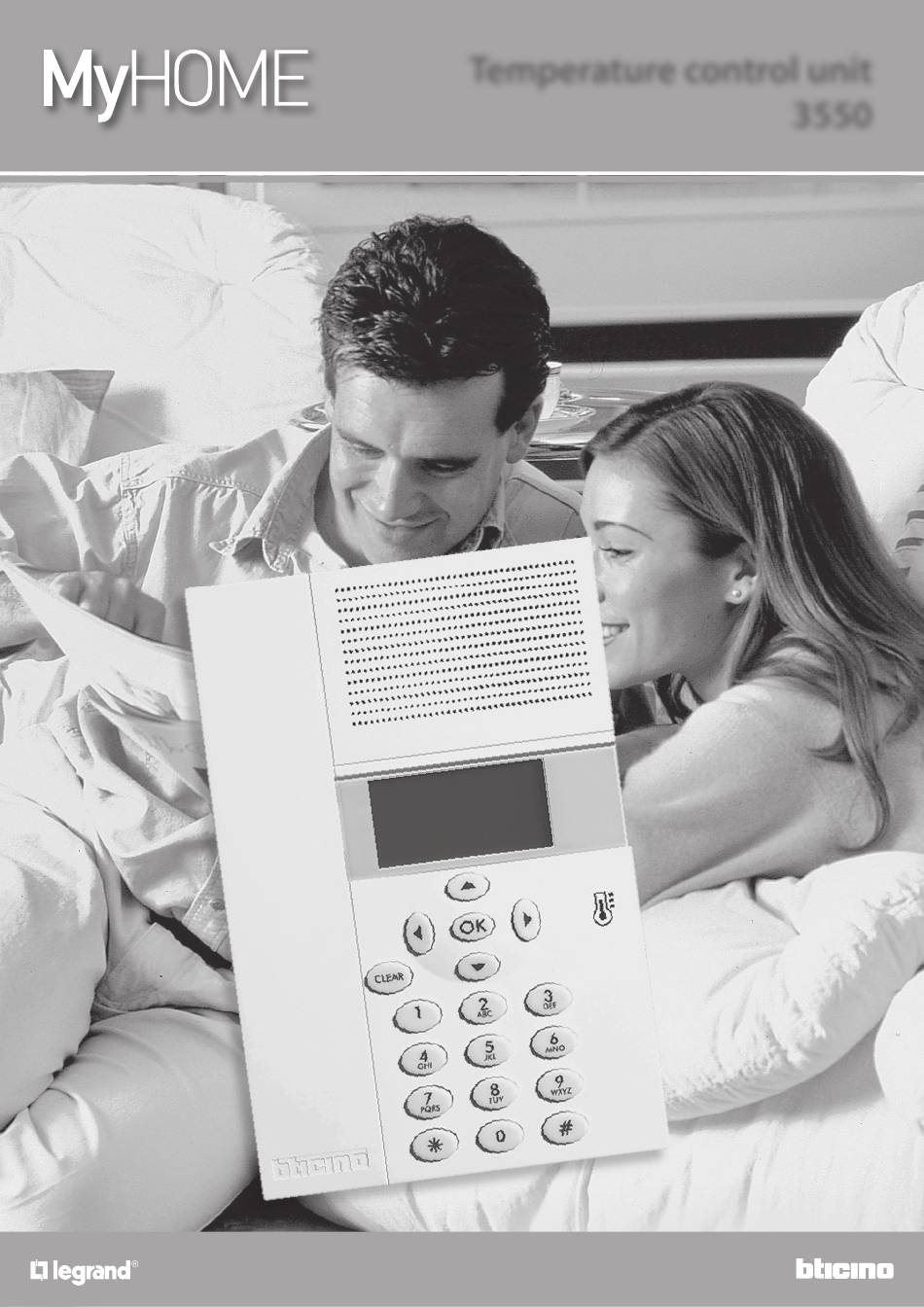

- Page 1 Temperature control unit 3550 User manual www.homesystems-legrandgroup.com...
- Page 2 Temperature control unit 3550 User manual...
-
Page 3: Table Of Contents
Temperature control unit 3550 User manual Contents Introduction The Temperature Control Unit The display The navigation keypad Operation Access the Control Unit menu The Mode menu The local probe Information Diagnostic Check the mode of operation Check the temperature in the zones Customisations Settings Programming... -
Page 4: Introduction
Temperature control unit 3550 User manual Introduction The comfort of a home is directly linked to the air quality and to being able to maintain an ideal temperature, whatever the weather outside. With the BTicino MyHOME temperature control function, whether it is snowing outside or the sun is shining, you are always the person who decides what climate to have in the home, setting the heating in winter and the cooling in summer as you want, with maximum flexibility: heating or cooling only the rooms you want and changing the temperature programming when you want. -
Page 5: The Display
Temperature control unit 3550 User manual The display During normal operation the display presents the following information: W e e k l y E x a m p l e W i n t e r W e d 0 1 O c t 0 0 : 0 1 1. - Page 6 Temperature control unit 3550 User manual When the mode of operation is the same for ALL THE ZONES the display shows the following windows: S y s t e m o f f S y s t e m W i n t e r o f f S y s t e m W i n t e r...
-
Page 7: The Navigation Keypad
Temperature control unit 3550 User manual The navigation keypad Scroll keys: scroll the list of items in the menu Selection keys can select funct ions which in some menus appear in the last line Key to confirm the selection displayed or the data entered Key to cancel the selection and return to the previous page;... -
Page 8: The Mode Menu
Temperature control unit 3550 User manual The Mode menu The Mode menu lets you select the operation of your system, for example selecting one of the weekly programs you have set up or setting a fixed temperature for all the zones. Select the Weekly mode With the weekly mode your system works automatically following the programming set. - Page 9 Temperature control unit 3550 User manual Select the Manual mode In Manual mode you can set a fixed temperature in the whole system or in the individual zones as you require. M O D E S E L E Z I O N A R E M O D E 1 : W e e k l y M O D E...
- Page 10 Temperature control unit 3550 User manual Select the Scenarios mode The Scenario mode lets you set different temperatures in various zones of the system with a single command. For example, if when cleaning you intend to open windows in some rooms you can set a lower temperature (or higher for cooling) to avoid wasting energy.
- Page 11 Temperature control unit 3550 User manual Select the Holiday mode The Holiday mode can select a particular daily profile for a set period. The program is run until the programmed date and time, after which the weekly program chosen will be reset. M O D E S E L E Z I O N A R E 1 : W e e k l y...
- Page 12 Temperature control unit 3550 User manual Select the Holidays mode When you are away you can activate the Holidays mode, which lets you keep the system in Antifreeze or Heat protection until the date and time you set, after which the weekly program chosen will be reset.
- Page 13 Temperature control unit 3550 User manual Select the OFF mode Puoi decidere di spegnere una o più zone oppure l’intero impianto M O D E S E L E Z I O N A R E M O D E 3 : S c e n a r i o s In the Mode menu select “OFF”...
- Page 14 Temperature control unit 3550 User manual Select Antifreeze or Heat protection You can decide to set one or more zones or the whole system in Antifreeze mode (or heat protection in summer). In Antifreeze a minimum temperature of 7° is maintained. In Heat protection a maximum temperature of 35°...
-
Page 15: The Local Probe
Temperature control unit 3550 User manual The local probe Each zone of your system has a probe which can adjust the temperature locally, modifying the setting on the Control Unit. In particular you can vary the temperature by ± 3°C, select antifreeze/heat protection or switch the system off in the individual zone. - Page 16 Temperature control unit 3550 User manual Green LED • When it is shining steadily it indicates that the system is active; • When it is flashing it indicates that the zone is in or OFF mode. Yellow LED • When it is shining steadily it indicates that the system is working in the zone. •...
-
Page 17: Information
Temperature control unit 3550 User manual Information Diagnostic If there is a fault on the system, the display shows the “!” icon. In this case the Diagnostic menu gives you useful information to identify the problem. S E T U P S E L E Z I O N A R E S E T U P S E T U P... -
Page 18: Check The Mode Of Operation
Temperature control unit 3550 User manual Check the mode of operation This menu lets you check the current mode of operation for each zone and for weekly operation it lets you find out the profile set. M A I N M E N U S E L E Z I O N A R E M A I N M E N U M o d e... -
Page 19: Check The Temperature In The Zones
Temperature control unit 3550 User manual Check the temperature in the zones In this menu you can find out the measured temperature, the set temperature and the system state for each zone. M A I N M E N U S E L E Z I O N A R E M A I N M E N U M A I N M E N U... -
Page 20: Customisations
Temperature control unit 3550 User manual Customisations Settings The Settings menu lets you customise some Control unit parameters or modes of operation, without affecting its correct working. Set the temperature levels For each zone you can set the Antifreeze or Heat protection temperature T* and the temperature levels T1, T2 and T3 used in the weekly programs. - Page 21 Temperature control unit 3550 User manual Set the mode of operation This operation sets the system mode of operation: Summer = cooling, Winter = heating S E T U P S E L E Z I O N A R E S E T U P T e m p e r a t u r e In the Setup menu select Summer/Winter with...
- Page 22 Temperature control unit 3550 User manual Enable/disable the remote control This setting lets you enable/disable your system’s remote control. In particular you can use the remote control to find out the state of each zone and perform the main commands and changes of mode. For more information consult your MyHOME installer.
- Page 23 Temperature control unit 3550 User manual Customise the User code The Control unit is protected by a user code which prevents unauthorised people from accessing the Main menu. The base code is 00000, but you can replace it with any 5-figure number. S E T U P S E L E Z I O N A R E S u m m e r / w i n t e r...
- Page 24 Temperature control unit 3550 User manual Adjust the display contrast The contrast of the graphic display can be adjusted so that it is easy to read S E T U P S E L E Z I O N A R E D a t e / t i m e S E T U P In the Setup menu select Contrast with the...
- Page 25 Temperature control unit 3550 User manual Sensors If temperature sensors are installed in your system, this menu will allow you to display the temperature measured and, if there are automations, change the set threshold. For more information, please call you’re MyHOME installer. S E T U P S E L E Z I O N A R E Select sensors in the Setup menu using the...
- Page 26 Temperature control unit 3550 User manual Contacts manag. The Unit is able to manage additional contacts which make it possible, for instance when opening the windows to air a room, to switch off the heating in that area so as to save energy. In this menu you can enable or disable this function.
- Page 27 Temperature control unit 3550 User manual Chiller If Climaveneta Idrorelax products are installed in your system this menu will appear, which will allow you to change its settings. S E T U P S E L E Z I O N A R E Select Chiller in the Setup menu using the D i a g n o s t i c S E T U P...
-
Page 28: Programming
Temperature control unit 3550 User manual Programming The Programming menu Using the Programming menu you can customise the following modes of operation of your system: Weekly With the weekly mode your system works automatically following the programming set. You can choose from three programs which you can customise. - Page 29 Temperature control unit 3550 User manual Rename a Weekly program On selecting this function you can assign a name which better identifies the program selected (max 13 characters). P R O G R A M S E L E C T . E x a m p l e S E L E Z I O N A R E P R O G R A M S E L E C T .
- Page 30 Temperature control unit 3550 User manual Modify a Weekly program On selecting this function you can modify the weekly program selected, associating a daily profile to each zone. P R O G R A M S E L E C T . S E L E Z I O N A R E E x a m p l e select...
- Page 31 Temperature control unit 3550 User manual Presettings of the “Example” weekly program Note: The “Example” program is preset but can be modified. Monday to Friday E x a m p l e E x a m p l e – from 00:00 to 06:00 - 18°C (T1) Z o n e X X M o n Z o n e X X...
- Page 32 Temperature control unit 3550 User manual There are two modes of work: SCROLL Characterised by an arrow-shaped cursor, lets you, using the keys, move the cursor along the time axis without making any modification to the daily profile. Z o n e 1 S u n 0 0 : 0 0 T 1 1 8 .
- Page 33 Temperature control unit 3550 User manual How to use the cursor keys: Move the cursor along the time axis – Change from SCROLL mode to MODIFY, – in the MODIFY mode scroll the three temperature levels – change from MODIFY mode to SCROLL –...
- Page 34 Temperature control unit 3550 User manual Procedure: Z o n e 1 M o n Z o n e 1 M o n Z o n e 1 M o n Z o n e 1 M o n Z o n e 1 M o n 0 0 : 0 0 7 .
- Page 35 Temperature control unit 3550 User manual Copy a zone This function lets you copy the daily profile programmed for one zone to another zone. Z O N E S E L E C T I O N Z o n e 1 S E L E Z I O N A R E Z O N E S E L E C T I O N Z o n e 2...
- Page 36 Temperature control unit 3550 User manual Scenarios programming Can create 16 scenarios for Winter operation and 16 for Summer operation and for each of these set different temperatures in the various zones. To select the scenario to customise: P R O G R A M M I N G S E L E Z I O N A R E W e e k l y In the Programming menu select...
- Page 37 Temperature control unit 3550 User manual Modify a Scenario Selecting this function you can modify the selected scenario associating a temperature level to each zone. S C E N A R I O S c e n a r i o 1 S E L E Z I O N A R E S C E N A R I O Select...
- Page 38 Temperature control unit 3550 User manual Holiday programming Can program a daily profile for each zone (as base the “Sunday” profile of the “Example” program is associated with each zone). To select the Holiday program to customise P R O G R A M M I N G W e e k l y S E L E Z I O N A R E In the Programming menu select...
- Page 39 Temperature control unit 3550 User manual Copy a zone This function lets you copy the daily profile programmed for one zone to another zone. Z O N E S E L E C T I O N Z o n e 1 S E L E Z I O N A R E Z O N E S E L E C T I O N Z o n e 2...
- Page 40 Viale Borri, 231 87045 Limoges Cedex - France 21100 Varese www.legrand.com www.bticino.it Legrand SNC reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same..
