Smart Rack Controller® SRC-0100, SRC-0102, SRC-0103, SRC-0800
Thank you for purchasing Raritan's Smart Rack Controller (SRC). This product provides an ideal rack management solution which features the
following functions for data centers and server rooms:
•
Support for environmental sensors: https://www.raritan.com/products/power/rack-management/smart-sensors
•
Control and detection of cabinet doors: https://www.raritan.com/products/power/rack-management/smartlock-door-access-control
•
Asset management: https://www.raritan.com/products/power/rack-management/asset-management-solution
Note: Some models do not support using asset management and SmartLock simultaneously.
For further details on using the SRC, access online help from the application, or download the user guide from Raritan's
(http://www.raritan.com/support/).

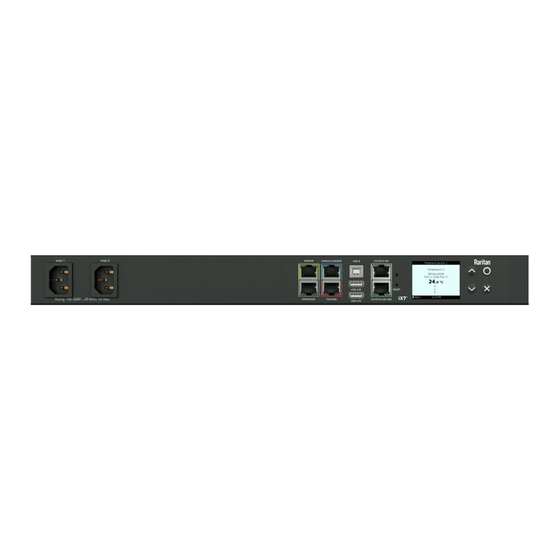

SRC-0100, SRC-0102, SRC-0103, SRC-0800
Package Contents
The following lists the equipment shipped with SRC. If anything is
missing or damaged, contact the local dealer or Raritan Technical
Support for help.
•
One SRC device
Bracket pack and screws
•
Quick Setup Guide
•
Optional Accessories
Optional accessories shipped on demand only.
•
Asset management strips and asset tags
•
Door handles or SmartLock kit
•
DX and/or DX2 environmental sensor packages
Raritan sensor hubs
•
Warning: SRC does NOT support these other Raritan
environmental sensor packages: DPX, DPX2, DPX3.
QS Rule
Before You Begin
Prepare the installation site. Make sure the installation area is clean
and not exposed to extreme temperatures or humidity. Allow
sufficient space around the SRC for cabling and equipment
connections.
QS Rule
Rackmount
There are two ways to mount an SRC device, using the same
Raritan rackmount brackets.

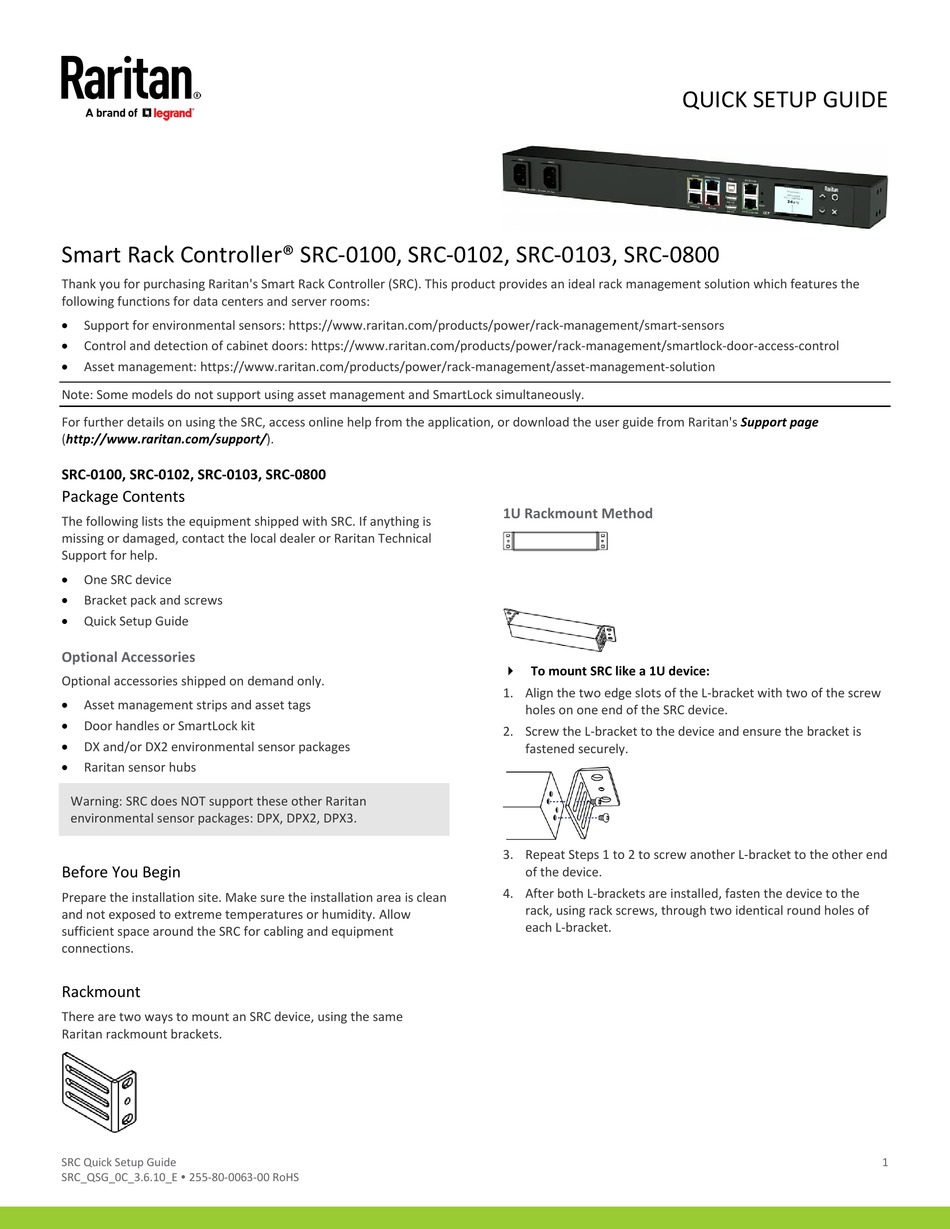

SRC Quick Setup Guide
SRC_QSG_0C_3.6.10_E 255-80-0063-00 RoHS
1U Rackmount Method
To mount SRC like a 1U device:
1. Align the two edge slots of the L-bracket with two of the screw
holes on one end of the SRC device.
2. Screw the L-bracket to the device and ensure the bracket is
fastened securely.
3. Repeat Steps 1 to 2 to screw another L-bracket to the other end
of the device.
4. After both L-brackets are installed, fasten the device to the
rack, using rack screws, through two identical round holes of
each L-bracket.
QS Rule
QUICK SETUP GUIDE
Support page
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Raritan Smart Rack Controller SRC-0100
Summary of Contents for LEGRAND Raritan Smart Rack Controller SRC-0100
- Page 1 QUICK SETUP GUIDE Smart Rack Controller® SRC-0100, SRC-0102, SRC-0103, SRC-0800 Thank you for purchasing Raritan's Smart Rack Controller (SRC). This product provides an ideal rack management solution which features the following functions for data centers and server rooms: • Support for environmental sensors: https://www.raritan.com/products/power/rack-management/smart-sensors •...
-
Page 2: Connection Ports For Sensors, Door Handles, And Assets
0U Rackmount Method SRC models Connection Supported accessories ports • Raritan's DX or DX2 All models SENSOR port sensors or actuators (yellow) • SmartLock kit (that is, DX2-DH2C2) Refer to "FEATURE 1" below. Raritan's door handles • Models with Door handle ... -
Page 3: Component Function
• For sensor connection instructions, refer to the SRC User Guide Connecting a SmartLock Kit to DX2-DH2C2 or Online Help. • For detailed information on each sensor package, refer to the You need a SmartLock kit if your SRC does NOT include a built-in Environmental Sensors and Actuators Guide (or Online Help) on DX2-DH2C2, such as SRC-0100. - Page 4 Connection procedure: Connecting Raritan's Door Handles to SRC 1. Connect supported door handles to DX2-DH2C2. You only need to purchase door handles if your SRC has a built-in 2. (Optional) Connect contact closure detectors/switches for DX2-DH2C2, such as SRC-0102 and SRC-0103. detecting door status to DX2-DH2C2.
-
Page 5: Feature 3: Asset Management
FEATURE 3: Asset Management The asset strip is connected to the SRC, and the asset tag transmits the ID and positioning information to the asset strip. Both asset management strips and asset tags are required for SRC's The following diagram illustrates an asset tag. Note that there are asset management feature. - Page 6 detailed information, refer to the user documentation c. The "ending" slave asset strip is installed as the final one. accompanying Raritan asset strips. 2. Vertically attach the asset strip assembly to the rack, next to Composite asset strips: the IT equipment, making each tag port horizontally align with a rack unit.
-
Page 7: Connecting Src To Power
Connecting SRC to Your Network QS Rule FEATURE 5: Support for 2 Remote Hubs SRC can be connected to a wired or wireless network. The SRC-0800 includes 2 Remote Hub ports that enable connection To make a wired connection: of two DX2-REMHUB4 sensor hubs. -
Page 8: Appendix A: Configuration Via A Mobile Device Or Pdview
https://play.google.com/store/apps/details?id=com.raritan. To access the SRC web interface: android.pdview 1. In a web browser, enter the SRC IP address and login with the default user credentials, accepting any security warnings that may apear. Default login: admin/raritan 2. Install PDView. Password change is enforced at first login. -
Page 9: Appendix B: Wireless Lan Information
4. (Optional) For initial login, you are prompted to change the Note: You must configure SRC to enable its wireless LAN interface. password. See Step 2: Log in to the SRC Web Interface (on page See the topic titled Configuring Network Settings in the User Guide.
