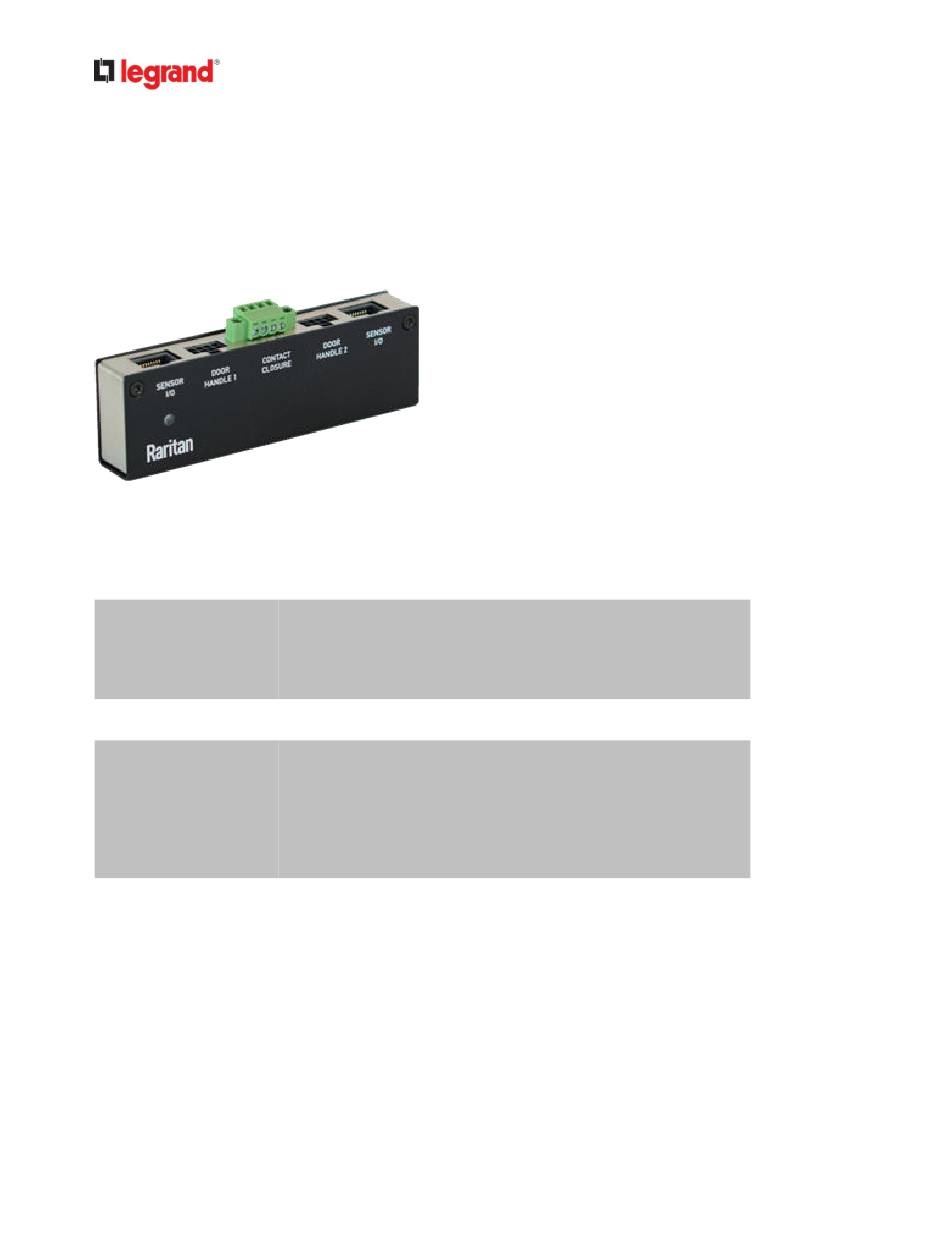

SmartLock with DX2-DH2C2
SmartLock Quick Setup Guide

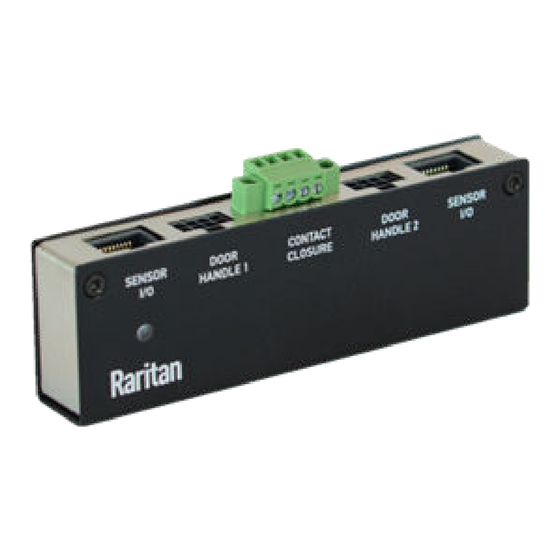

Model Number: DX2-DH2C2
SmartLock is an electronic door access and control system for all types of data center enclosures.
Supported Components
DX2-DH2C2 door handle controller supports the following components::
Managing Devices
Xerus Version
Door Handles
Restrictions for DX2-DH2C2
▪
▪ Always connect DX2-DH2C2 directly to the sensor port. If you are cascading with other sensors, the DX2-
DH2C2 must be in the first position, directly connected to the sensor port.
▪
▪ Max. of 1 DX2-DH2C2 with up to 2 electronic door handles per Sensor port
▪
▪ Max. cable length PDU to DX2-DH2C2: 5m
▪
▪ Max. cable length DX2-DH2C2 to door handle: 4m
QSGLegrandProCSS
SmartLock_DX2DH2C2_QSG_B2_4.0.20
▪
▪ PX3
▪
▪ PX3TS
▪
▪ PXC
▪
▪ SRC
▪
▪ Legrand PDU
▪
▪ 3.6.10 and up
▪ Southco H3-EM-60-100
▪
▪
▪ Southco H3-EM-62-100
▪
▪ Southco H3-EM-64-100
▪
▪ Southco H3-EM-65-100
▪
▪ Southco H3-EM-66-100
▪
▪ Southco H3-EM-67-100
▪
▪ Southco H3-EM-68-100
▪
▪ Emka Agent E
▪
▪ Emka 1150-U5x
▪
▪ Dirak eLine MLR1000
▪
▪ Dirak eLine MLR2X00
▪
▪ Dirak eLine MLR2000KP
page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND SmartLock
Summary of Contents for LEGRAND SmartLock
- Page 1 SmartLock with DX2-DH2C2 SmartLock Quick Setup Guide Model Number: DX2-DH2C2 SmartLock is an electronic door access and control system for all types of data center enclosures. Supported Components DX2-DH2C2 door handle controller supports the following components:: ▪ PX3 ▪ Managing Devices ▪...
- Page 2 ▪ No support for hot-plugging door handles. Door handle must not be plugged or unplugged from DX2-DH2C2 ▪ while contacts are powered. Risk of equipment damage. DX2-DH2C2 Installation QSGLegrandProCSS page 2 SmartLock_DX2DH2C2_QSG_B2_4.0.20...
-
Page 3: Bracket Installation
RJ‑45 ports ▪ Use a standard category cable to connect to the PX3, PX3TS, ▪ PXC, SRC, or Legrand supported managing product port. DOOR HANDLE 1 - DOOR HANDLE 2 Electronic door handle ports ▪ Use wiring provided with your door handles. -
Page 4: Next Steps
Web Configuration Peripherals ▪ SmartLock menu option is seen on main menu once door handle are connected, and the Card Readers option ▪ appears when door handle with integrated card reader is configured. ▪ In the Peripheral Devices page, two door handles, door locks, and doors are added automatically. - Page 5 SmartLock ▪ Click Smart Lock in the Main menu to open the Door Handle options. ▪ ▪ The Smart Lock Controller section on top displays the physical connection to the DX2-DH2C2. ▪ ▪ Door Handle 1 and Door Handle 2 correspond to the labels on the sensor.
- Page 6 Settings ▪ Click Edit settings. ▪ ▪ ▪ Select your door handle's model. Door Handle Type: ▪ If your specific Southco H3-EM model is listed, select it. For all other supported Southco H3-EM models, ▪ select "Southco H3-EM". QSGLegrandProCSS page 6 SmartLock_DX2DH2C2_QSG_B2_4.0.20...
- Page 7 ▪ ▪ Specify how long the can remain open after someone opens the door handle via a Timeout: door handle lock smart card or via remote control using the software. When the timeout expires, the door handle lock will be automatically closed.
- Page 8 Optional Setting: Unlock Front and Rear Doors Simultaneously By default, the configuration is set to unlock only one lock at a time to preserve power. You must change the Active Powered Dry Contact Limit to 2 if you require unlocking the front and rear door simultaneously at the rack.
- Page 9 Note: With some door handles, while you open and close one door handle, the second door handle is powered off briefly to conserve power. Once the first door handle is closed and locked, power resumes to the second handle and it is ready to use. SmartLock Kits Southco Door Lock Kits EMKA Door Lock Kits...
