2. Screw the L-bracket to the device and ensure the bracket
is fastened securely.
3. Repeat Steps 1 to 2 to screw another L-bracket to the
other end of the device.
4. After both L-brackets are installed, fasten the device to
the rack, using rack screws, through two identical round
holes of each L-bracket.
QS Rule

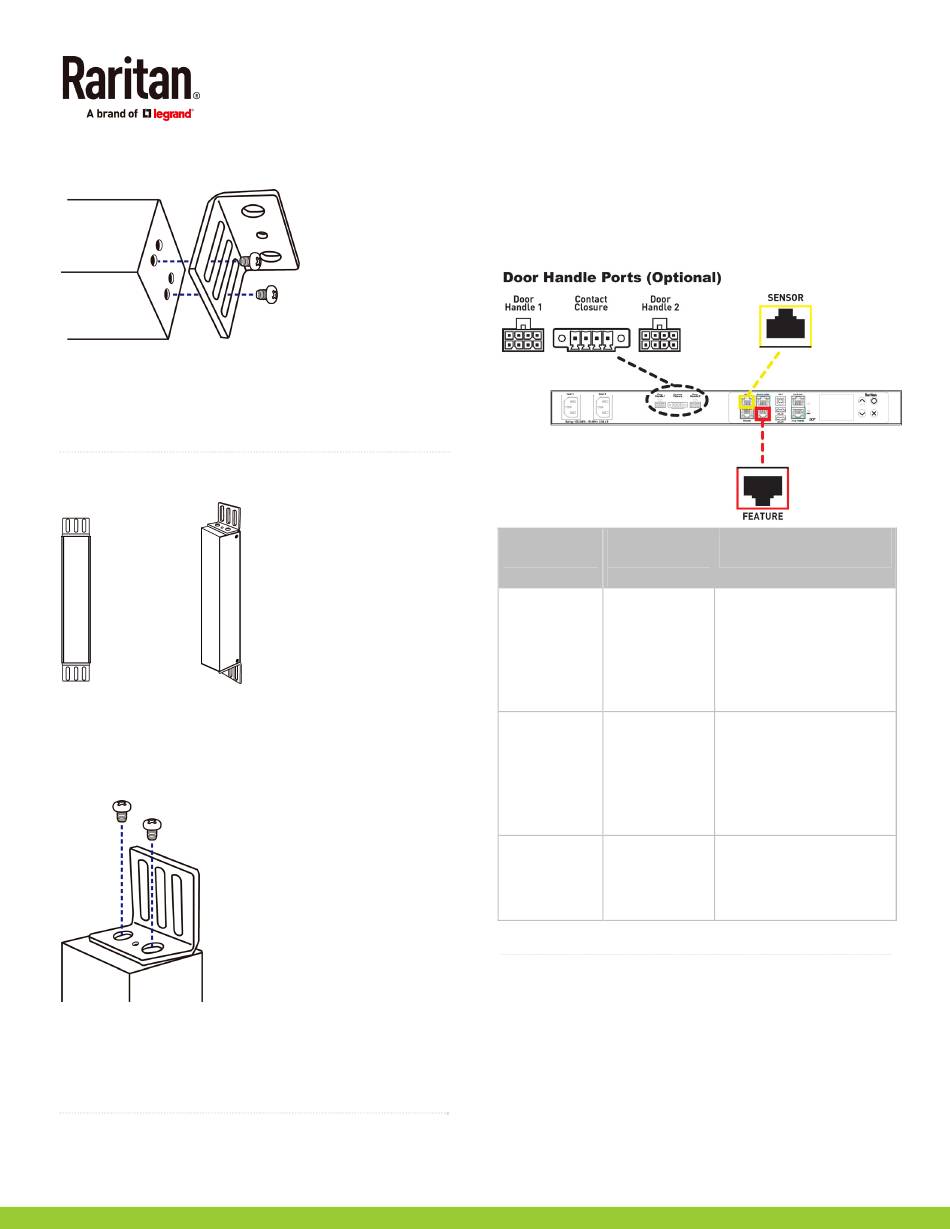

0U Rackmount Method
 To mount SRC like a 0U device:
1. Align the two round holes of the L-bracket with two of the
screw holes on the top of the SRC device.
2. Screw the L-bracket to the device and ensure the bracket
is fastened securely.
3. Repeat Steps 1 to 2 to screw another L-bracket to the
other end of the device.
4. After both L-brackets are installed, fasten the device to
the rack, using rack screws, through slots of each
L-bracket.
QS Rule
SRC Quick Setup Guide
SRC_QSG_0A_3.5.10_E  255-80-0063-00 RoHS
Connection Ports for Sensors, Door Handles, and
Assets
Optional Accessories
If you purchase
you connect them to the correct port on the SRC, or it is likely
damages may be caused to SRC and/or connected
accessories.
SRC models Connection
ports
All models SENSOR port
(yellow)
Models with Door handle
onboard door ports, and
handle ports. contact closure
For example, terminals
SRC-0102.
All models FEATURE port
(red)
QS Rule
FEATURE 1: Support for DX and DX2
Environmental Sensors/Actuators
Raritan's DX or DX2 environmental sensor packages are
required for SRC to detect the surrounding condition like the
temperature, and/or to control a system or mechanism like
door handles.
(on page 1), make sure
Supported accessories

Raritan's DX or DX2
sensors or actuatorsf

SmartLock kit (that is,
DX2-DH2C2)
Refer to "FEATURE 1"
below.

Raritan's door handles

Third-party contact
closure detectors
(optional)
Refer to "FEATURE 2"
below.

Raritan's asset
management strips
Refer to "FEATURE 3"
below.
