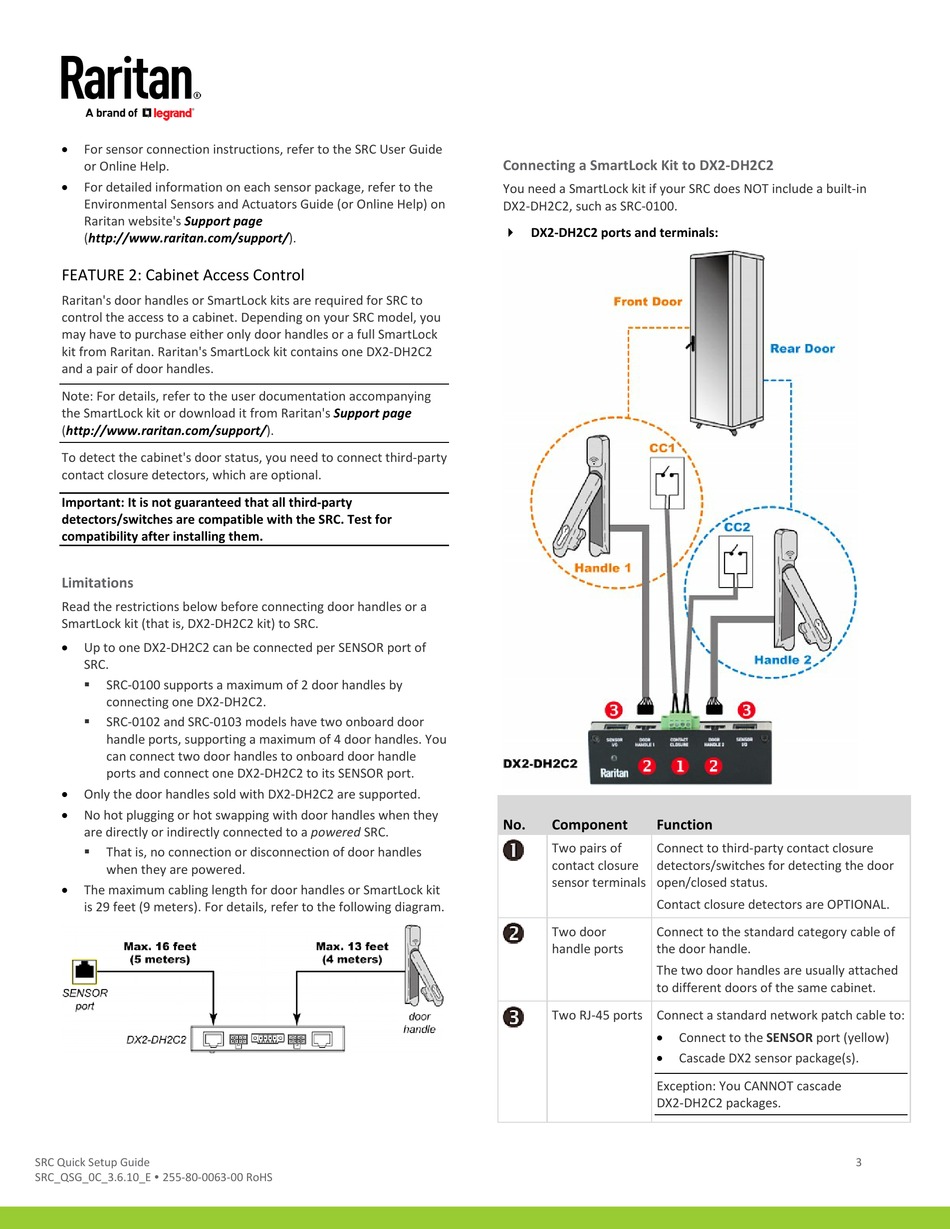

Component Function - LEGRAND Raritan Smart Rack Controller SRC-0100 Quick Setup Manual

• For sensor connection instructions, refer to the SRC User Guide
or Online Help.
• For detailed information on each sensor package, refer to the
Environmental Sensors and Actuators Guide (or Online Help) on
Raritan website's Support page
(http://www.raritan.com/support/).
QS Rule
FEATURE 2: Cabinet Access Control
Raritan's door handles or SmartLock kits are required for SRC to
control the access to a cabinet. Depending on your SRC model, you
may have to purchase either only door handles or a full SmartLock
kit from Raritan. Raritan's SmartLock kit contains one DX2-DH2C2
and a pair of door handles.
Note: For details, refer to the user documentation accompanying
the SmartLock kit or download it from Raritan's
(http://www.raritan.com/support/).
To detect the cabinet's door status, you need to connect third-party
contact closure detectors, which are optional.
Important: It is not guaranteed that all third-party
detectors/switches are compatible with the SRC. Test for
compatibility after installing them.
Limitations
Read the restrictions below before connecting door handles or a
SmartLock kit (that is, DX2-DH2C2 kit) to SRC.
• Up to one DX2-DH2C2 can be connected per SENSOR port of
SRC.
SRC-0100 supports a maximum of 2 door handles by

connecting one DX2-DH2C2.
SRC-0102 and SRC-0103 models have two onboard door

handle ports, supporting a maximum of 4 door handles. You
can connect two door handles to onboard door handle
ports and connect one DX2-DH2C2 to its SENSOR port.
• Only the door handles sold with DX2-DH2C2 are supported.
• No hot plugging or hot swapping with door handles when they
are directly or indirectly connected to a powered SRC.
That is, no connection or disconnection of door handles

when they are powered.
The maximum cabling length for door handles or SmartLock kit
•
is 29 feet (9 meters). For details, refer to the following diagram.
SRC Quick Setup Guide
SRC_QSG_0C_3.6.10_E  255-80-0063-00 RoHS
Connecting a SmartLock Kit to DX2-DH2C2
You need a SmartLock kit if your SRC does NOT include a built-in
DX2-DH2C2, such as SRC-0100.
 DX2-DH2C2 ports and terminals:
Support page
No. Component Function
Two pairs of Connect to third-party contact closure
contact closure detectors/switches for detecting the door
sensor terminals open/closed status.
Contact closure detectors are OPTIONAL.
Two door Connect to the standard category cable of
handle ports the door handle.
The two door handles are usually attached
to different doors of the same cabinet.
Two RJ-45 ports Connect a standard network patch cable to:
Connect to the SENSOR port (yellow)
•
Cascade DX2 sensor package(s).
•
Exception: You CANNOT cascade
DX2-DH2C2 packages.
