FSIR-100
Wireless IR Configuration Tool
USING THE FSIR-100 CONFIGURATION TOOL

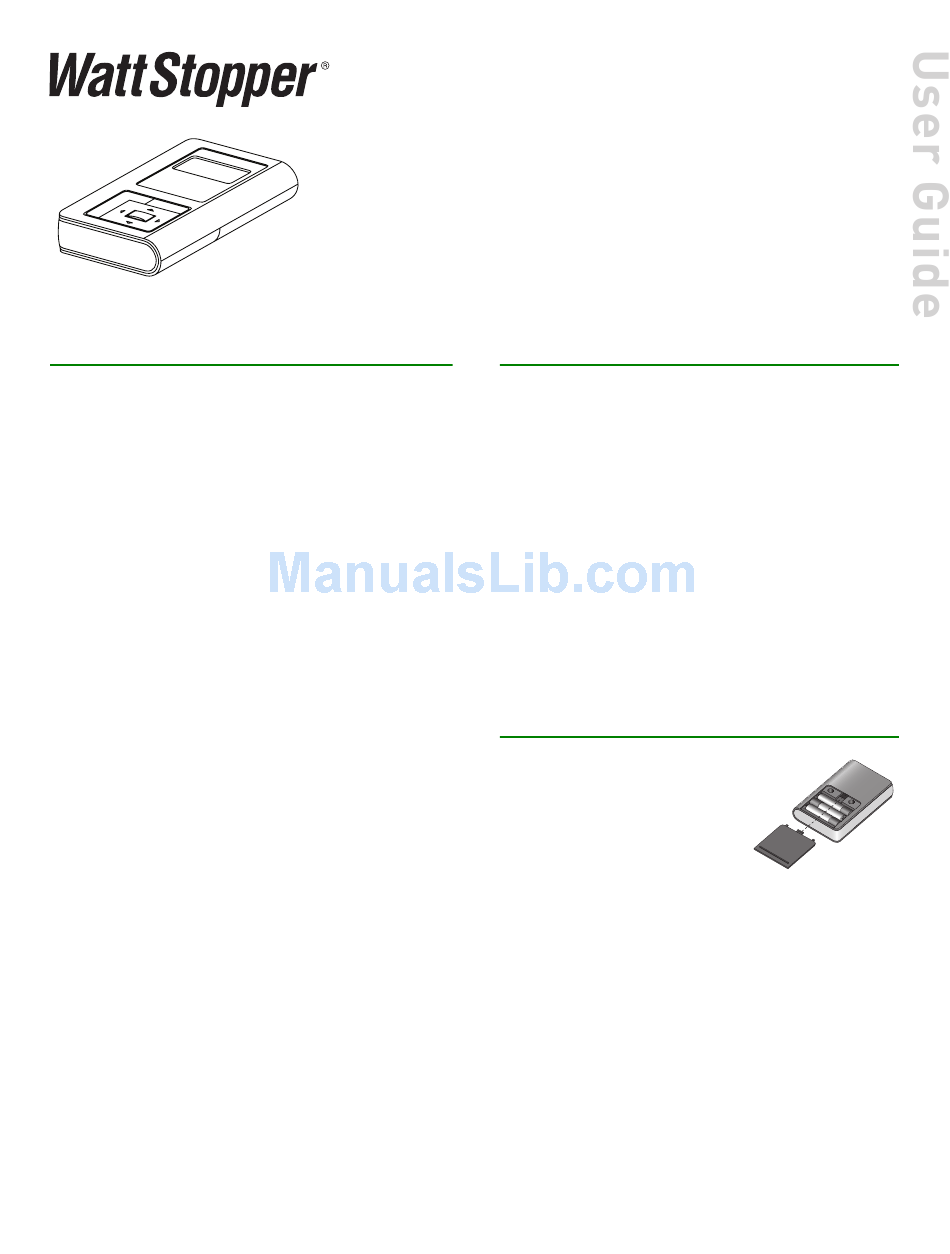

The FSIR-100 Wireless IR Configuration Tool is a handheld
tool for changing defaults and testing of WattStopper
devices.It provides wireless access to the devices for
parameter changes and testing.
he FSIR-100 display shows menus and prompts to lead
T
you through each process. The navigation pad provides a
simple way to navigate through the customization fields.
Within a certain mounting height of the sensor, the FSIR-
100 allows modification of the system without requiring
ladders or tools; simply with a touch of a few buttons.
The FSIR-100 IR transceiver allows bi-directional
communication between the device and the FSIR-100
configuration tool . Simple menu screens let you see
the current status of the sensor and make changes. It
can change device parameters such as high/low mode,
sensitivity, time delay, cut off and more. With the FSIR-100
you can also establish and store device parameter profiles.
BATTERIES
The FSIR-100 operates on three
standard 1.5V AAA Alkaline batteries
or three rechargeable AAA NiMH
batteries. The battery status displays
in the upper right corner of the
display. Three bars next to BAT=
indicates a full battery charge. A
warning appears on the display when the battery level falls
below a minimum acceptable level. To conserve battery
power, the FSIR-100 automatically shuts off 10 minutes
after the last key press.
• If communication is not successful, (if possible) move
closer to the sensor.
• If still not successful, there may be too much IR
interference from other sources. Programming the
unit at night when there is no daylight available may
be the only way to communicate with the sensor.
