LEGRAND Wattstopper LMPL-611-20M Quick Start Manual

No: 28390 – 06/20 rev. 4
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMPL-611-20M
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
PRODUCT DESCRIPTION
The LMPL-611-20M is a wireless plug load controller that is compatible
with all Wattstopper IPv6/Bluetooth
DLM sensors and switches. Using Push-to-Pair or the DLM Config
App, wireless devices can be paired to a plug load controller for stand-
alone room operation. It can be used in conjunction with LMRC-611-xxx
wireless room controllers.
The LMPL-611-20M can also be joined to a multi-room mesh network by
adding an LMBR-650 border router. Wireless plug load controllers can
join an LMBR-650 network using the wireless DLM Config App or LMCS
v4.7.1 and later.

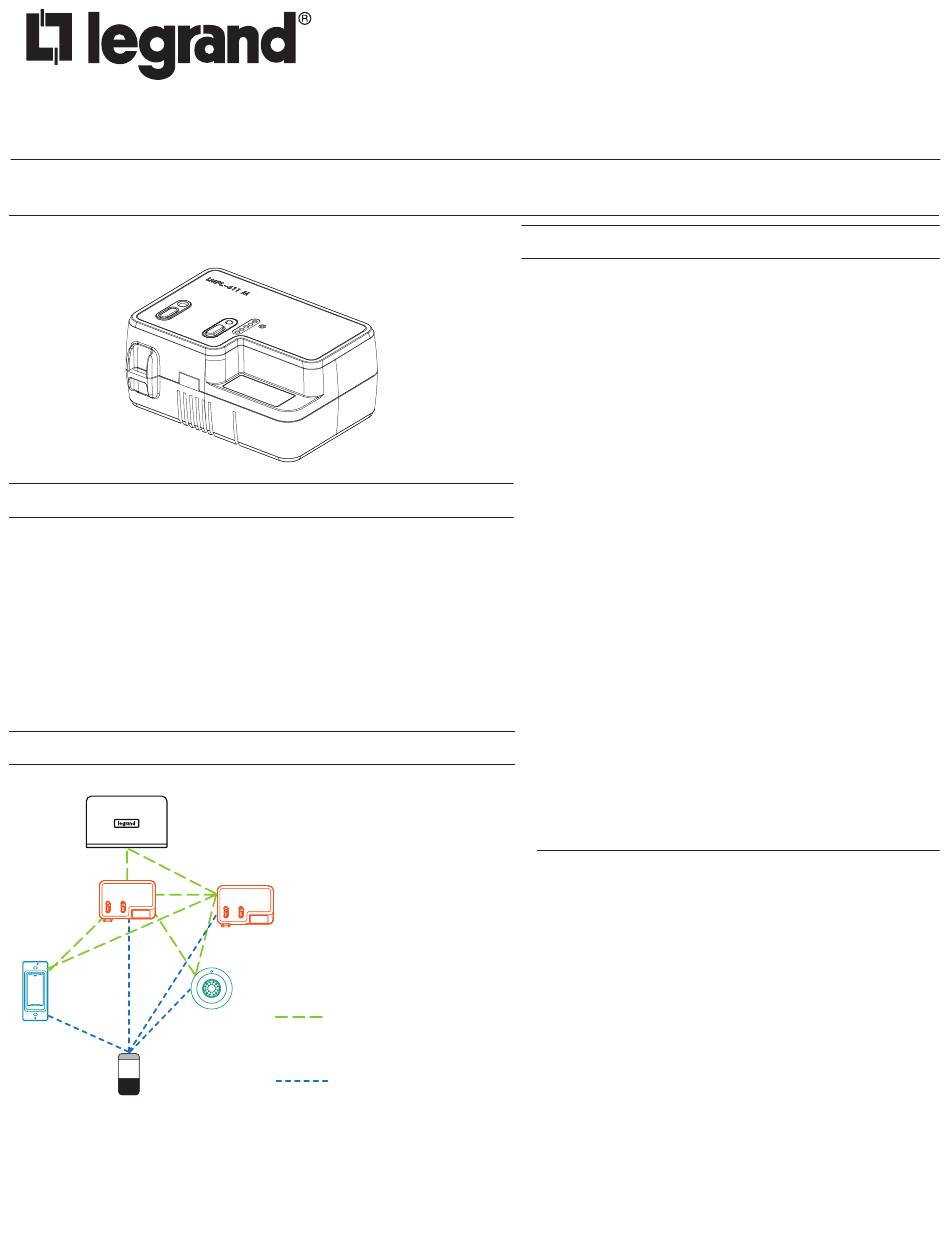

WIRELESS DLM CONNECTION
LMBR-650
For networking
and managing
rooms, floors,
and building
(optional)
LMPL-611-20M
Wireless
Wireless
Sensor and/or
Dimmer and/or
Photosensor
Scene Switch
Sensor Params
LMPX-600
LMPC-600
Mode Auto On
Blink On
Load Type Dim
DLM Configuration App
on a mobile device
® low energy technology wireless
LMRC 600 Series
Room Controller
Distance Recommendations:
30' max between LMPL-611-20M
and mobile device
60' max. between LMPL-611-20M
and and battery device
10' minimum and 100' maximum
between LMBR-650 and LMPL-611-20M
IPv6 Mesh for
networking of DLM
rooms and devices
over 6LoWPAN
Bluetooth low energy
communication for
mobile App support
Wattstopper
DLM Enhanced Digital Single Relay Plug Load Controller with IPv6/Bluetooth
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
Input Voltage ...................................................120VAC, 50/60Hz
Maximum Duplex Receptacle Rating ..................... 120VAC, 20A
Metering capability provides power monitoring within 2% of the true
value.
Environment:
Operating Temperature ................32° to 131°F (0° to 55°C)
Storage Temperature ................. 23° to 176°F (-5° to 80°C)
Relative Humidity ..................... 5 to 95% (non condensing)
Connection to DLM Network ................................................Wireless
Wireless Radio ............................Single, Concurrent 802.15.4 and
Wireless Communication
IPv6 Mesh range between wire powered devices
(LMBR-650, LMBC-650, LMRC-6xx, LMPL-6xx) ....up to 100 ft.
IPv6 Mesh range for battery powered devices ...........up to 60 ft.
Bluetooth low energy range ..................................up to 30 ft.
Wireless Encryption ............................. AES-128 bit symmetric key
Other
Compatible Border Router: ........... Wattstopper LMBR-650
BACnet IPv6 capable
Compliance/Regulatory
UL2043 Plenum rated, FCC, RoHS,
Bluetooth certified
UL and cUL listed (E101196)
Installation shall be in accordance with all applicable
regulations, local and NEC codes. Wire connections shall be
rated suitable for the wire size employed.
For Class 2 DLM devices and device wiring: To be connected to a
Class 2 power source only. Do not reclassify and install as Class
1, or Power and Lighting Wiring.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed including the following:
a. READ AND FOLLOW ALL SAFETY
b. Do not use outdoors.
c. Do not mount near gas or electric heaters.
d. Equipment should be mounted in locations and
e. The use of accessory equipment not
f. Do not use this equipment for other than intended
g. Installation should be performed by qualified
SAVE THESE INSTRUCTIONS
®
SPECIFICATIONS
....................................... Bluetooth Low Energy, 2.4GHz
INSTRUCTIONS.
at heights where it will not readily be subjected to
tampering by unauthorized personnel.
recommended by the manufacturer may cause an
unsafe condition.
use.
service personnel.
®
