LEGRAND Mallia Senses Quick Start Manual

Mallia Senses with Netatmo
TM

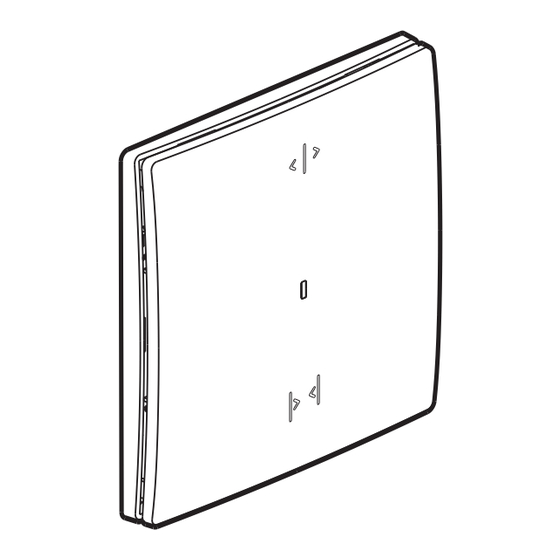

Connected wireless control for roller shutters/curtains
1. USE
Zone or centralised control for wired roller shutters/curtains switches.
Requires the prior installation of a starter pack for connected installation or a Control modul "with Netatmo".
• Fixes directly on the wall or screws onto a flush-mounting box. Multi-gang versions can be combined with other wiring accessories.
• Fits on furniture (movable).
Can control up to 20 roller shutters/curtains switches.
2. RANGE
Connected wireless control for roller shutters/curtains.
Complete delivered with protection film and a battery.
Equipped with an LED indicator (configuration) and a RESET button (hidden) used to return
to factory settings.
Repositionable self-adhesive fixings (supplied).
3. DIMENSIONS (mm)
B
A
86
Technical data sheet: F03718EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
Description
C
B C
86 12
Silver
2 815 18DS
4. OPERATION
STOP
Updated:
Cat. Nos: 2 815 18DS/MB/MW
Black White
2 815 18MB 2 815 18MW
Open/Up when pressed at the top:
- short press opens/raises to the top
- long press opens/raises until released
LED indicator:
- useful during installation
- when pressed, burst flashes red if the battery
power is low
Close/Down when pressed at the bottom:
- short press closes/lowers to the bottom
- long press closes/lowers until released
RESET button
used to return to factory settings
Created: 19/04/2022
1/2
