STEP 5
Fix the latch with the wood screws, with the bevel
towards the doorframe.
STEP 6
Fit the latch support post to the front plate, in the
inner hole A for a right hand hung door, and the inner
hole B for a left hand hung door. (See diagram C).

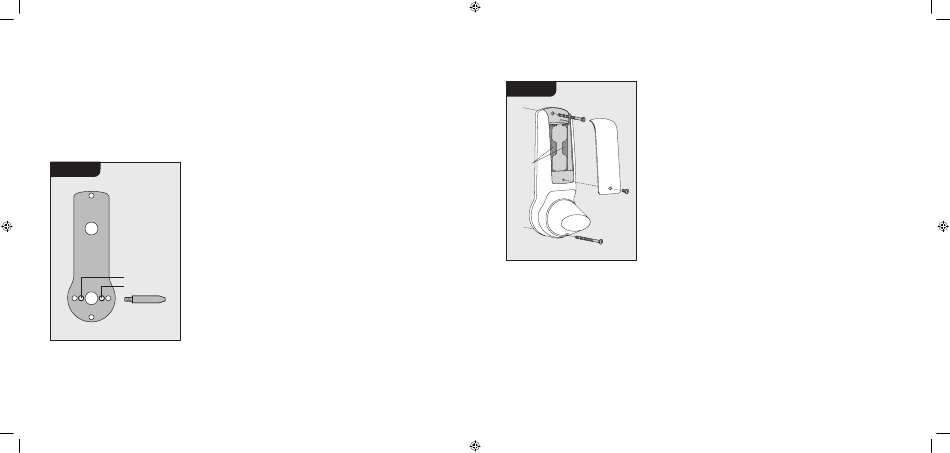

Diagram C
A
B
STEP 7
Fit self-adhesive gaskets to the front and back
plates. The gaskets provide friction against the door
so that it is not necessary to over tighten the fixing
bolts to stabilise the lock plates.
6
2K_4K Installation.indd 6-7
STEP 8
Cut one of the fixing bolts to the required length; i.e.
door thickness plus approximately 20mm. If correct
cut another to the same length.
STEP 9
Insert the spindle into the latch with the spring
facing the front plate. Position the front plate over
the spindle and against the door, passing the cables
through the door, and locating the support post into
the latch.
STEP 10
Position the backplate over the spindle and connect
the two mating cables. Pass the fixing bolts through
the door into the front plate and secure the lock to
the door.
STEP 11
Fit the handles and secure them with the set screws.
Turn the key clockwise in the cylinder, and back, and
remove it. The outside handle will now retract the latch
without using a code. Check that the handles and the
latch all work freely. If they do not work freely then
loosen the fixing bolts slightly and adjust the position
of the front and back plates until the handles and the
latch work satisfactorily. Tighten the fixing bolts, and
check the function again. DO NOT OVERTIGHTEN
as this may cause distortion of the lock and the door
structure and lead to poor performance.
Diagram D
Batteries
STEP 12
BEFORE CLOSING THE DOOR
Turn the key anti-clockwise in the cylinder and
remove it. The handle will NOT now retract the latch
without first entering a valid code. Enter the factory
Master Code, #1234, using the badge bar as #. The
Blue LED will light and turning the handle will retract
the latch.
Replace the battery cover.
STEP 13
Fitting the strike plate
Position the strike plate on the doorframe so that it
lines up with the flat of the latchbolt, and NOT the
plunger.
Mark the positions of the fixing screws and draw
around the aperture of the strike plate.
Chisel out the aperture to 15mm deep to receive the
latchbolt. Fix the strike plate to the surface of the
frame using only the top fixing screw.
Gently close the door and check that the latchbolt
enters the aperture easily, and is held without too
much 'play'.
When satisfied, draw around the outline of the strike
plate, remove it and cut a rebate to enable the
faceplate to lie flush with the surface.
Re-fix the strike plate using both screws.
NB.
The plunger beside the latchbolt deadlocks it
to protect against manipulation or 'shimming'. The
strike plate must be accurately installed so that the
plunger CANNOT enter the aperture when the door is
closed, even when it is slammed shut.
