Codelocks Support
CL600 - Code Change Guide
Many Codes to Choose From

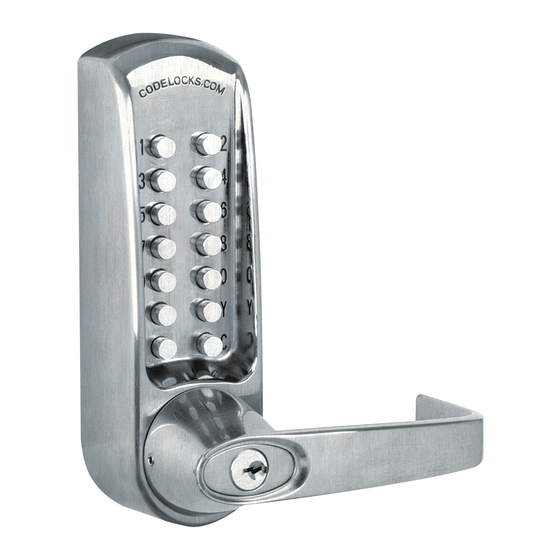

The CL600 range has been designed so the code can be changed on the door in seconds. The code chamber
(models 600, 610 and 620) consists of 13 buttons and a 'C' button which is used to re-set the code chamber after
an incorrect entry, and must always be used as the first digit of a code. Buttons may only be used ONCE in a
code. For example 1212 is NOT possible.
The CL600 ranges code or combination, can be entered in any order or sequence; eg 1234 can be 4321 or 1342 or
whatever sequence is most convenient to remember.
With 13 buttons, a total of 8,191 different codes are available, any of which can be entered in any sequence.
The total is arrived at as follows:
Note: Models 605, 615 and 625 have 12 coded buttons giving 4,095 different codes. Most people will set the
code in the range of 4 to 7 digits, and the total number of codes in this range is 5,434. The lock is supplied with a
random factory set code (see code card). At any time this can be quickly changed to a new code of your choice.
Typically codes are 4 to 7 digits long. Shorter codes are possible (1-2 digits) but are not recommended.
Passage Free Mode Models 605, 615 and 625
The above feature can be identified with a black dot on the 'Z' button.
To set the lock in passage free mode enter the code followed by the 'Z' button. The lock will now be in free
passage mode.
To put the lock back into code access only press the passage set 'Z' button once followed by the C button.
https://codelocks.zohodesk.eu/portal/en/kb/articles/cl600-code-change-guide
Advertisement
Table of Contents
Related Manuals for CODELOCKS DND-DDCL600PKBKMG
Summary of Contents for CODELOCKS DND-DDCL600PKBKMG
- Page 1 Codelocks Support CL600 - Code Change Guide Many Codes to Choose From The CL600 range has been designed so the code can be changed on the door in seconds. The code chamber (models 600, 610 and 620) consists of 13 buttons and a ‘C’ button which is used to re-set the code chamber after an incorrect entry, and must always be used as the first digit of a code.
- Page 2 6. Now turn the key clockwise for right hand hung doors, or anticlockwise for left hand hung doors retracting the latch which will relock the code buttons. Fig 3. 7. Return the key to centre and remove. 8. Before closing door test code. https://codelocks.zohodesk.eu/portal/en/kb/articles/cl600-code-change-guide...
- Page 3 Removal of front load cylinders to repin or replace with cylinders by a different manufacturer. 1.Remove handle and cylinder cover. 2.Turn Key 90° anticlockwise and remove the cylinder from boss https://codelocks.zohodesk.eu/portal/en/kb/articles/cl600-code-change-guide...
- Page 4 Note that the CL600 uses a 6 pin screw cap cylinder. If using a screw cap cylinder other than supplied, the tail piece from the Codelocks screw cap cylinder will need to be fitted as follows: 4.Hold down the control pin in the end of the cylinder and unscrew the cap.
- Page 5 If the key inserts and turns OK, but is difficult to remove, then the cap may be too loose. Tighten up the cap one notch at a time. Adjust the cap until the key inserts, turns and removes easily. Dimensions https://codelocks.zohodesk.eu/portal/en/kb/articles/cl600-code-change-guide...
- Page 6 Prevents accidental lock-ins. ■ Deadbolt thrown by key to lock out code users after work hours. ■ Key will retract the latchbolt giving access for admin functions. ■ D bl E li d ith 3 k li d https://codelocks.zohodesk.eu/portal/en/kb/articles/cl600-code-change-guide...
- Page 7 No maintenance of the working parts is necessary. DO NOT OIL. To maintain the finish the lock should be cleaned regularly with a soft cloth. A silicone spray or similar should be used to provide a protective film against grit and grime. CC-CL600-0812 © 2019 Codelocks Ltd. All rights reserved. https://codelocks.zohodesk.eu/portal/en/kb/articles/cl600-code-change-guide...
