OPERATIONS CHECK

Remove the battery cover and install the 4 x AA
batteries, connect the front and backplate via
their connecting cables: The lock will beep to
signal that power is 'ON'.
Enter the factory master Code #1234. Note: The
badge bar at the bottom of the keypad acts as the
# button. The Blue LED will burn to signal that
the code is valid.
For 4010 and 2010 locks check that the latchbolt
moves freely when pressed in. Check that the
latchbolt retracts when the spindle is inserted
through the follower and turned. Press and hold
in the plunger beside the main bolt and confirm
that the main bolt cannot now be pushed in; i.e. it
is deadlocked. This feature prevents the latchbolt
being easily manipulated to open a locked
door. For latchbolt only versions check that the
latchbolt moves freely when pressed.
4
2K_4K Installation.indd 4-5
SPECIAL FIXING NOTE
REMOTE RELEASE OPTION
The lock has 2 sets of terminals for remote release,
labelled REM 1 and REM 2 on the printed circuit
board in the front housing. Cables are provided with
the lock for these connections.
REM 1
is intended for use where there is a need
to allow a visitor to open the door after having been
identified by intercom or by sight from within. REM 1
would be connected to a pushbutton on a reception
desk, or to the appropriate button on an intercom.
Pushing the button would cause the Blue LED to light
and would release the lock for the normal set time.
REM 2
is intended for use where there is a need for
the door to be released by an alarm system, such
as a fire alarm. This enables emergency personnel
to rapidly check that no one is trapped/overlooked
in classrooms, wards, guest rooms, etc. during an
emergency evacuation, or during a fire drill. When
activated by an alarm REM 2 will maintain the
unlocked condition for 30 minutes. During this time
the red LED will flash once every second and sound
an audible alarm to indicate the unlocked condition.
The lock will automatically revert to normal after
30 minutes. If required Program 11 can be used to
revert the lock to normal before the 30 minute period
has finished.
INSTALLATION 4010 & 2010 LOCKS
All door locks should be installed with a degree of
precision to ensure that all components are vertically
and horizontally accurate in relation to each other,
and in relation to the door.
STEP 1
Lightly mark a height line on the edge and both faces
of the door and on the door jamb, to indicate the top
of the lock when fitted.
Crease the template along one of the dotted line
at 60mm and tape it to the door with the top in line
with the height line. Mark the 5 x 16mm holes and
2 x 10mm holes.
Mark the centre of the door edge on the Centre Line
of Latch. Remove the template and apply it to the
other side of the door, aligning it accurately with the
height line and the first centre line of latch mark.

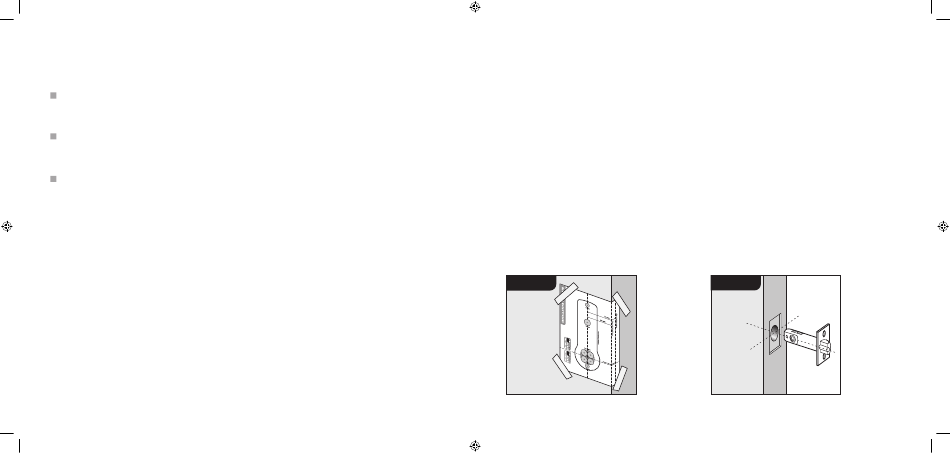

Mark the holes again. (See diagram A).
Diagram A
STEP 2
Keeping the drill level and square, drill a 25mm hole
on the centre of the door edge to accept the latch.
STEP 3
Keeping the drill level and square, drill the 5 x
16mm holes and 2 x 10mm holes. Drill from both
sides of the door to increase accuracy and to avoid
splintering of the door face.
STEP 4
Put the latch into the hole and, holding it square to
the door edge, draw around the faceplate. Remove
the latch and score the outline with a Stanley knife
to avoid splitting when chiselling. Chisel a rebate
allowing the latch to fit flush to the surface. (See
diagram B).
Diagram B
