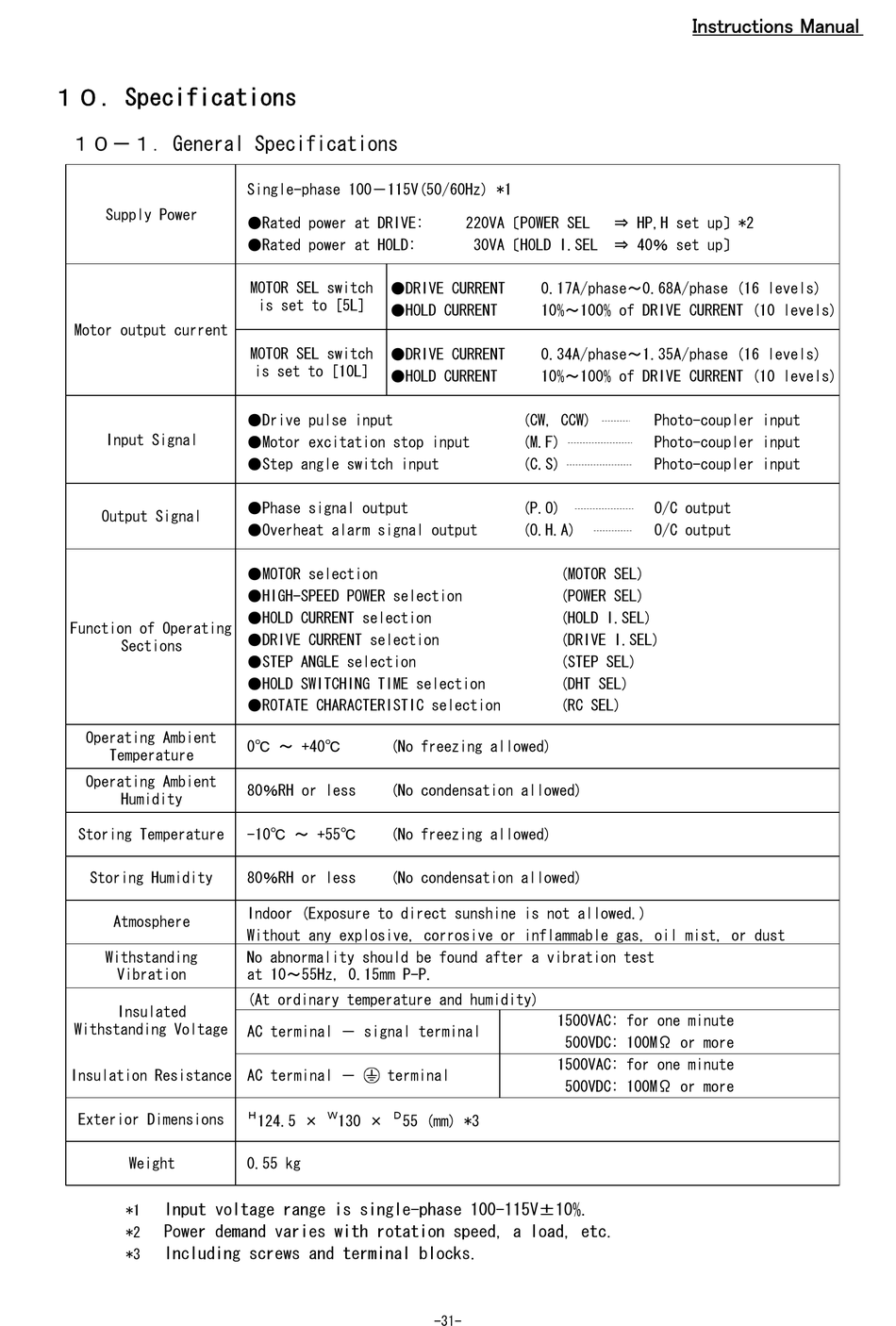

10.Specifications
10-1.General Specifications
Supply Power
Motor output current
Input Signal
Output Signal
Function of Operating
Sections
Operating Ambient
Temperature
Operating Ambient
Humidity
Storing Temperature
Storing Humidity
Atmosphere
Withstanding
Vibration
Insulated
Withstanding Voltage
Insulation Resistance
Exterior Dimensions
Weight
Input voltage range is single-phase 100-115V±10%.
*1
Power demand varies with rotation speed, a load, etc.
*2
Including screws and terminal blocks.
*3
Single-phase 100-115V(50/60Hz) *1
●Rated power at DRIVE:
●Rated power at HOLD:
MOTOR SEL switch
●DRIVE CURRENT
is set to [5L]
●HOLD CURRENT
MOTOR SEL switch
●DRIVE CURRENT
is set to [10L]
●HOLD CURRENT
●Drive pulse input
●Motor excitation stop input
●Step angle switch input
●Phase signal output
●Overheat alarm signal output
●MOTOR selection
●HIGH-SPEED POWER selection
●HOLD CURRENT selection
●DRIVE CURRENT selection
●STEP ANGLE selection
●HOLD SWITCHING TIME selection
●ROTATE CHARACTERISTIC selection
0℃ ~ +40℃
(No freezing allowed)
80%RH or less
(No condensation allowed)
-10℃ ~ +55℃
(No freezing allowed)
80%RH or less
(No condensation allowed)
Indoor (Exposure to direct sunshine is not allowed.)
Without any explosive, corrosive or inflammable gas, oil mist, or dust
No abnormality should be found after a vibration test
at 10~55Hz, 0.15mm P-P.
(At ordinary temperature and humidity)
AC terminal - signal terminal
AC terminal -
terminal
124.5 ×
130 ×
55 (mm) *3
0.55 kg
220VA〔POWER SEL
30VA〔HOLD I.SEL ⇒ 40% set up〕
0.17A/phase~0.68A/phase (16 levels)
10%~100% of DRIVE CURRENT (10 levels)
0.34A/phase~1.35A/phase (16 levels)
10%~100% of DRIVE CURRENT (10 levels)
(CW, CCW)
(M.F)
(C.S)
(P.O)
(O.H.A)
(MOTOR SEL)
(POWER SEL)
(HOLD I.SEL)
(DRIVE I.SEL)
(STEP SEL)
(DHT SEL)
(RC SEL)
1500VAC: for one minute
500VDC: 100MΩ or more
1500VAC: for one minute
500VDC: 100MΩ or more
-31-
Instructions Manual
⇒ HP,H set up〕*2
Photo-coupler input
Photo-coupler input
Photo-coupler input
O/C output
O/C output
