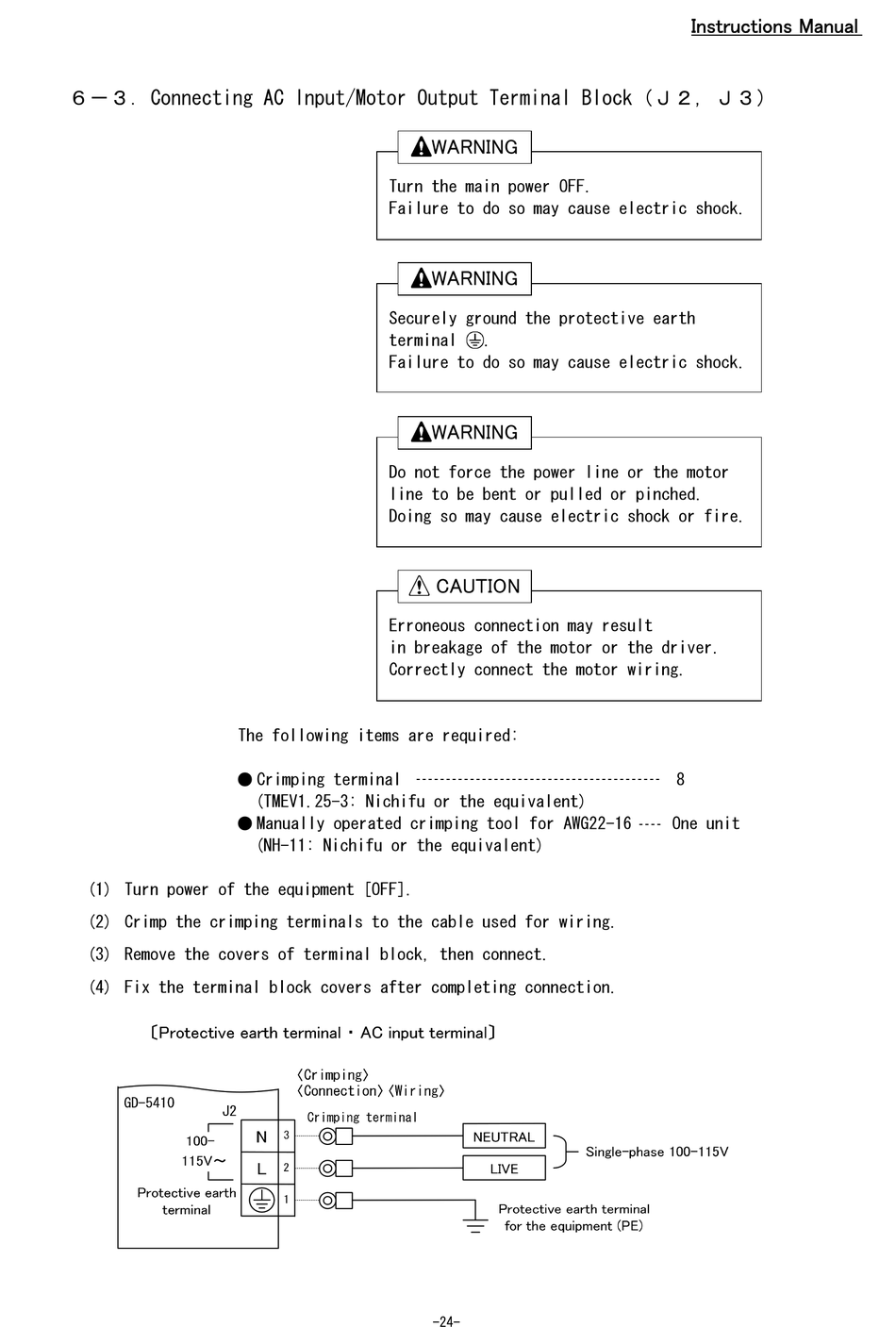

６－３．Connecting AC Input/Motor Output Terminal Block（Ｊ２，Ｊ３）
● Crimping terminal
● Manually operated crimping tool for AWG22-16
(1) Turn power of the equipment [OFF].
(2) Crimp the crimping terminals to the cable used for wiring.
(3) Remove the covers of terminal block, then connect.
(4) Fix the terminal block covers after completing connection.
Turn the main power OFF.
Failure to do so may cause electric shock.
Securely ground the protective earth
terminal
Failure to do so may cause electric shock.
Do not force the power line or the motor
line to be bent or pulled or pinched.
Doing so may cause electric shock or fire.
Erroneous connection may result
in breakage of the motor or the driver.
Correctly connect the motor wiring.
The following items are required:
(TMEV1.25-3: Nichifu or the equivalent)
(NH-11: Nichifu or the equivalent)
 I
 I
 .
 I
 I
