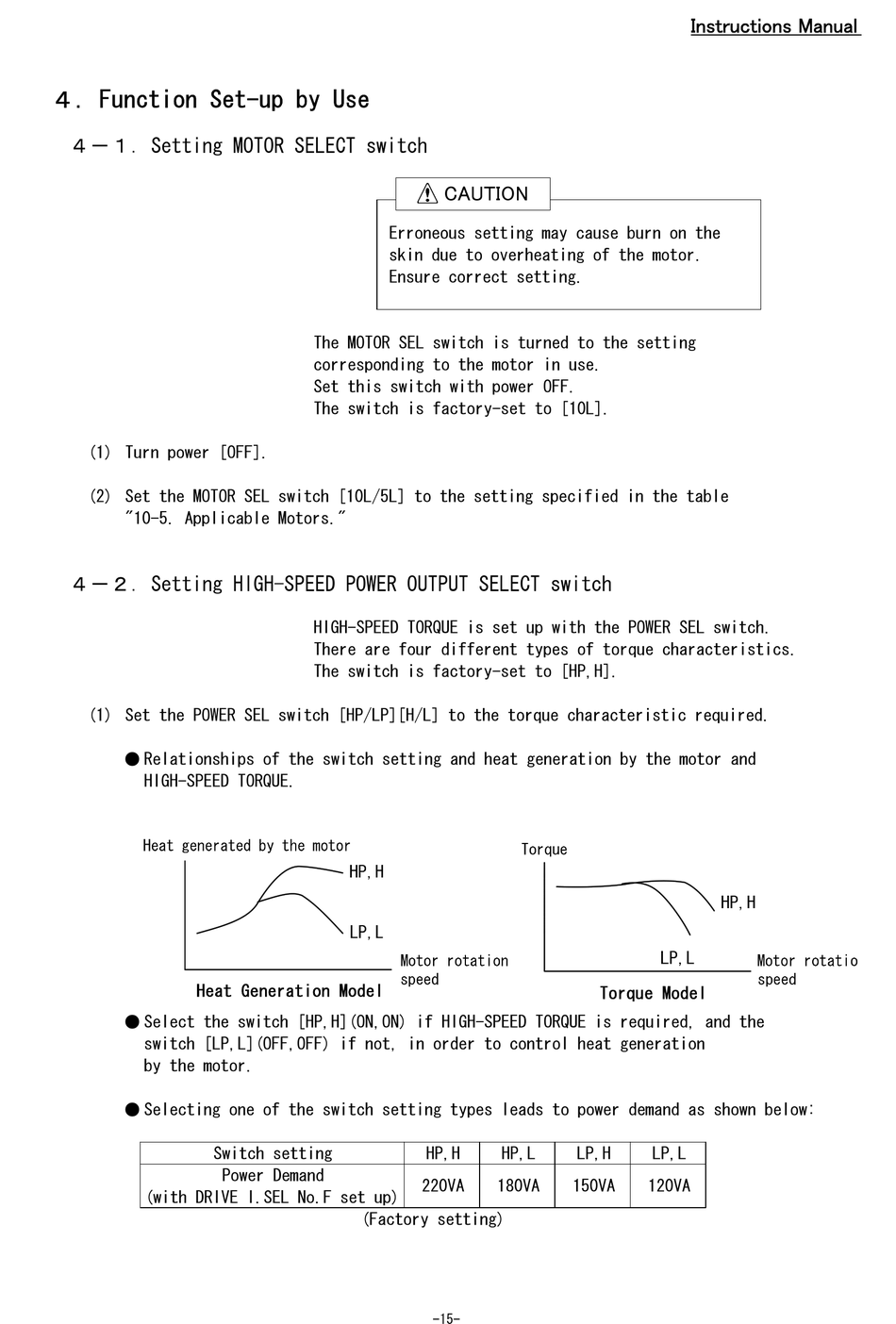

４．Function Set-up by Use
４－１．Setting MOTOR SELECT switch
(1) Turn power [OFF].
(2) Set the MOTOR SEL switch [10L/5L] to the setting specified in the table
"10-5. Applicable Motors."
４－２．Setting HIGH-SPEED POWER OUTPUT SELECT switch
(1) Set the POWER SEL switch [HP/LP][H/L] to the torque characteristic required.
● Relationships of the switch setting and heat generation by the motor and
HIGH-SPEED TORQUE.
● Select the switch [HP,H](ON,ON) if HIGH-SPEED TORQUE is required, and the
switch [LP,L](OFF,OFF) if not, in order to control heat generation
by the motor.
● Selecting one of the switch setting types leads to power demand as shown below:
Switch setting
(with DRIVE I.SEL No.F set up)
Erroneous setting may cause burn on the
skin due to overheating of the motor.
Ensure correct setting.
The MOTOR SEL switch is turned to the setting
corresponding to the motor in use.
Set this switch with power OFF.
The switch is factory-set to [10L].
HIGH-SPEED TORQUE is set up with the POWER SEL switch.
There are four different types of torque characteristics.
The switch is factory-set to [HP,H].
Power Demand
(Factory setting)
 I
HP,H HP,L LP,H
220VA 180VA 150VA
-15-
Instructions Manual
LP,L
120VA
