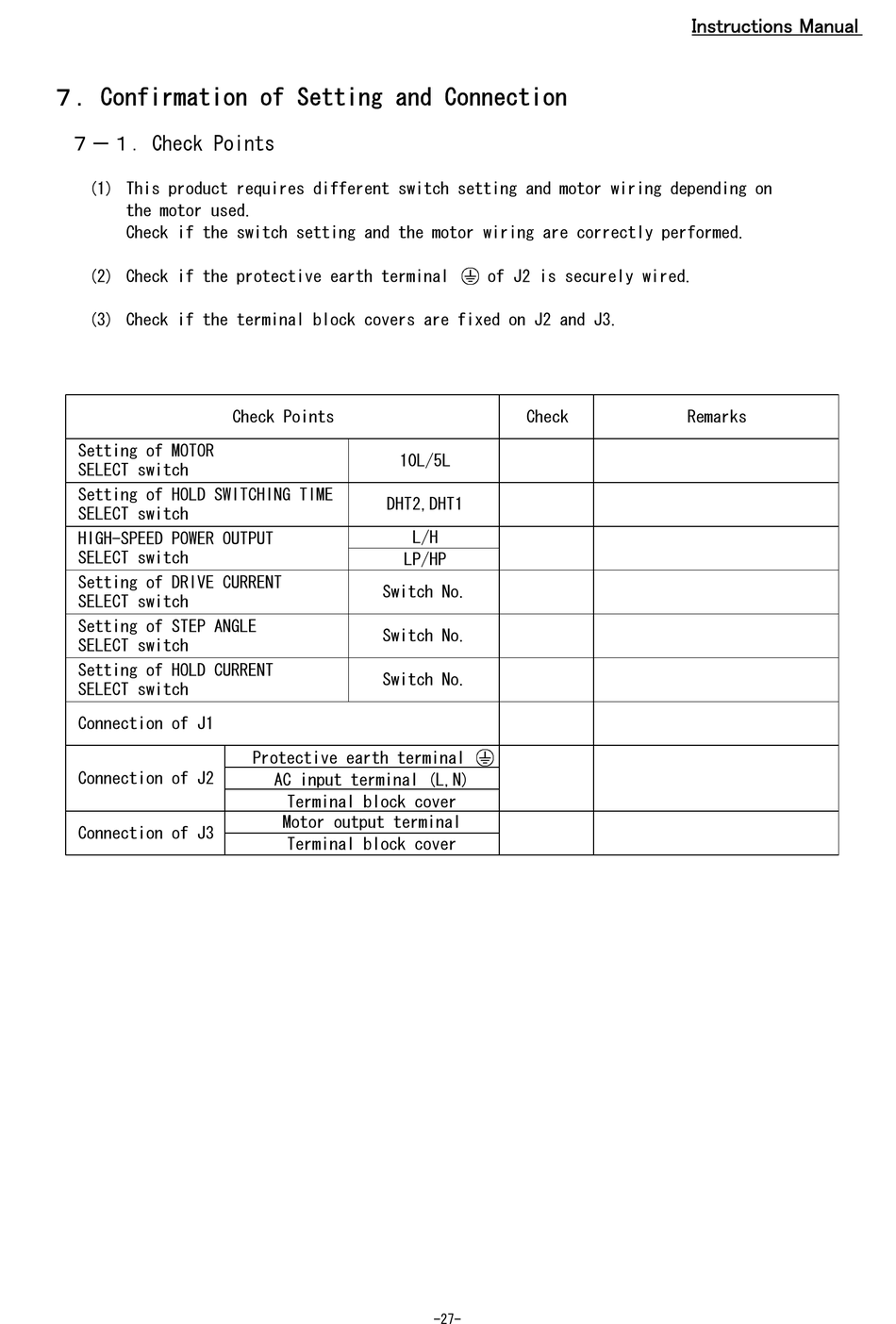

７．Confirmation of Setting and Connection
７－１．Check Points
(1) This product requires different switch setting and motor wiring depending on
the motor used.
Check if the switch setting and the motor wiring are correctly performed.
(2) Check if the protective earth terminal
(3) Check if the terminal block covers are fixed on J2 and J3.
Setting of MOTOR
SELECT switch
Setting of HOLD SWITCHING TIME
SELECT switch
HIGH-SPEED POWER OUTPUT
SELECT switch
Setting of DRIVE CURRENT
SELECT switch
Setting of STEP ANGLE
SELECT switch
Setting of HOLD CURRENT
SELECT switch
Connection of J1
Connection of J2
Connection of J3
Check Points
10L/5L
DHT2,DHT1
Switch No.
Switch No.
Switch No.
Protective earth terminal 
AC input terminal (L,N)
Terminal block cover
Motor output terminal
Terminal block cover
 of J2 is securely wired.
Check
L/H
LP/HP
-27-
Instructions Manual
Remarks
