６．Connection
６－１．Overview of Connection Configuration
● Connect only one motor to one driver.
● Use twisted pair wire for the CW/CCW input signal line.
● Provide shielding for the signal line where considerable noise is generated.
● Use the wire material of the characteristic that is difficult to burn.
● Provide shielding for the motor line if it generates significant noise.

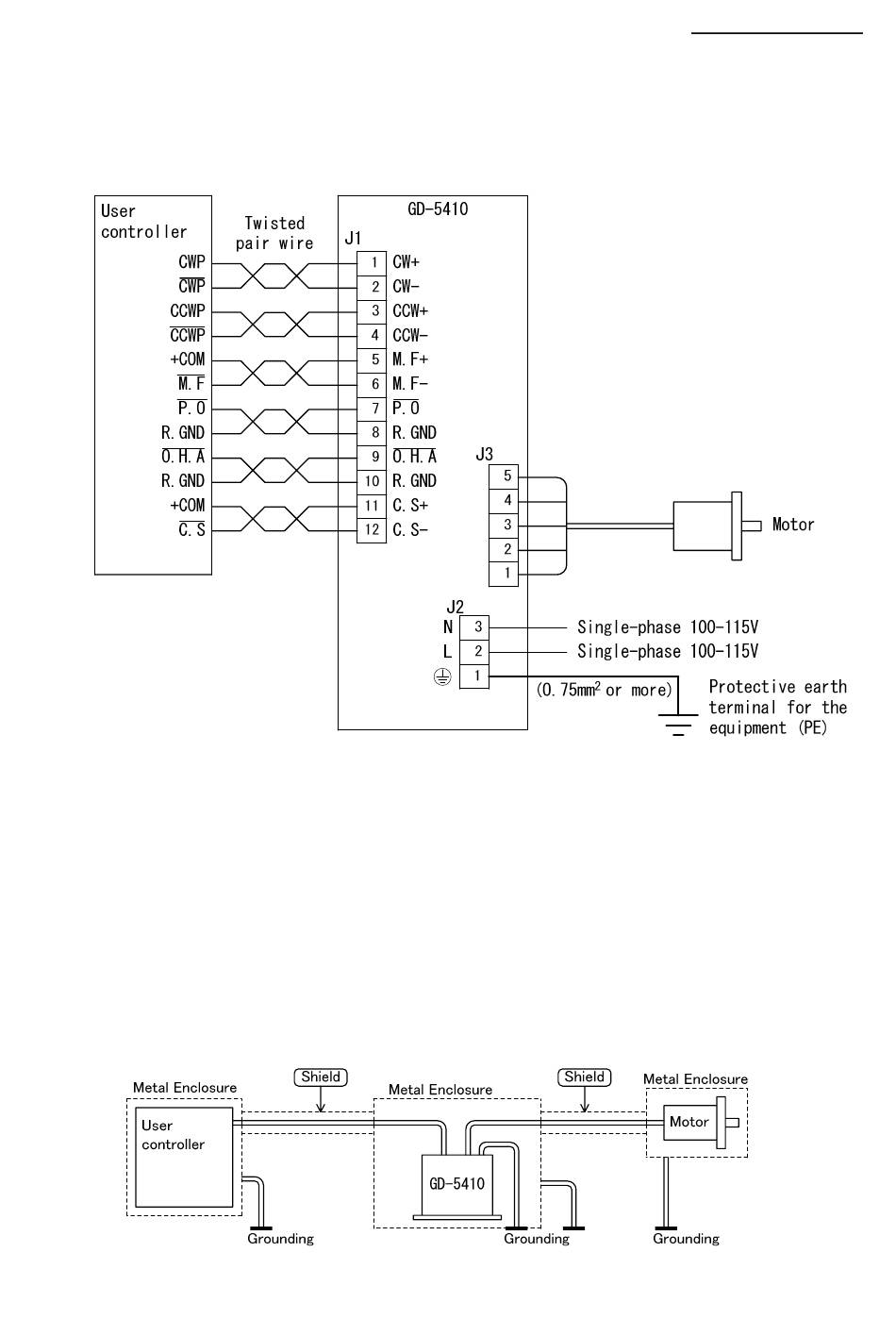

〔Example configuration〕
The metallic enclosure and shielded wires work to shield noise.
